Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
Specifications
Brand Name :
CNC Hardware
Model Number :
MW8G12Z-SS
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD60000/ UNIT
Payment Terms :
T/T
Supply Ability :
3 UNITS per month
Delivery Time :
60 work days
Packaging Details :
wooden case
MACHINE :
METALIC PRODUCTS PROCESS
MOTOR :
SERVO MORTOR
MATERIAL :
CAST STEEL FRAME STRUCTURE
STRUCTURAL STYLE :
VERTICAL TYPE ROTARY TRANSFER
EFFICENCY :
HIGH WORKPIECE RATIO
APPLICATION FIELD :
BRASS VALVE BODY AND PIPE FITTINGS
Description

Key components and equipments are mounted as big brand below,

Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings MachiningRotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings MachiningRotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings MachiningRotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining

Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining

  • Can fix 5 to 10 spindles, good at process of brass fittings in filed of brass valves, and play a good role of valves body process, make very high workpiecce ratio.
  • The vertical indexing chuck machine combines precision chucks with the indexing accuracy and reliability of the Hirth ring.
  • OEM or customizable are available to customer products specific requirement, supply customer specific solution to their products. The Vertical Rotary Transfer Machine Tools VR-950 fix world leading brand on key components.

Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining

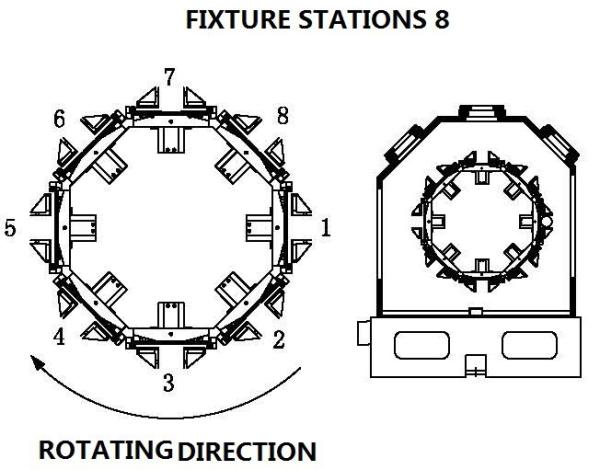

NUMBER LEFT LAYOUT TOP LAYOUT RIGHT SIDE LAYOUT
1 FEED/PICK MATERIALS

2

1 spindle, hydraulic motor for drilling roughly

 2 spindle, hydraulic motor for drilling roughly

3

3 spindle, hydraulic motor for hole precise boring

① oil cylinder for feeding/picking

4

4 spindle, hydraulic motor for hole precise boring

② oil cylinder for feeding/picking

5

5 spindle,hydraulic motor for groove boring

 6 spindle hydraulic motor for hole precise boring
6 7 spindle, hydraulic motor for groove boring
7

8 spindle, hydraulic motor for hole drilling

 9 spindle, hydraulic motor for groove boring
8

10 spindle, hydraulic motor for hole precise. Outer threads tapping

 11 spindle, hydraulic motor for groove boring

Rotary Transfer Machine 950 for Valves Body And Brass Pipe Fittings Machining
