40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
Specifications
Place of Origin :
China
Brand Name :
KLKJ
Certification :
ISO9001:2008
MOQ :
1PC
Price :
Negotiation
Packaging Details :
Export Box
Delivery Time :
7~20 days
Payment Terms :
TT IN ADVANCE
Supply Ability :
FOB Shenzhen
Description

40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle




PRODUCT DESCRIPTION

MODEL: KLB80
REPLACE FOR: PRECISE TL60
SPEED: 5000- 40,000 rpm
Bearing type: Ball bearing
MAX Speed range: 5,000 - 40,000 rpm
Power: 3.3kW
MAX Voltage: 380V
TORQUE: 800g
Vibration: 1.0MM/S
Static Runout: <=8µm
BODY SIZE: Ø 80
Tool & tool change form: Is020;atc


Competitive Advantage:

LOW STATIC
LOW DYNAMIC RUN OUT
HIGH TOUQUE
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING


Application

MACHINING FOR NON-FERROUS MATERIAL; CNC ENGRAVING


Quick Detail:

MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

Bearing type

KLB80

SPEED: 5000- 40,000 rpm

MACHINING FOR NON-FERROUS MATERIAL; CNC ENGRAVING

Ball bearing



SPECIFICATION:

MAX Speed range

5,000 - 40,000 rpm

Air flow

60(1/MIN)

power

3.3kW

Coolant

Water oil

Coolant water temperature

20+2

MAX Voltage

380V

Bearing type

BALL BEARING

Static runout

<=8µm

TORQUE

800g

Stator 3 phase resistance

1.8 /1.8/ 1.8±0.2Ω

Vibration

1.0MM/S

Tool & tool change form

Is020;atc

BODY SIZE

Ø 80


For any other parameter pl. feel free to contact us.

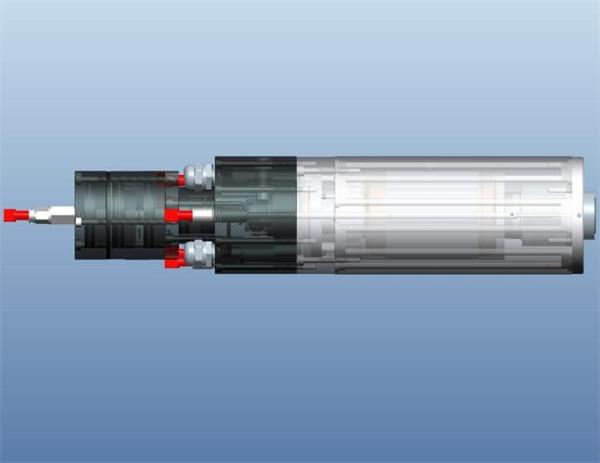

Spindle drawing
40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle
