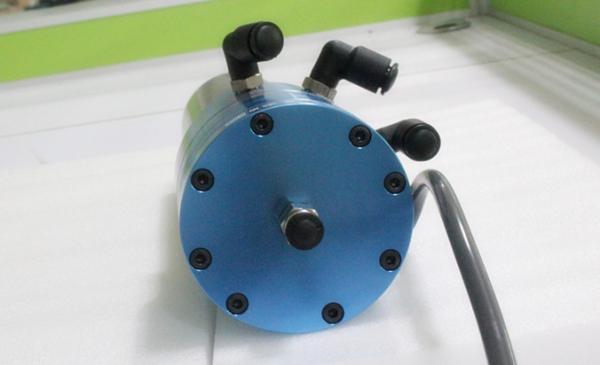

0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
Specifications
Brand Name :
KLKJ
Model Number :
KL-100HAT
Certification :
ISO9001:2008 ; UKAS; IAF
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500 PCS per month
Delivery Time :
10-15 WORKING DAYS
Packaging Details :
STANDARD BROKEN-RESISTANCE PACKAGE
Material :
Steel,Aluminium,Rubber, Copper
Color :
Black or Blue(anodized), customerized
Bearing :
Air Bearing
Collet diameter :
3.175mm or 6 mm
Description

Product Detail Index:

MODEL: KL-100HAT
NAME :Air BEARING SPINDLE
SPEED RANGE: 18,000 - 100,000 rpm
BEARING TYPE: Air Bearing
SPINDLE WEIGHT: 3.8kg
COLLET SIZE: ø3.175 or ø6

Air Pressure: ≥6 kgf/cm²
Motor power: 0.85KW
Coolant: Water or oil
Coolant water temperature: 20℃+2
Voltage: 40-180V
MAX. CURRENT (A): 4A
Dynamic Runout: ≤8μm
Vibration: 1.0MM/S
Temperature sensor ohms Ω: R= 60±3% AT 25℃
TORQUE(g): ø3.175≥600g


SPECIFICATION:

SPEED RANGE(RPM)

18,000-100,000

FREQUENCY (HZ)

300-1667

MOTOR TYPE

THREE PHASE

MOTOR OUTPUT POWER

0.8KW

TORQUE(g)

ø3.175≥600g

VOLTAGE (V)

40-180

COLLET CLAMPING DIAMETER (mm)

ø3.175—ø6

COOLING TEMPERATURE(°C)

20

BEARING TYPE

AIR BEARING

AIR PRESSURE (kg/cm2)

≥6

RUNOUT (μm)

≤8

VIBRATION (mm/s)

≤1.0

THREE PHASE RESISTANCE (Ω)

2.1±0.2

COLLET LOCK TYPE

DEAD COLLET

SPINDLE WEIGHT (kg)

Around 3.8

MAX. CURRENT (A)

< 4




Competitive Advantage:

LOW STATIC RUN OUT
LOW DYNAMIC RUN OUT AND VIBRATION
STABLE CHARACTER AND LONG LIFE TIME
SUITABLE FOR ALUMINIUM POLISHING INDUSTRY AND SOFT METAL MACHINING
THIS KIND OF SPINDLE HAS ALREADY BEED EXPORTED TO KOREA ,JAPAN AND SO ON.
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolantaluminium engraving field
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolantaluminium frame polishing field

Quick Detail:

MODEL

NAME

DESCRIPTION

Application

Machine reference

Bearing type

KL-100HAT

SPINDLE

SPEED RANGE: 18,000 - 100,000 rpm
High precision ALUMINIUM
POLISHING

aluminium frame polishing and engraving

TALIANG; LISONG

Air Bearing


0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
0.85KW 100,000 MAX RPM Soft Metal Polishing Spindle Water Coolant
We will do our best to satisfy our customer with good quality production and patient.
