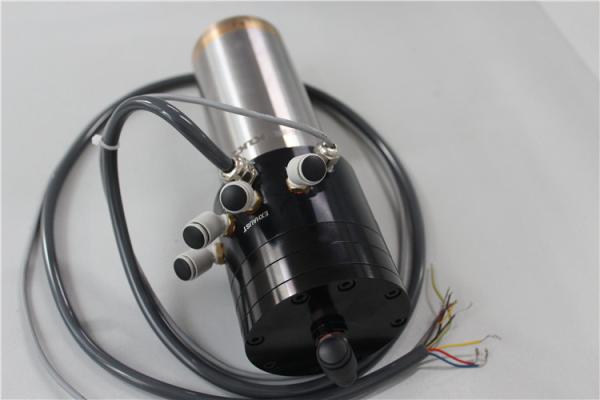

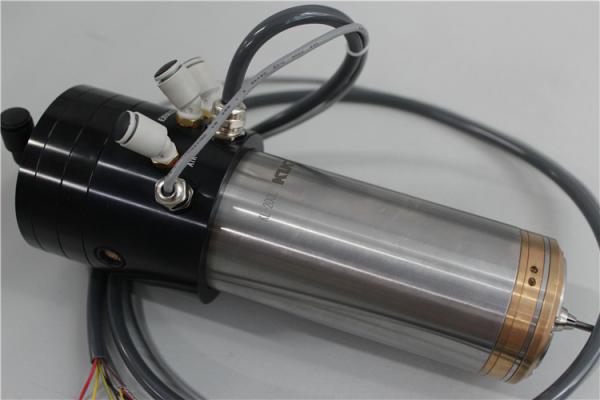

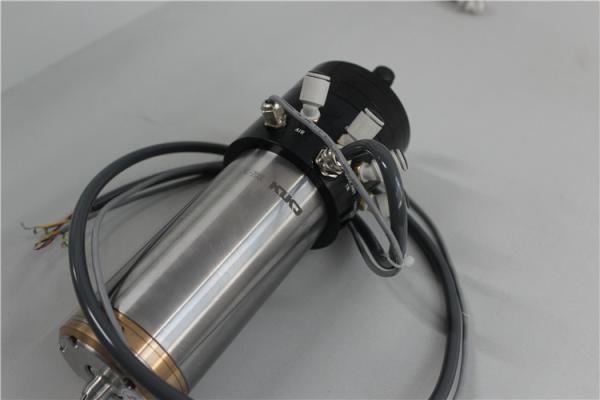

0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
0.9KW 200K Rpm Water / Oil Cooled Air Bearing CNC High Speed Spindle Replace WW D1822 Motor Spindle
Specifications
Brand Name :
KLKJ
Model Number :
KL200L
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1PC
Price :
Negotation
Payment Terms :
T/T;WESTERN UNION
Supply Ability :
500SET/MONTH
Delivery Time :
10-25 WORKING DAYS
Packaging Details :
STANDARD BROKEN-RESISTANCE PACKAGE
Material :
Steel, Copper, etc.
Color :
Silver(Body) and Blue/Black(cylinder)
Description



Compatible D1822 200,000RPM KL200L CNC High Speed Spindle PCB Drilling



Quick Detail :

MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

KL200L

D1822

SPEED RANGE:
20,000 - 200,000 rpm
Ø6.35mm-0.05mm
precision drilling

Static Run Out:<2µm

Dynamic Run Out:<8µm

Vibration:0.5 MM/S

KLINGINBERG
PLURITEC
HITACHI
LENZ
ANDERSON ….



PRODUCT DESCRIPTION

MODEL : KL200L
REPLACE FOR : D1822 SPEED RANGE:20,000 - 200,000 rpm

BEARING TYPE : Air bearing

SPINDLE WEIGHT : 4.3kg

COLLET SIZE : Ø1/8”

BODY SIZE : Ø 61.9

Max power : 0.9KW

Air Pressure : 6.0 -6.5kgf/cm²

Coolant : Water oil

Fixed voltage : 215V

Fixed current : 4A

FREQUENCY (HZ) : 334-3570

PTC SENSOR (Data pl. inquiry)


Competitive Advantage :
LOW STATIC
LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING


APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE : Ø6.35mm-0.05mm

MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….


SPECIFICATION :

Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<8µm

Collet torque(N.cm)

>15.2( 1/8”)

Vibration

0.5MM/S

Temperature sensor ohms KΩ

R=0.10±5% AT 25℃

Open air pressure

<5.0kg/cm²

Close air pressure

>2.5 kg/cm²

Coolant water flux

>0.8(L/min)

Coolant oil flux

>1.5(L/min)

Air consume flux at 20krpm

58(L/min)

Radial load

6.0kgf



Spindle outline drawing
