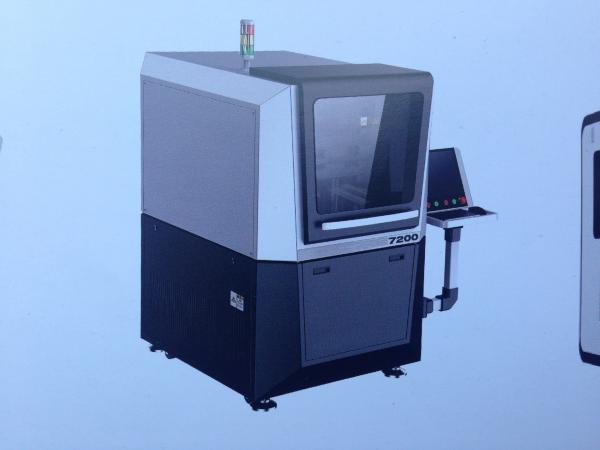

Small cutting size fiber laser cutting machine with table size 600*400mm

1. Machine general introduction

ST-FC6060 500W fiber laser cutting machine designed with Europe safety standard, small cutting size, save operation space.

(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.

(2) Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.

(3) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.

2. Machine main features:

2.1. The machine uses Imported YYC precision gear rack transmission, the maximum positioning speed of up to 60 m / min, high processing efficiency, machine baed with the moving beam as a whole welded structure, roughing after annealing, and then the vibration aging treatment, can completely eliminate the stress of welding and machining, good rigidity, high accuracy can be maintained for a long time does not deform.

2.2. X, Y, Z axis are imported from Japan YASKAWA servo motors, high-precision, high- speed, high-torque, high inertia, stable performance and durable. Ensure the machine's high speed and acceleration, machine adopt the centralized lubricating device is used to lubricate the transmission parts automatically by the system control, which ensures the accuracy and the service life of the transmission parts

2.3. Adopt the imported cutting head, replace the focus lens is more convenient, effectively avoid the operator to replace the cutting head or lens caused by time wasting.

2.4. Adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.

2.5.There is no contact for work piece and laser head, so there is no tool wear. No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.

2.6. This machine's cutting size can be customized depend on customer's requirements.

3. Application materials

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

4. The machine’s main technical parameters

5. Cutting speed table (only for reference, the actual speed depend on the actual materials)

6. Machine’s main configurations

7. The laser cutting samples:

8. The Fiber laser cutting machine packing and delivery by 20 feet container
