Small Cutting Size 650 Watt YAG Laser Cutting Machine for Metal Processing
Small Cutting Size 650 Watt YAG Laser Cutting Machine for Metal Processing
Specifications
Brand Name :
Suntop laser
Model Number :
QY-YC0505
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
USD35,120,000-USD38,560/set
Payment Terms :
T/T or Western union
Supply Ability :
1700 sets/year
Delivery Time :
30 working days after receive the down payment
Packaging Details :
Packing in special film which suitable for sea shipping
Product name :
YAG laser cutting machine
Effective Cutting size :
500*500 mm ( other size can be custmized )
Real laser power :
650W
Laser wavelength :
1064nm
Laser type :
YAG
Power consumption :
20KW
Power supply :
Three Phase 380V/50Hz
Processing material :
stainless steel, carbon steel, Aluminum, brass etc
Description

Small Cutting Size 650 Watt YAG Laser Cutting Machine for Metal Processing

Basic informations:

Small cutting size YAG laser cutting machine adopts xenon lamp as excitation source to output high energy density laser beam which is focusing on the surface of the workpiece, making the area lighted by the light spots partially and instantly melt and vaporized.

Automatic cutting is realized through moving the light spot lighting positions by numerical control mechanical system controlled by the computer. It is a kind of high-tech equipment integrating laser technology, numerical control technology and precision mechanical technology.

Application:

YAG laser cutting machine can cut all the metals and pipes, especially suitable for cutting stainless steel plates, iron plates, aluminum materials and copper plates.


This kinds of YAG laser cutting machine is widely applied in metal plate, hardware product, steel structure, precision machinery, automotive fitting, eyeglass, jewelry, nameplate, advertisement, artware, electronics, toy, packaging and other industries.


Features:

High precision, applied for fine cutting of precision fittings, various artistic characters and paintings;
Rapid cutting, practical speed is above 100 times of line cutting;


Small thermal affection area, difficult for deformation; flat and beautiful cutting seams, requiring no additional machining;


Adopting special laser cutting software, able to edit and instantly process the drawings and characters, flexible processing, simple operation;


Stable performance guarantees continuous production. Solid YAG laser is one of the most stable and mature products in laser field.


Adopting cutting head with proprietary intellectual rights, featuring collision protection and all-around protection.

Parameters of QY-YC0505 YAG Laser Cutting Machine
Model QY-YC0505
Maximum laser Power 650W
Laser Wavelength 1064nm
Max. Cutting Thickness 9mm
Max. Cutting Speed 3000mm/min
Minimum Line Width 0.15mm
Repeated Positioning Precision ±0.05mm
Pulse frequency 1-500HZ
Max. Cutting size 500x500mm
Control System Professional CNC software
Aiming Position Red light
Power Consumption of Whole Machine ≤20KW
Power 380V/50Hz/60Hz/50A
Cooling Mode Water cooling
Host System (L×W×H) 1800×900×1450
Cooling System
750×560×900

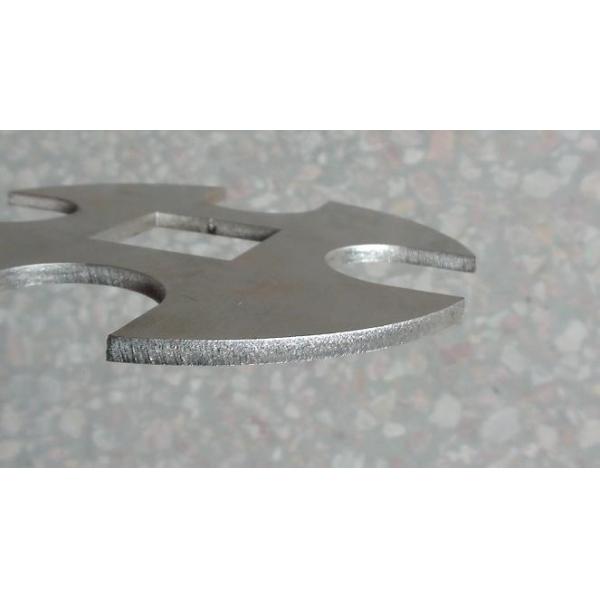

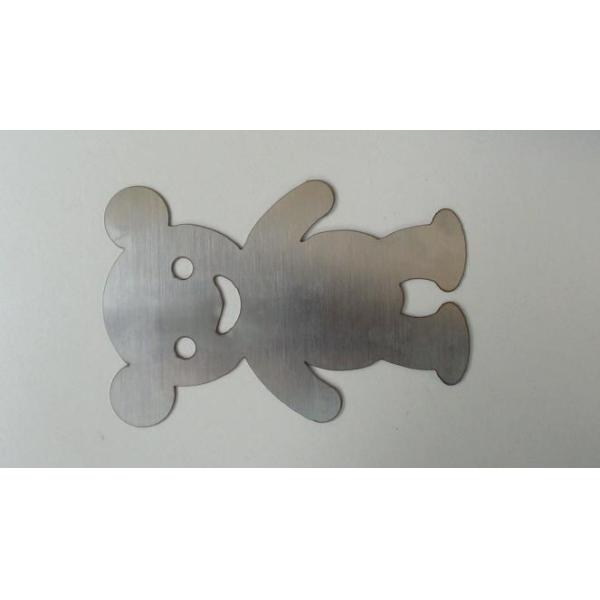

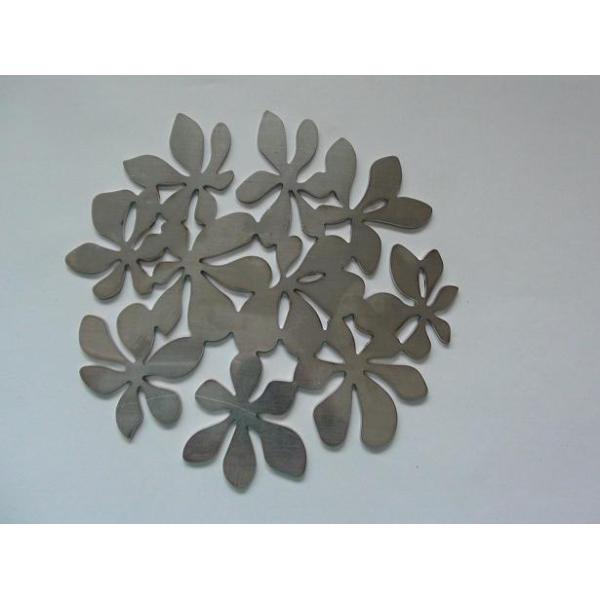

The real laser cutting samples of the 650W YAG laser cutting machine:

Small Cutting Size 650 Watt YAG Laser Cutting Machine for Metal Processing

Small Cutting Size 650 Watt YAG Laser Cutting Machine for Metal Processing

Small Cutting Size 650 Watt YAG Laser Cutting Machine for Metal Processing
