Metal Sheet CNC Laser Cutting Equipment with Laser Power 1200 watt , 380V / 50HZ

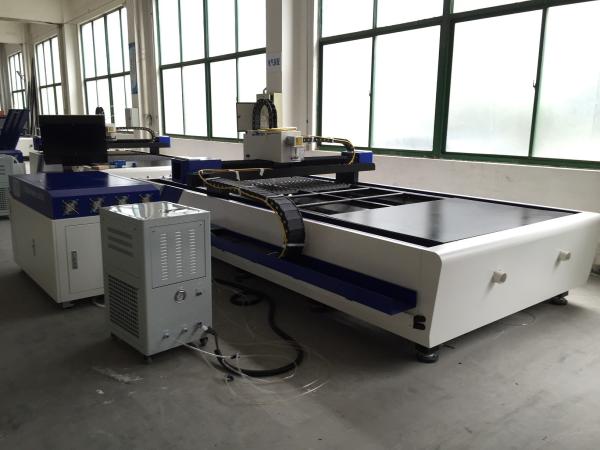

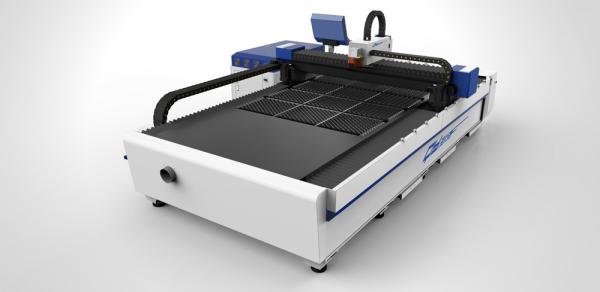

1. Machine general introduction

QY-FC3015 1200W CNC laser cutting equipment using the original fiber laser source RAYCUS, automatic cutting is controlled by digitalized mechanic system, this machine has condensed the technologies of laser, digital, and precise mechanics.

The laser cutting head can be adjusted through the Z axis, the cutting head travelling area from 0-100mm, the laser cutting head has the automatic tracking functions which can agree with the different metal wave surface ,using the gantry working table and the whole steel welding structure which make the machine very stable movement and almost no distortion. .

It's strongly recommended in the year 2015 .

It’s the China’s price, but European quality .

2. Machine main features:

This CNC laser cutting equipment mainly for metals processing industry, with laser power 1200W or more, the X, Y, Z axes are imported from Japan servo motor, high-precision, high- speed, high-torque, high inertia, stable performance and durable. Ensure the machine's high speed and acceleration .

Machine bed with the moving beam as a whole welded structure, roughing after annealing, and then the vibration aging treatment, can completely eliminate the stress of welding and machining, good rigidity, high accuracy can be maintained for a long time does not deform.

Our 1200W CNC laser cutting equipment uses a moving gantry structure, imported high-precision screw and linear guide, smooth transmission, high precision, it's suitable for precision metal processing industry.

We adopt the CNC laser cutting control special function modules, powerful, human-machine interface, easy to operate based on the Windows operating system, fiber laser cutting machine CNC system integrated, independent research and development of personalized nesting software, CNC cutting machine to achieve “full-time cutting, efficient cutting and high - nesting rate cut " core technology is the fundamental guarantee of effective material savings, improve cutting efficiency and reduce the no good cutting products.

We choose the Japan Panasonic high precision A5 series servo motors and drive, so this machine is A top quality machine, it have much difference compare with other kinds of CNC fiber laser cutting equipment.

It has the imported high - precision electronic control proportional valve, precise control of the cutting auxiliary gas pressure, in order to achieve the best cutting results and imporve the customer's products quality grade.

3. Application materials
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

4. Cutting speed table (only for reference, the actual speed depend on the actual materials)

5. The machine’s main technical parameters

6. Machine’s main configurations

7. The spare parts free provided from supplier with the machine together.

※ Protection lens 2 pieces
※ Nozzle 2 pieces
※ Allen wrench 1 set
※ Cleaning paper 1 set
※ User menu 1 set

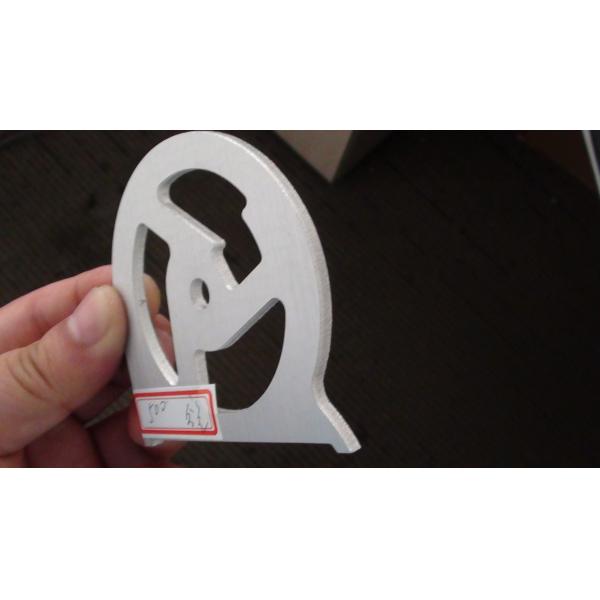

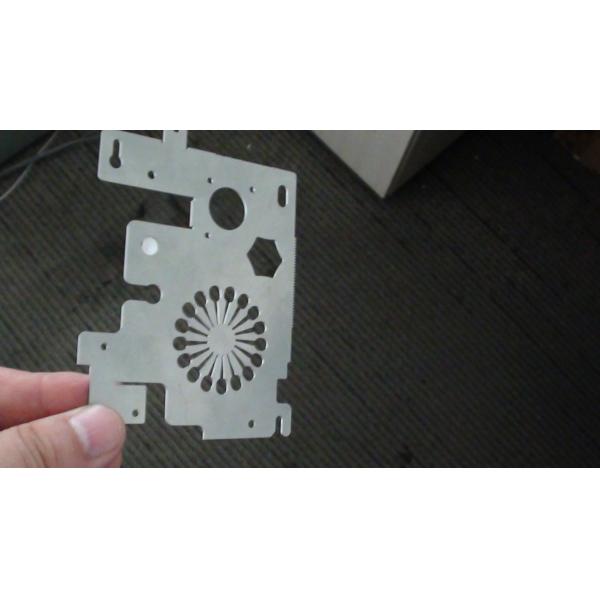

8. The laser cutting samples:
