500W small size fiber laser cutting machine for stailess steel and brass cutting

New model

1. Machine general introduction

Machine designed with small cutting size 600*600mm, high precision, dual drive transmission, Japan panasonic high precision serve motors,low cost: Save energy and protect environment.

Low maintenance: fiber line transmission no need reflect lens, save maintenance cost, machine with very smaller focus diameter and high work efficiency, high quality, high precision and high speed cutting;

This small size laser cutting machine very easy to operate: fiber line transmission, no adjustment of optical path, super flexible optical effects: compact design, compact and easy to flexible manufacturing requirements, economic price but top quality, especiall for Advertising industry, machine running is very stable: adopting the top world import fiber lasers, stable performance, and key parts can reach 100,000 hours, high efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency,excellent beam quality:

2. Machine main features:

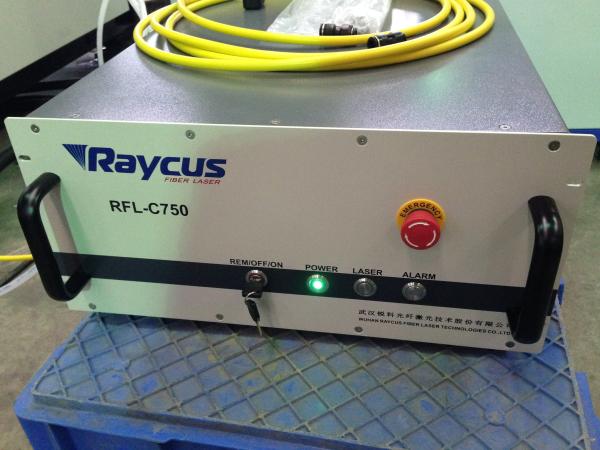

Germany technology fiber laser generator with great and stable performance to have lifespan over 100,000 hours,machine cutting Software is very flexible , it with imported high - precision electronic control proportional valve, precise control of the cutting auxiliary gas pressure, in order to achieve the best cutting results.

High cutting quality and efficiency with cutting speed up to 30mm/min and beautiful, smooth cutting edge, Stable and reliable ligh path system and control system,

Our 500W CNC fiber laser cutting equipment uses a moving gantry structure, imported high-precision screw and linear guide, smooth transmission, high precision , the X, Y, Z axes are imported from Japan servo motor, high-precision, high- speed, high-torque, high inertia, stable performance and durable.

We ensure the machine's high speed and acceleration, bed with the moving beam as a whole welded structure, roughing after annealing, and then the vibration aging treatment, can completely eliminate the stress of welding and machining, good rigidity, high accuracy can be maintained for a long time does not deform, we adopt the laser cutting control special function modules, powerful, human-machine interface, easy to operate based on the Windows operating system, machine with auto-seek edge function and auto alarm functions.

3. Application materials

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

4. Machine application field

This kind of small size cutting machine is widly applied to metal-sheet processing, stainless steel decorative engineering.

Advertising trademark and advertising character, high/low voltage electrical cabinet, kitchenware, metal crafwork.

Aauto parts, farm machinery, medical instrument, sports equipment,environmental protecion equipment, elvvator apparatus, central air conditioning, metal craftwork, hardeware, tool and gauge etc...

5. Cutting speed data (only for reference, the actual speed depend on the actual materials)

6. The machine’s main technical parameters

7. Machine’s main configurations

8. The spare parts free provided from supplier with the machine together.

※ Protection lens 2 pieces

※ Nozzle 2 pieces

※ Allen wrench 1 set

※ Cleaning paper 1 set

※ User menu 1 set

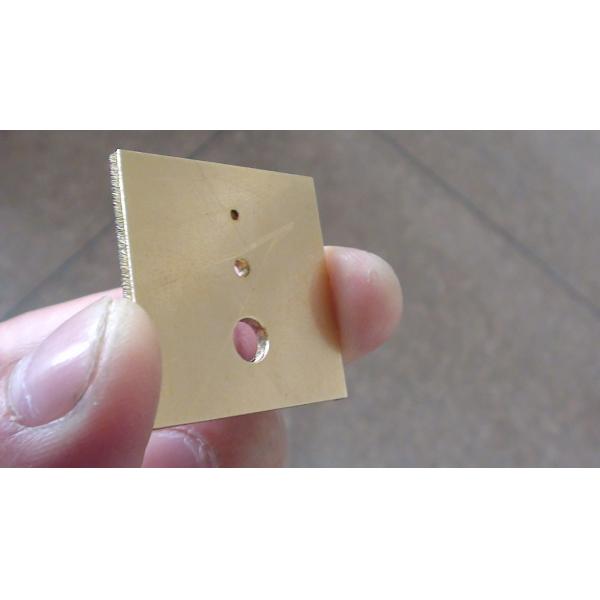

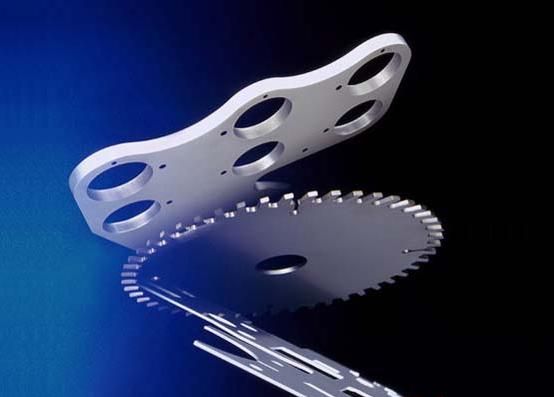

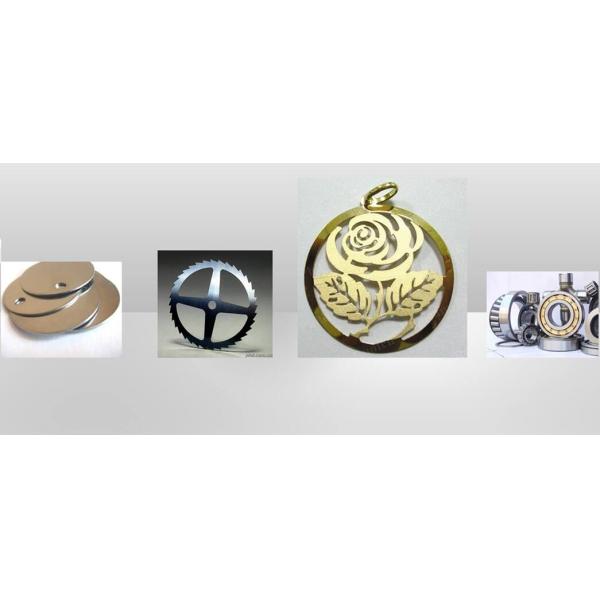

9. The laser cutting samples:
