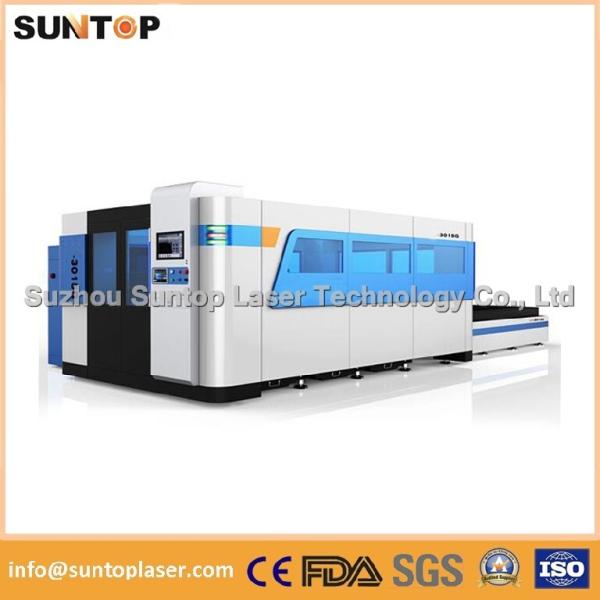

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Mild steel , aluminium , brass and copper fiber cnc laser cutting machine
Specifications
Brand Name :
Suntop laser
Model Number :
ST-FC3015-2000MT
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
USD161,100-173,100/set
Payment Terms :
T/T or Western union, L/C
Supply Ability :
70 sets/year
Delivery Time :
36 working days after receiving the down payment
Packaging Details :
Packing in special file which suitable for sea shipping then put into one 40 FR and one 20'GP containers
Product name :
Fiber laser cutting machine
Effective Cutting size :
1500*3000mm ( dual exchanger table )
Real laser power :
1000W ( other power can be optional)
Laser wavelength :
1064nm
Laser type :
USA nLIGHT Fiber laser
Power consumption :
less than 14KW
Focus system :
Automatic following and detective
Power supply :
Three Phase 380V/50Hz
Processing material :
stainless steel, carbon steel, Aluminum, etc
Machine size :
9145*3710*1980mm ( L*W*H)
Working table :
Double exchange tables
Machine Structure :
Full sealed cabinet with laser protection
X axis stroke :
1550mm
Y axis stroke :
3100mm

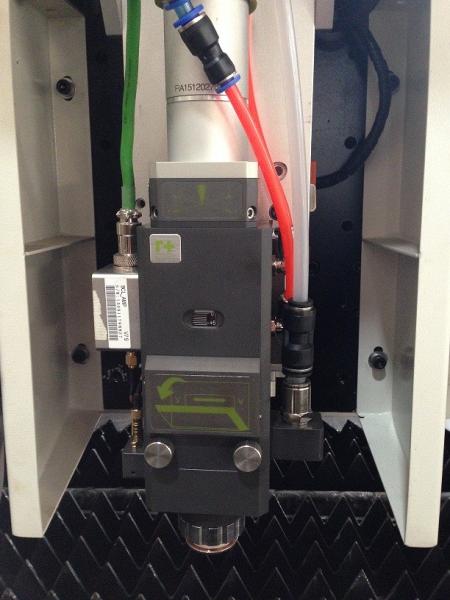

Laser cutting head :
Swiss Raytools
Description

Mild steel, stainless steel, aluminium, brass and copper fiber laser cutting machine

(dual-exchange table model)

Highly automation:


This machine adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.

High cutting efficiency:


Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control.

You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting,there is no contact for work piece and laser head, so there is no tool wear.

Machine No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.

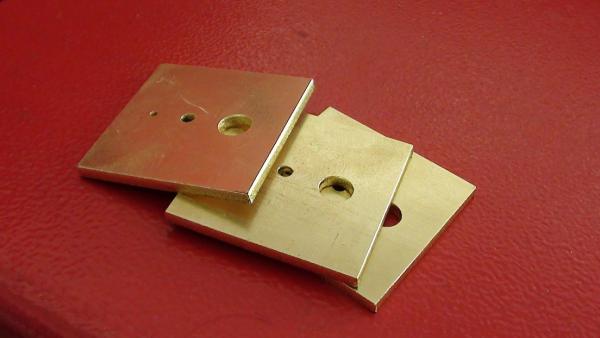

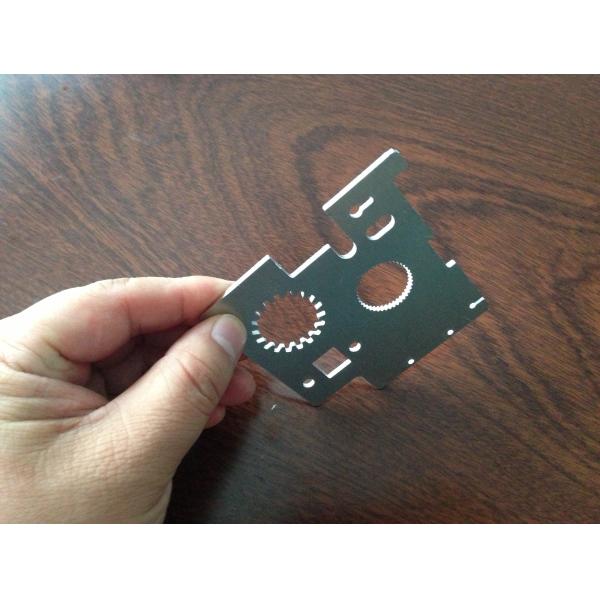

Machine real cutting samples display for reference

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine

The advanced performance of our 2000W high power fiber Laser Cutting Machines

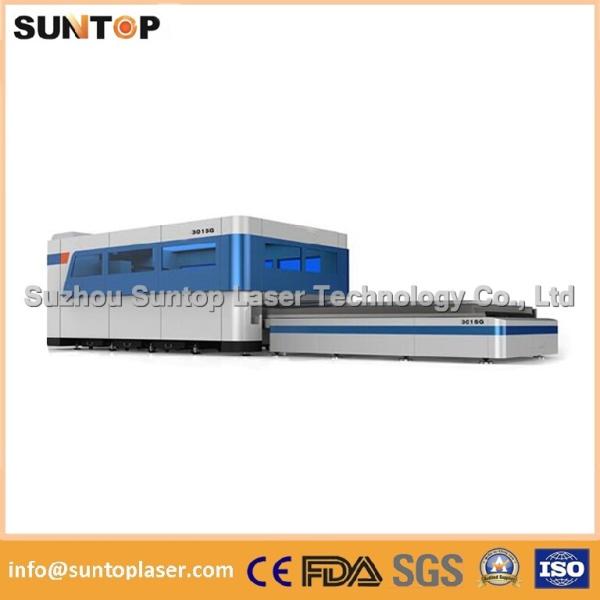

Suntop laser switching flatforms fiber laser cutting machine is one of laser equipments that manufacturered with typical fiber laser cutting machine performance advantages, it used for high efficiency cutting demand, For high power fiber laser cutting machine, we adopt the imported USA nLIGHT brand fiber laser generator which the lifetime up to 100,000 hours, with the capacity to cut all kinds of metals, including some high reflective materials, such as aluminium, brass, copper etc....

This machine adopt a double-platform interchangerable, to ruduce time in the cutting process unloading, so as to enhance cutting efficiency, while standard closed-en housing, effectively prevent ash and dust, isolate noise interference, the water chiller has good safety protection function, such as over temperature, lack phase,pressure, waterbreak, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.


The machine tool includes loading area and processing area, standard configurationis changeable working

tables, auto change the workpiece between processing area andloading area by motor, convenient to upload

and download,With the design of changeableworking table, could prepare the next uploading while processing,

highly improved working efficiency, the leading cutting processing, which can meet all kinds of shapes precisde cutting, such as: 4mm thick carbon steel can be achieved 2mm diameter hole cutting.

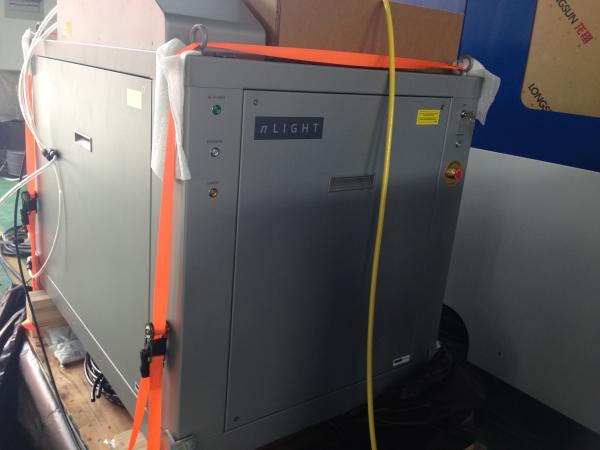

2000W USA nLIGHT fiber laser generator photo:

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine

Mild steel , aluminium , brass and copper fiber cnc laser cutting machine

Machine Applicable Industry

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

Machine main specifications:

Model ST-FC3015-1000 ST-FC3015-1500 ST-FC3015-2000
Laser source medium Fiber laser with lifetime more than 100,000 hours
Cutting range(L*W) 3000mm × 1500mm 3000mm × 1500mm 3000mm × 1500mm
Z axle stroke 150 mm
Max cutting speed 40m/min 42m/min 45m/min
Max positioning speed 140m/min
Machine accelerated speed 1G
Cooling form water cooling
Laser wavelength 1070nm
Output power of laser source 1000W 1500W 2000W
Min. cutting gap ≤0.1mm ≤0.125mm ≤0.125mm
Positioning accuracy of X, Y and Z axles ±0.03 mm
Repeated positioning accuracy of X, Y and Z axles ±0.02 mm
Thickness of cutting material
(according to material)		 0.2-8mm 0.2-12mm 0.2-20mm
Drive model Imported servo motor
Power requirement 380V,50/60Hz
Working temperature 5ºC-45ºC
Continuous working time 24 Hours
Machine weight About 7950Kgs
Outer dimension 9028mm x 3741mm x 1910mm ( L*W*H)
Total protection level of power supply IP54

>>> Fiber Laser Cutting the Difference with other Laser Sources Comparing sheet

Model of Laser Source Fiber laser CO2 laser Disc laser
Electro-optical Conversion Efficiency 30% 10% 15%
Max. Output 50Kw 20Kw 8Kw
BPP(4/5Kw) <2.5 6 8
Life of Diode Pumped >100,000 NA. 10,000
Occupied Area(4/5Kw) <1M2 3M2 >4M2
Maintenance no need need Often
Soft Processing more suitable unsuitable suitable
Stability best good good
Absorption rate%--steel 35 12 35
Absorption rate%--aluminum 7 2 7
Replaced Parts High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other. Laser work requires gas
supplement, reflection lens replacement.
 Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000

2000W Machine’s cutting thickness and corresponding cutting speed for reference

Material type

Thickness (mm)

 Cutting speed (Meter/min) Cutting gas

Nozzle diameter (mm)

Stainless steel

 1 34 Air 1.5
2 17 Air 1.5
3 10 Air 2
4 5.5 Air 2
5 4.5 Air 2
6 2.7 Air 2
7 2.2 Air 2
8 1.8 Air 2
9 1.3 Air 2
10 1 Air 2

Carbon steel

 1 34 O2 1.2
2 20 O2 1.2
3 8.5 O2 1.2
4 6.7 O2 1.2
5 5.2 O2 1.2
6 4 O2 1.5
7 3.7 O2 1.5
8 3.2 O2 1.5
9 2.8 O2 1.5
10 2.4 O2 1.5
16 1.2 O2 2.0
20 0.6 O2 2.0

Suntop fiber laser cutting machine main cutting functions:

No.

Functions

Main Descriptions
1 Height following Torch move up and down according to plate height
2 Power control Laser power controlled according to slope
3 Reverse function Reverse to execute NC program
4 Breakpoint return Return to breakpoint after recovery
5 Multi piercing Pulse, blasting, progress, high-speed
6 Lead line Set lead line parameter
7 Auto edge-finding Find cutting piece coordinate automatically
8 Leapfrog function Leapfrog to improve cutting efficiency
9 Common line Common line to improve the cutting efficiency
10 Marking function Machine can do any shape laser engraving on plate

11

Nesting function

 Software can array the cutting pieces automatically, it can save both the materials and the labor energy

12

Auto alarm

 When machine has problem or some parts doesn’t work, the software will show the exact error code from which the operator can know the exact problems and will fix it very easily and quickly.

Machine rough running cost:

A)Total power consumption

Machine parts Power (KW) Power consumption(KW/H) Note
Laser generator 4

≤13.4*60% = 8.2

 Due to the electricity cost different in every country, so I can only give total power consumption, couldn’t give total electricity price cost
CNC machine tool 5.8
Water chiller 3.6

B) Machine gas consumption

Gas type

Consumption

(L/hour)

 Remark Note
Oxygen 6L/Hour Calculated based on 1mm carbon steel sheet Due to the gas price different in every country, so I only can give the rough gas consumption per hour
Nitrogen 20L/Hour Calculated based on 1mm stainless steel sheet

C) Machine consumable parts

Consumable parts name

Life time

( hour)

Unit price

(USD/piece)

Total cost

(USD/hour)

 Note
Protection mirror ≥240 60 0.25 If the working environment is good, the consumable parts lifetime will be more longer
Nozzle ≥600 35 0.058
Total USD0.3 /hour

D) Machine rough total running cost:

Item

Power consumption

(KW/hour)

Consumable parts

 Gas consumption Note
O2 gas cutting 13.4 USD0.3/hour 6L/hour Based on 1mm carbon steel
N2 gas cutting 13.4 USD0.3/ hour 18L/hour

Based on 1mm stainless steel

Remark: if use the compressed air to cut stainless steel will save much gas cost.
