Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Galvanized Steel 60MM 70MM Octagonal Pipe Shutter Door Roll Forming Machine
Specifications
Brand Name :
WADJAY
Model Number :
70MM Pipe Shutter Door Roll Forming Machine
Certification :
CE,ISO 9001
Place of Origin :
china
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Type: :
Pipe Production Line
Production Capacity: :
12-15 M/min
Voltage: :
220/380/415/420/440V
forming thickness: :
0.4-1.2mm
Forming roller: :
about 20stations
Roller material: :
45# forged steel, surface coated with chrome
Main shaft material: :
45# steel
Main axis dia: :
70mm
Hydraulic cutting pressure: :
10-12Mpa
Description
Product Description

Octagon Pipe Technical Parameter

  1. Machine specification: forming thickness)0.4-1.2mm stainless steel strength≤G250Mpa
  2. Forming speed: 10-12M/min (EXCLUDING CUTTING STOP TIME)
  3. Forming roller: about 20stations
  4. Main motor power: 7.5KW
  5. Roller material: 45# forged steel, surface coated with chrome
  6. Main shaft material: 45# steel
  7. Main axis dia.: 70mm
  8. Hydraulic cutting pressure: 10-12Mpa

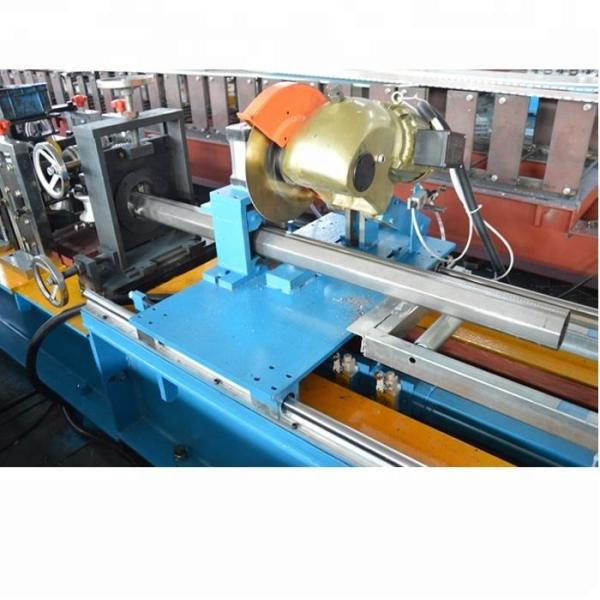

  9. Cutting method: Electric powered saw cutting, cutting after roll forming.
  10. Cutting blade material: Cr12 quenching treatment
  11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
  12. Wig welding device
  13. water cooling system

Octagon Pipe Main Components

Serial No. Commodity & Description Quantity
1 3T manual uncoiler 1 set
2 feeding guiding 1 set
3 Main roll forming machine 1 set
4 Output table 1 set
5 Main drive gear box 1 set
6 Fly saw cutting 1 set
7 Controlling system (including cabinet) 1 set
8 Water cooling system 1 set
9 Cassette 2 sets

Advantage for Octagon Pipe

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Applications

Be the series part of shutter door.



Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

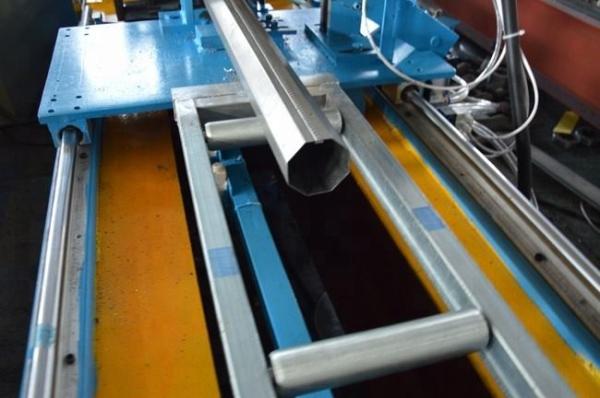

Profiles of Octagon Pipe

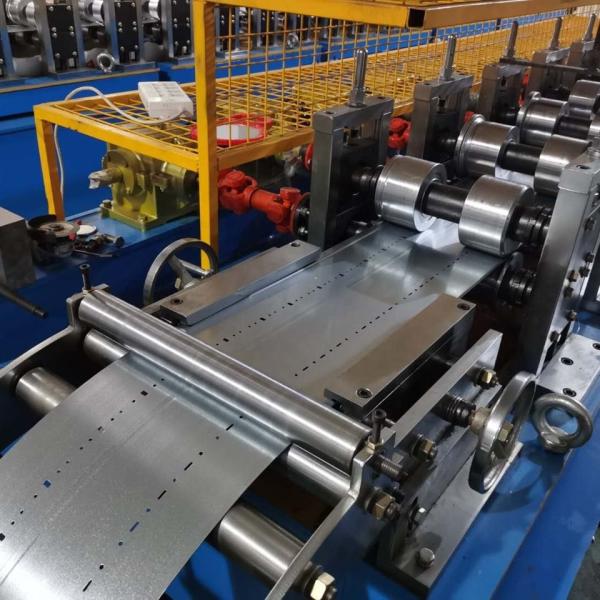

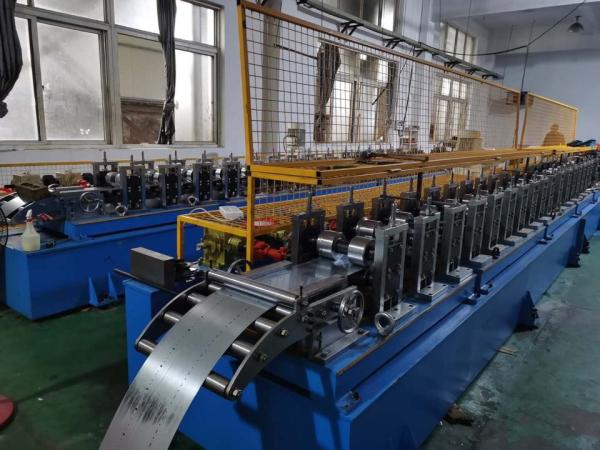

Machine Photo

Production Process

Exhibition

Workshop

Packaging & Shipping

Product tags

roller shutter door forming machine

,

pvc door extrusion machine line

,

aluminum window corner crimping machine
