Specifications
Brand Name :
WADJAY
Certification :
CE,ISO 9001
Place of Origin :
china
MOQ :
1 set
Price :
$8000
Payment Terms :
T/T, D/A
Supply Ability :
10 sets / month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Description
WhatsApp / WeChat / Skype: 008617739743119
DESCRIPTION
Band Clamp Roll Forming Making Machine

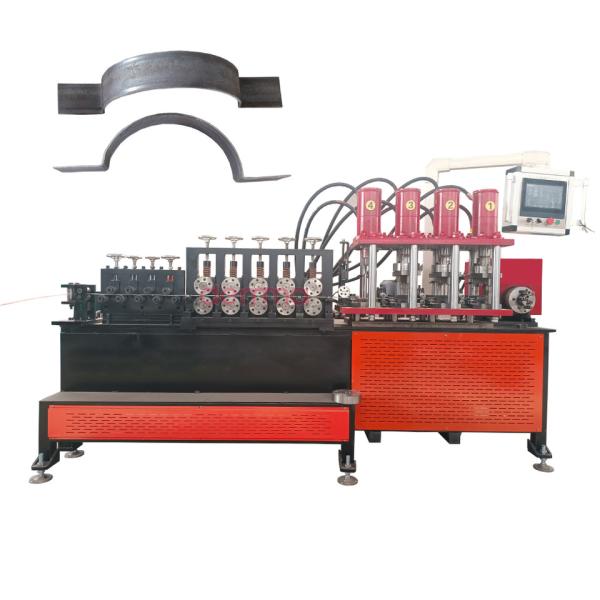

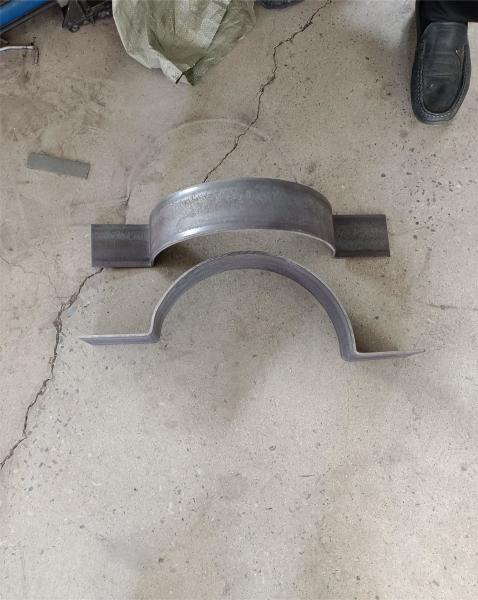

Flat iron hoop holding machine can also be called hoop forming machine or automatic hoop forming machine, The machine combines leveling, punching, bending and forming together, much higher efficient than conventional press forming.
Advantages of flat iron hoop holding machine:

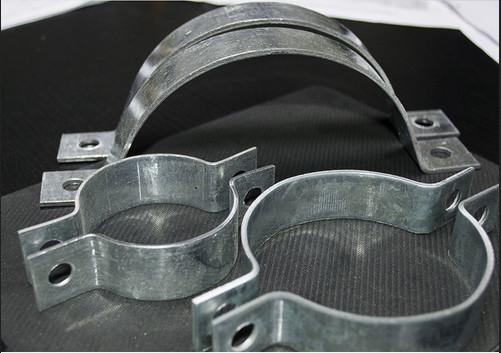

1. High Speed, High Capacity and Stable Performance 2. Just need one time to formed instead of use punching machines, shear machines and other machines 3. Save time, save cost 4. Improve production efficiency and clamping rings quality 5. The pass stations are easy to disassemble, install and maintai 6. The lubrication system for segment forming will be self-contained within the machine. The excess lubrication from the forming process will be re-circulated, filtered and re-used.
SPECIFICATION
Details of machine:

Control Panel

Easy to operate, complete functions and accurate data

Servo Motor

High-power motor power enough to feed material and bend more accurately

Hydraulic Station

Provide power for the host work , provide high pressure oil to the host cylinder , so that the host to complete the specified action

Bending Device

The material rack will clamp the raw materials , type , punch , cut and form the finished products in turn
For more details, please contact us 24 hours online!!
Automatic Band Clamp Roll Forming Making Machine Working Process:
Decoiler --- Leveling System --- Forming System --- CNC Bending --- Cutting System
Technical Configuration:
No
Items
Technical Parameters
1

De-coiler and Straightening Combine Device
Width of Strip
30-100mm；
Thickness of Strip
≤3.5mm；
Inner Diameter of Coil
ф480-520 mm(according to customer’s requirements)；
Outer Diameter of Coil
φ1300mm；Loading Weight:≤2T
Expand Way
Manual
Power
De-coiler no power
Width of Strip
30-100mm；
Thickness of Strip
≤2mm；
Motor Power
3 KW (straightening power)
Speed
Max16m/min
Roller Arrangement
7 rollers
Arrange mode
4-Point Independent
2
Roll Forming and Cutting Device
Forming Stations
8 Stations
Type of Driven
Gear
Forming Rack:
High strength guide pillar gantry horizontal frame. The slider rollers are adjusted by digital display.
Station Pitch
250mm
Max. Feeding Width of Coil
100mm
Max. Thickness of Material
3.5mm
Diameter of Shafts
Φ60mm ,42CrMo (quenching and tempering)
Material of Roller
Cr12,Hardness: HRC58-60°
Main Driven Motor
37KW (Servo Motor)
Bending and Cutting Devices
1 set
