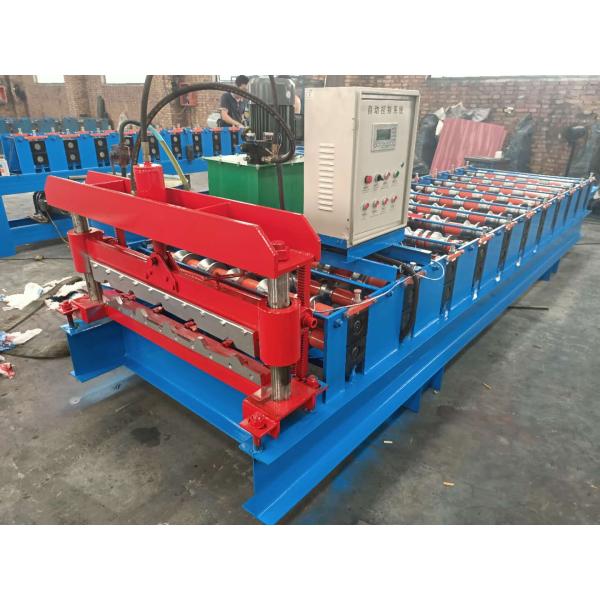

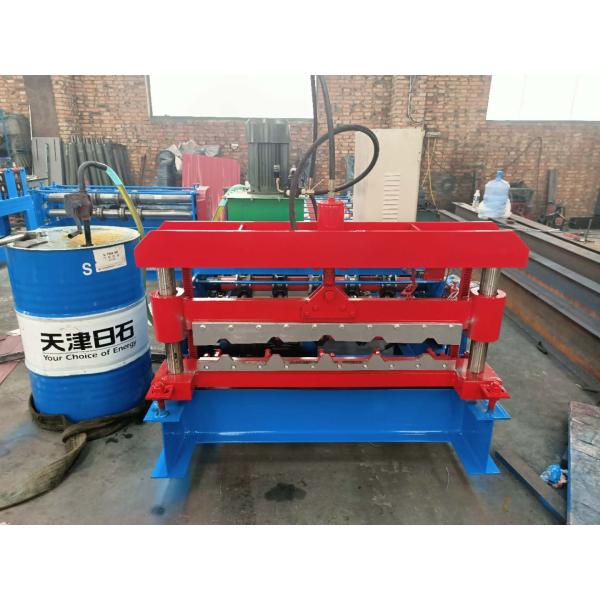

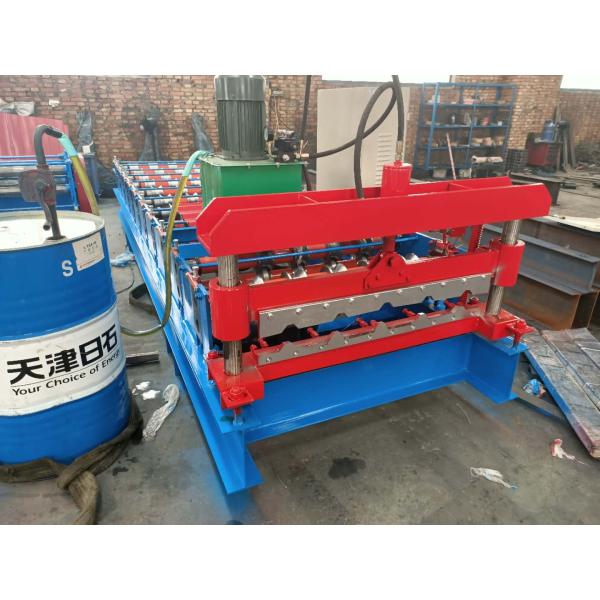

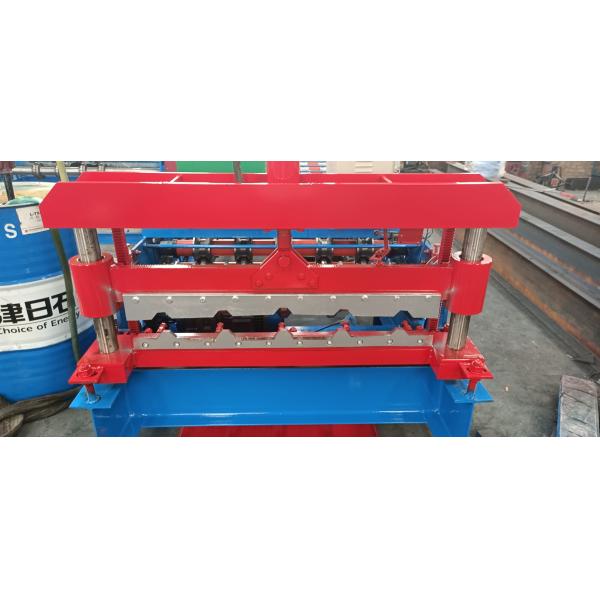

Color Steel Glazed Tile Purlin Roll Forming Machinery

Overview of the structure of the tile press:

The machine is mainly composed of left and sheave mechanism, right body, oil circuit system, sliding top case cover, movable seat, hexagonal runner, bottom connecting rod, belt pulley, gear mechanism, cam mechanism, lubrication pump, electronic control part, etc.

The stamping process of the upper die of the tile press: the motor passes through the pulley, drives the input shaft, through the pinion, the big gear, and drives the upper shaft. A set of cam mechanism drives the sliding seat equipped with the upper mold to move up and down to achieve compression

Summary of the advantages of all aspects of the tile press

The tile press has the characteristics of light weight, high strength, heavy bearing capacity and good shock resistance. It is widely used in the field of multi-high-rise steel structure buildings. Tile press equipment includes: PLC computer control system, special cutting equipment and hydraulic system.

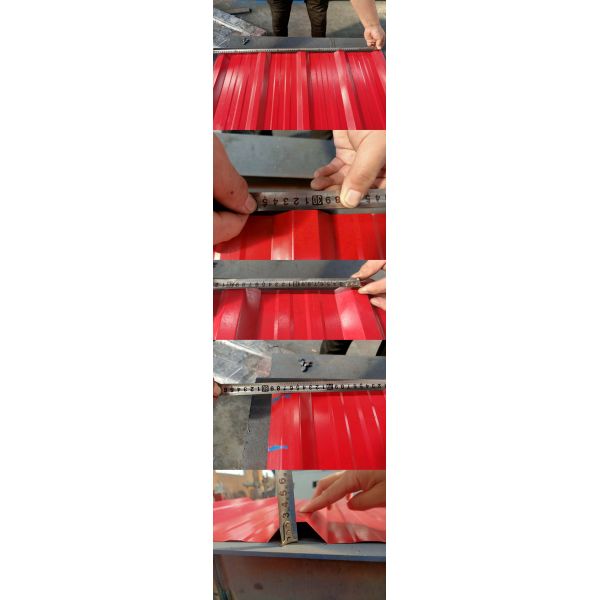

The characteristics and use of the tile press: the profiled plate rolled by the company's tile press is both solemn and elegant, but also beautiful and novel. Moreover, the appearance is flat, the ripples are uniform, the utilization rate is high, and the strength is high. The advantages of production automation are high degree, low cost and durable.

The tile press is mainly suitable for large and medium-sized enterprises and civil buildings, such as factories, stadiums, hangars, hangars, exhibition halls, theaters, etc. The tile press is economical and can combine different types of equipment into one, which saves floor space, and the cost of the tile press is much lower than two single-layer machines.

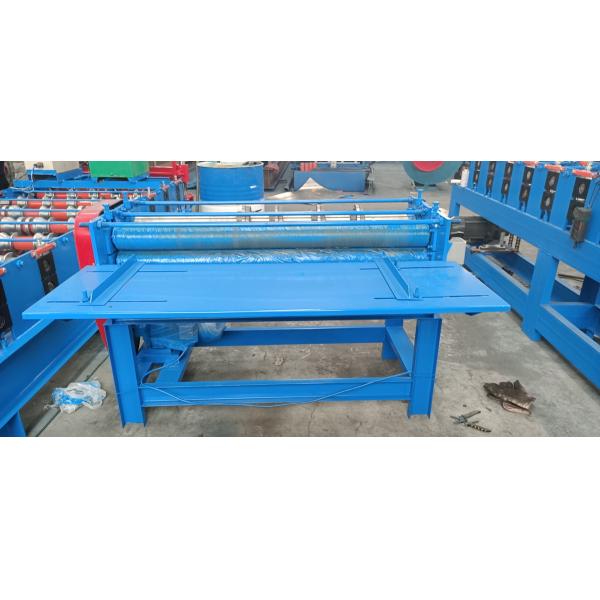

Sliter making machine.

Which can help you seprate the coils.
