C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
Specifications
Brand Name :
WADJAY
Model Number :
Purlin Roll Forming Machine
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
15 working days
Packaging Details :
wooden case
Condition: :
New
Production Capacity: :
30-40m/min
Dimension(L*W*H): :
6500mm*1500mm*1500mm
Roller Station: :
10 Steps
Forming Speed: :
30-40m/min
Shaft material: :
High Grade 45 # Steel
Description

C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness

Product Description

Type:Tile Forming Machine
Tile Type:Colored Steel
Use:ROOF
Production Capacity:30-40m/min
Place of Origin:China
Voltage:380V 50Hz 3phases
Dimension(L*W*H):6500mm*1500mm*1500mm
Weight:5 Tons
Raw material:Color Steel Galvanized Steel Sheet
Main motor power:Hydraulic 5.5kw
Roller Station:10 Steps
Roller material:Cr12 Steel Quenched
Shaft Material:45# Steel Forging Treatment
Reducer Type:250#
Shaft material:High Grade 45 # Steel
Cutting Device:Servo Tracking Cutting
Forming Speed:30-40m/min
Transmission:Gear and Sprocket
After-sales Service Provided:Online support, Free spare parts, Field maintenance and repair service, Video technical support
Warranty:18 months

C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness

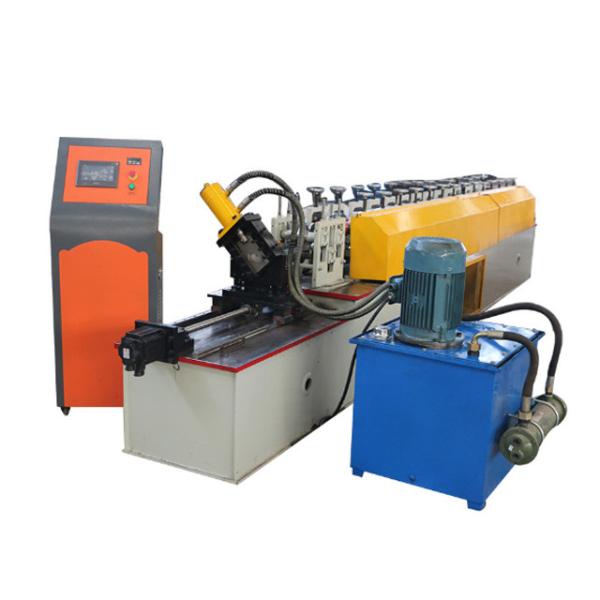

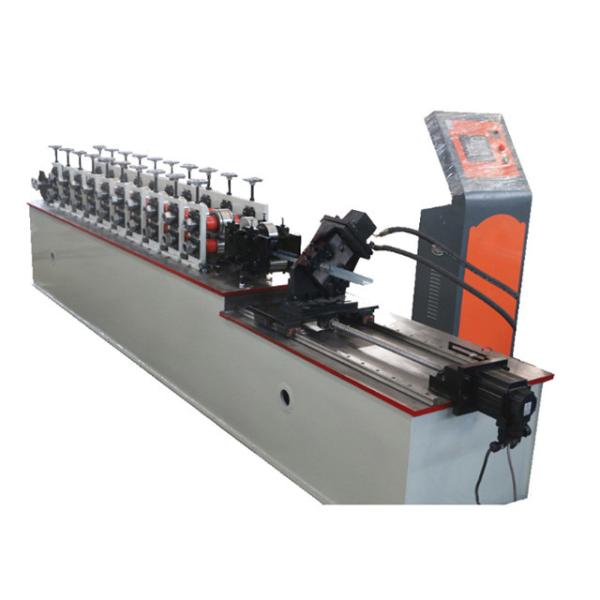

The automatic CZ steel equipment is a single-roll forming unit that can produce a variety of CZ-type purlin products. The automatic CZ steel equipment mainly consists of passive loading rack, leveling device, front shearing device, forming host, automatic punching device, stepless forming shearing device, hydraulic station, computer control system and so on.
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
Fully automatic CZ steel machine, can exchange CZ steel, realize 80-300mm any type of quick change in one minute, and achieve the product change specifications you need. The forming cutter can realize 80-300 any type of stepless cutting. No need to change tools. Feeding port automatic centering adjustment, fixed length cutting, precise precision, fast pressing speed, 8-15m/min per minute, saving labor costs and improving production efficiency.

1.High Precision And Speed

2.CE,ISO certification

3.Customization Accept

Sidewall structure Memorial Archway Type
Roller Station 8 Steps
Roller Material Cr12 Steel,after rough turning then NC Lathe
Shaft diameter 50mm
Shaft material 45# steel with forging treatment
Motor Power Hydraulic 5 5KW
Reducer Type 250#
Production Speed 30-40m/min(include forming/utting)
Transmission Gear and Sprocket
Cutting Device Servo tracking cutting
Cutting Motor 5.5KW
Cutting Mold Cr12MoV
C/Z/U/L purlin rolling machine c channel roll forming machine 3mm thickness
