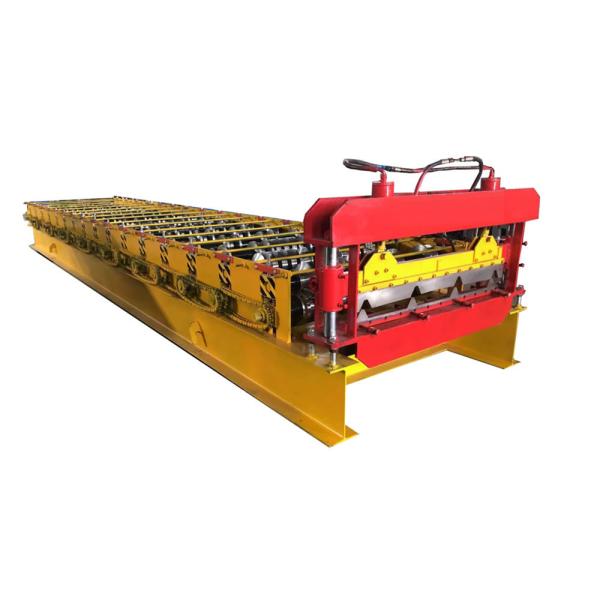

Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine
Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine
Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine
Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine
Specifications
Brand Name :
WADJAY
Model Number :
TR4-36 metal roofing sheet machine
Certification :
CE,ISO 9001
Place of Origin :
china
MOQ :
1 set
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Production Capacity: :
10-12m/min
Voltage: :
380V or as required
Dimension(L*W*H): :
8.5*1.55*1.5m
Weight: :
3.5T
Rolling thinckness: :
0.3-0.8mm
Feeding width: :
1220mm
Cutting blade material: :
Cr 12 High Grade Steel
Formed speed: :
8-15 M/minute
Description
Product Description
Features of our machine
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.

The Roof panel made by our Aluminum IBR Roof Sheet Steel Profile Roll Forming Machine Manufacturer have beautiful appearance and bright color, high strength .

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine

Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine

Working Flow of Aluminum IBR Roof Sheet Steel Profile Roll Forming Machine Manufacturer

Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine

echnical Detail

A Sheet Specifications

1 Coil Type PPGI GI
2 Width 1250mm
3 Thickness 0.3-0.8mm
4 Yield stress Q235
5 Effective 900mm

B Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate 16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 15, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning,

high rigidity, hard to deform.
Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES
well-adapted to various conditions, such as moisture,

electromagnetic disturbance.
Frequency Converter Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).
Length

Measurement Device

 Omron, made in Japan.
It features with high accuracy and stability.

More Pictures of Aluminum IBR Roof Sheet Steel Profile Roll Forming Machine Manufacturer

Specification
item
value
Applicable Industries
Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction works , Advertising Company
After Warranty Service
Video technical support, Online support, Spare parts
Local Service Location
None
Showroom Location
None
Condition
New
Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Production Capacity
10-12m/min
Place of Origin
China
Hebei
Brand Name
dixin
Voltage
380V or as required
Dimension(L*W*H)
8.5*1.55*1.5m
Weight
3.5T
Certification
ISO9001 and CE
Warranty
1 Year
Online support, Free spare parts
Key Selling Points
Easy to Operate
Rolling thinckness
0.3-0.8mm
Feeding width
1220mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
Motor, OTHER, Bearing, Pump, PLC
Name
Roofing Sheet Roll Forming Machine
Cutting blade material
Cr 12 High Grade Steel
Control system
Taiwan Delta
Cutting Thickness (mm)
0.3-0.8mm
Color
Client's Request
Roller stations
16 Stations
Main motor power
4kw+5.5kw
Formed speed
8-15 M/minute
Feeding material
1220mm
Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine
Automatic Aluminum Tr4 IBR Roof Sheet Steel Profile Roll Forming Machine
