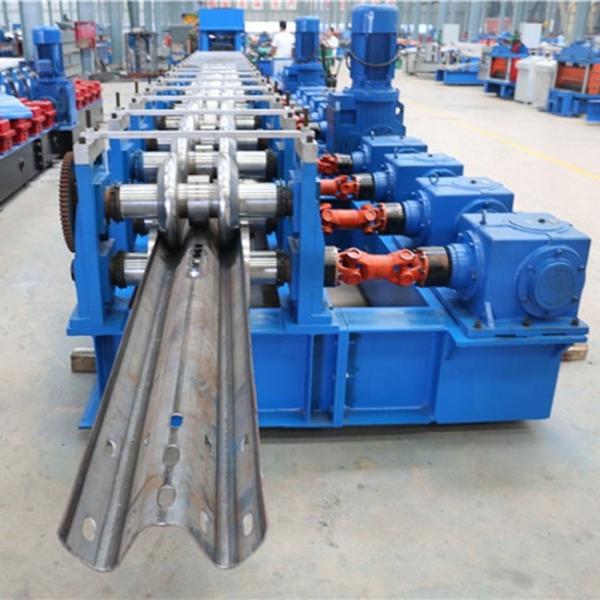

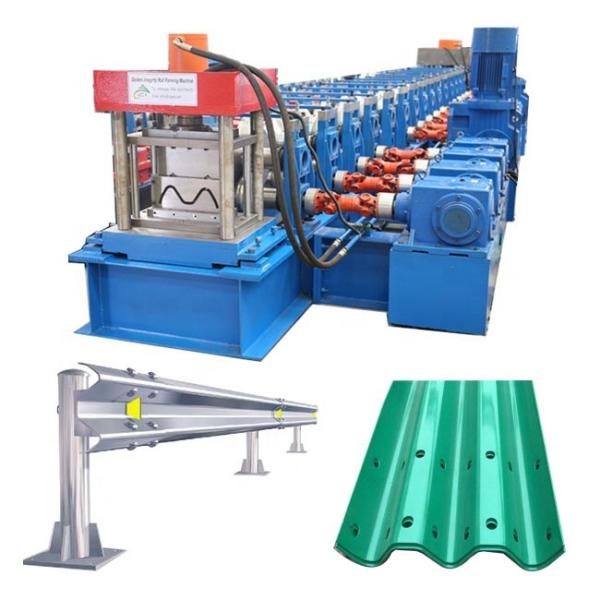

Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine
Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine
Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine
Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine
Specifications
Brand Name :
WADJAY
Model Number :
guardrail roll forming machine
Certification :
CE,ISO 9001
Place of Origin :
china
MOQ :
1 set
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 ensembles / mois
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Motor Power: :
50kw
Material of Punching Mould: :
Cr12MOV
Hydraulic Power: :
7.5kw
Roll Forming Station: :
16 Groups
Raw Material: :
Black Steel & Galvanized Steel
Thickness of Raw Material: :
2.0-4.0mm
Weight of Machine: :
About 25ton
Description

Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine

Product Description
Main Specification

Manual decoiler
  1. Capacity: 5 ton
  2. Loading width: MAX 600mm
  3. Valid expanding range for coil inner diameter: 480-520mm

Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming MachineGuardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine

Main roll forming system
  1. Main motor power: 50kw
  2. Separate motor reducer: 750type
  3. Punching: Hydraulic pre-punching before forming
  4. Punching mould:Cr12mov
  5. Hydraulic power: 7.5KW
  6. Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
  7. Leveling rollers: 7rollers(three upper and four lower)
  8. Roll forming station: 16 groups
  9. Diameter of main shaft: 100mm
  10. Drive: independent gearbox with universal joint
  11. Raw material: Black steel & galvanized steel
  12. Thickness of Raw material: 2.0-4.0mm
  13. Width of Raw material: 488mm
  14. Working speed: 10m--15m/min(Exclude cutting time)
  15. Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
  16. Cutting blade: Cr12mov
  17. Cutting tolerance: +/- 1.5mm
  18. Hydraulic pressure: 30Mpa
  19. Weight of machine: about 25ton
  20. Size of machine: About 9000×2150×1500mm L x W x H
  21. Color of machine: yellow and blue
  22. Coder: Omron
  23. Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
  24. Computer operating panel: touching screen

2. Parameters of guardrail machine :

1 Model No. Two waves highway roll forming machine
2 Max coil thickness 3.5mm
3 Coli material Steel or other
4 The bearing capacity of manual decoiler 5 tons
5 shaft material 45#steel
6 Out diameter 100mm
7 numbers of forming steps 20 stations
8 transmission Differential gear transmission
9 Forming speed 10-15m/min
9 main motor power 45kw
10 voltage 380V50HZ Three-phase or you need
11 dimension 20.5*1.2*1.5m
12 cutting Hydraulic cutting
13 Cutting power 13.5kw
14 blade material Cr12 steel with quenched treated 60-62°c
15 control system PLC(Delta)
16 length tolerance ±2mm
17 spare parts

easy emaged parts:conk 2pcs,

fuse-link 4pcs

rubber mat: 1 pcs

bolt spanner: 1 pcs
18

The whole line including: Hydraulic decoiler, roll forming machine, cutting part

PLC control system, run-out table.

3. Components of Highway expressway guard board crash barrier guardrail cold roll forming machine :

No. Name Unit Qty
1 decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1

4. Working Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting

→Products receiving
