Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine
Specifications
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
7
Packaging Details :
WOODEN CASE
Name :
roll forming machine
thickness :
0.3-0.8
Material :
steel
Description

Production:

1.High Precision And Speed
2.CE,ISO certification
3.Customization Accept

PRODUCT DESCRIPTION
SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE
Raw Material
feeding width
mm
up layer 1000
down layer 1000
effective width
mm
up layer 820
down layer 836
thickness
mm
0.3-0.8
Main Roll Forming Machine
roller material
45# steel plated with chrome
diameter of shaft
mm
70
roller station
steps
up layer 16
down layer 16
Main Configuration
main motor power
kw
5.5
hydraulic station power
Kw
4
control system
PLC brand
Mitsubishi

details images:

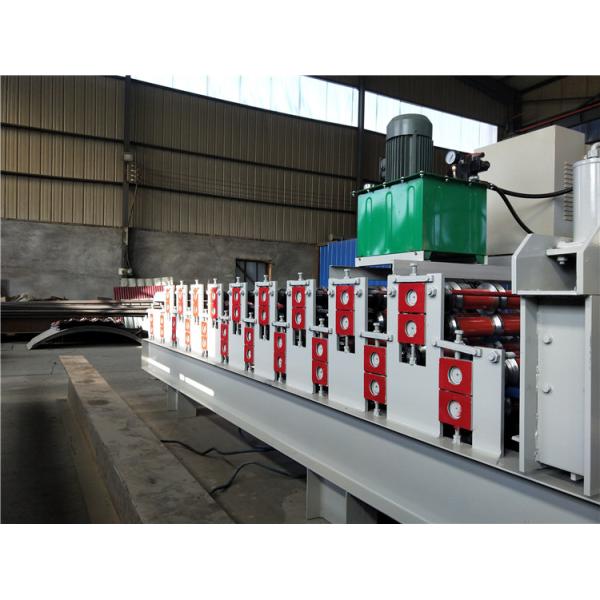

forming rollers:

Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine

Feeding table:

Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine

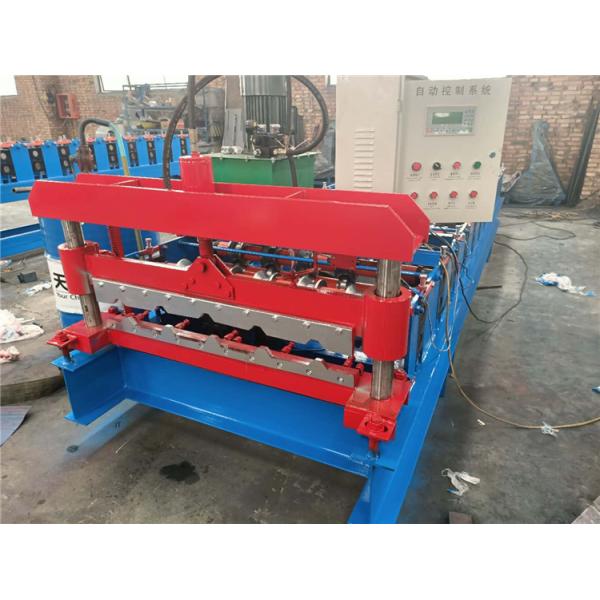

Cutting systerm:

Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine

Control system and Hydraulic power station:

Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine

Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine

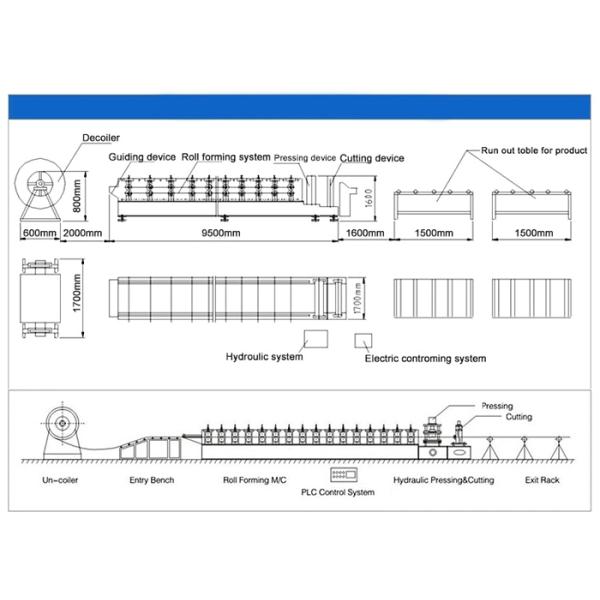

Production process:

Roof Use Corrugated Profile Steel Roofing Sheet Roll Forming Machine

Our Services

Products Advantages:
Our company has over 10 years producing history, with professional technical team and quality control team.
Our factory has 5 work shops with over 300 sets all kinds of machines, and has over 300 workers.
Production process is strictly in accordance with the production process, ensure that each machine is qualified before delivery.


Service advantages:
Pre-sale service:
1. Provide Lathes technical consulting services to customers free of charge.
2. Provide the company with the company profile and credit certificate.
3. Invite customers to visit our company to inspect the manufacturing process.
In Producing service
Customers can come to our company to know the progress of production at any time.


After-sale service
1. Our company can dispatch technicians to carry out on-site installation and commissioning according to customer requirements.
2. Customers can send employees to our company for acceptance and training.
3. The warranty period of our company's lathe machine is ONE year. During the warranty period, our company provides damaged parts for customers free of charge, and dispatches technicians to solve problems on the spot according to customer requirements.
4. Our company promises to respond to customer questions in a timely manner after receiving feedback of qualit, and provide solutions within 24 hours.
