Specifications
Brand Name :
WDL
Model Number :
WDL-C1
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
28days
Packaging Details :
wooden
Warranty :
1 Year
After-sales service provided :
Online support
Condition :
New
Weight :
3200kgs
Dimension(l*w*h) :
2700/2300/2350
Voltage :
Customized,380V/50Hz
Machine type :
High efficiency
Color :
Custom-made
Description

Custom Made Machining Center Customized Roof Panel Forming 380V / 50Hz

Main Technical Data
1. Dimensions: length 6000mm × width 1400mm × height 1300mm
2. Maximum speed of molding machine: 8-12 meters per minute
3. Forming color steel plate thickness: 0.2-0.8mm
4. Roller shaft diameter: 70mm
5. CNC computer operation panel
6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box.
7. Machine weight: about 3.0 tons,
8. Transmission mode: 1 inch chain drive
9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row
10. Power host: 3kw
11. Pump station motor: 3kw
12. Distribution: The whole machine is controlled by industrial computer PLC;
13. Equipment chassis: 300H steel; vertical plate thickness is 14mm
14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm;

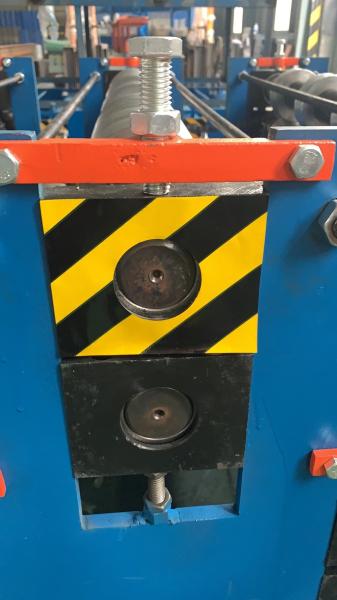

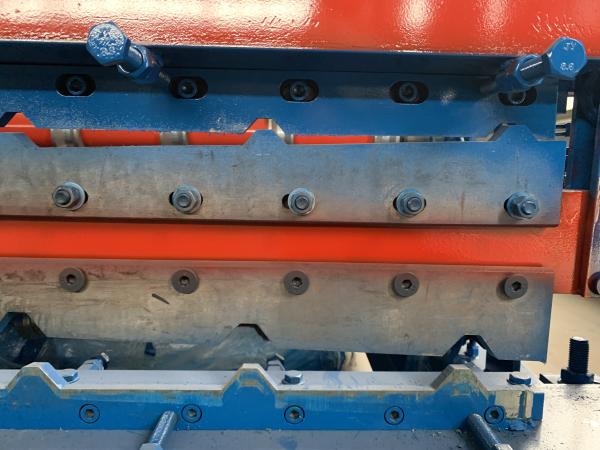

More details pic of machine

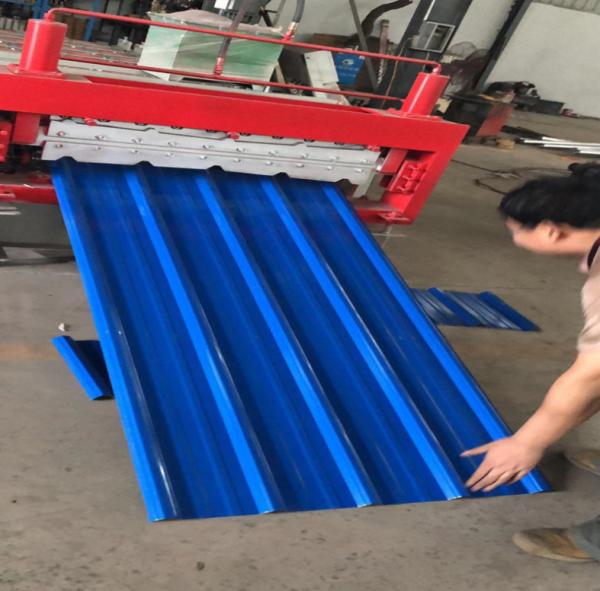

Customized Double Layer Color Steel Pressure Tile Roll Forming Machine:

Wave one tile roll forming machine

Most popularity design tile roll forming machine

Other design of tile roll forming machine, we also could customized to you, just share us your details about:

1) Your details design.

2) Wide profile

3) High trapezoidal ribs

4) The center with two minor ribs between the major ribs.

Packing and shipping of machine

Packing of Tile Roll Forming Machines: Usually because it is very large, so we use wooden package to make it more stable.Or shipping by containers, which will be more convenient and safty.

Shipping of Tile Roll Forming Machines: You can choice use our agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
