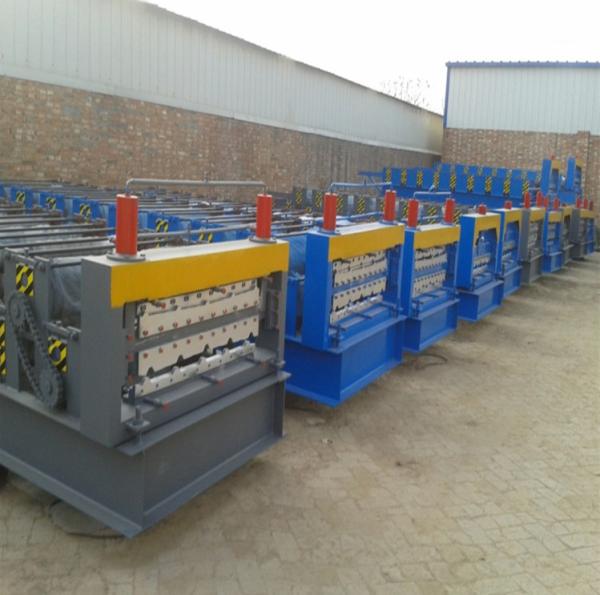

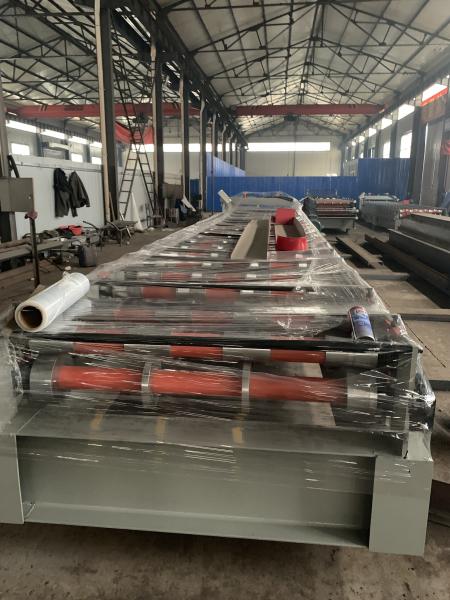

0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
Specifications
Brand Name :
WDL
Model Number :
WDL
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500sets per month
Delivery Time :
15 days
Packaging Details :
export standard wooden case
Customzied :
We accept
MOQ :
1 set
Thickness :
0.3-0.8mm
Material :
Color Steel Galvanized Plate
Cutting type :
Automatic Hydraulic Cutting
uncoiler :
we can provide
Double layer :
we have
Payment :
TT, western union
Package :
wooden case
Name :
24 gauge metal three layer corrugated roof tile roll forming machine sheet roll forming
Description

China Supplier Double Layer Roll Forming Machine Roof Tile Roll Forming Machine For Hydraulic Tile Pressing.

Forming

it can be customized according to people' requests, please tell us these information

1. What is your meterial thickness?

2. What is your material width?

3. Do you have design picture?

Parameter

Material thickness 0.3-0.8mm
Diameter of shaft(solid shaft) 70mm
Roller 11steps
Material of shaft (solid shaft) (high grade) 45# Steel, quenching and tempering treatment
Material of roller 45# steel polished and coated with chrome HRC55-60°
Reducer 8# cycloid reducer (high grade)
Cutting hydraulic cutting after roll forming
Hydraulic power 3kw
Driven 1 inch chain

Roll forming machien festures:

(1). Material of the profile: GI or color steel
(2). Thickness range: 0.3-0.8mm
(3). Roll station: about 18 stations down layer and upper roller stations 16
(4). Shaft diameter:70mm material: SAE1045 with quenching and tempering
(5). Machine roll forming speed: not less than 15m/min
(6). Transmission: by chain, one inch, single line
(7). Roll former has leveling bolts in the base for adjust the leveling
(8). Machine base frame adopt H beam welding steel
(9). In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
(10). Machine adopts new station to make machine more strong
(11). To avoid accidents, all of drive part adopt protect cover

0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing

0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Hydraulic Tile Pressing
