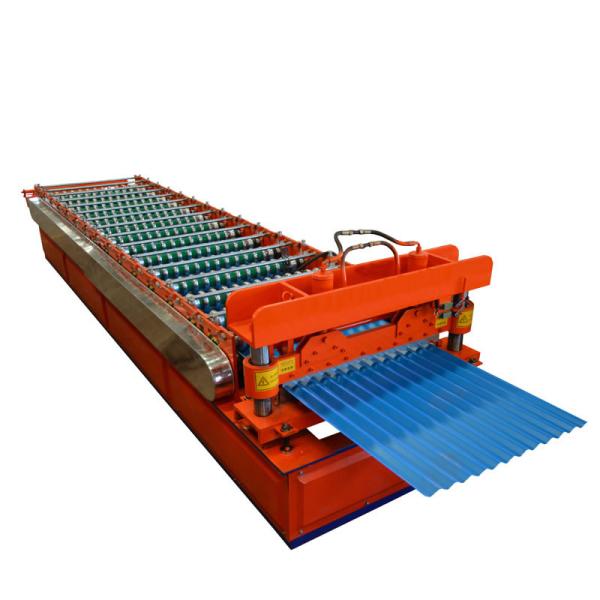

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Specifications
Brand Name :
wadley
Model Number :
LM_SX76
Certification :
ISO 9001
Place of Origin :
china
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50 sets / month
Delivery Time :
15 working days
Packaging Details :
wooden case
Name :
Pressure tile machine
Production Capacity :
8-15M/Min
Power(W) :
7.5 Kw
Tile Type :
Steel
Use :
Roof
thickness :
0.3-0.7mm
Description

Hydraulic Pressure Corrugated Roof Tile Manufacturing Roll Making Forming Machine

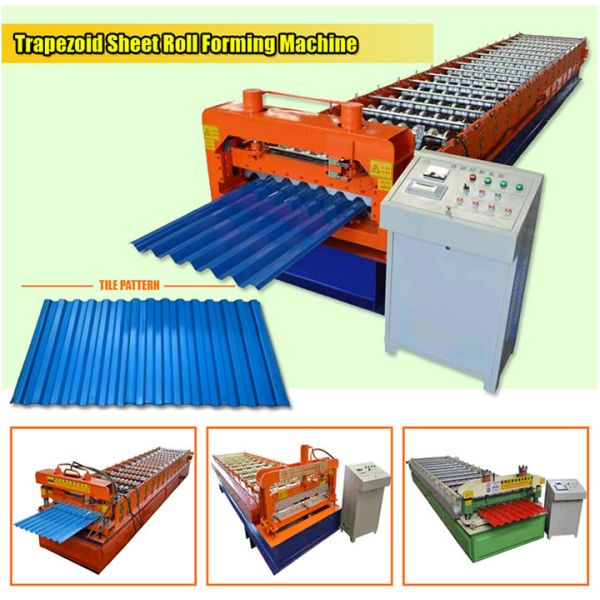

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type

The tile pressing machine is a machine consisting of discharging, forming and post-forming cutting. Its color plate has a flat appearance, uniform paint, high strength and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, stadiums, Exhibition halls, theaters and other rooms and walls.

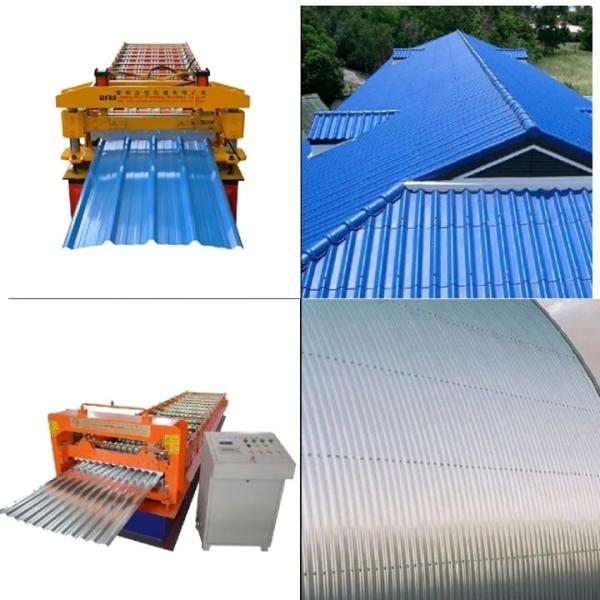

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type

Technical Parameters:

No. Item Specification
1 Can Formed Material PPGI,GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.8mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 6000mmx1600mmx1400mm
8 Speed 12-15m/min
9 Diameter of shaft 75mm
10 Weight of the Machine 5500-6500KGS
11 Material of rollers C45 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 9.5kw
15 Power of hydraulic system 4kw
16 Power of main molding core

5.5kw

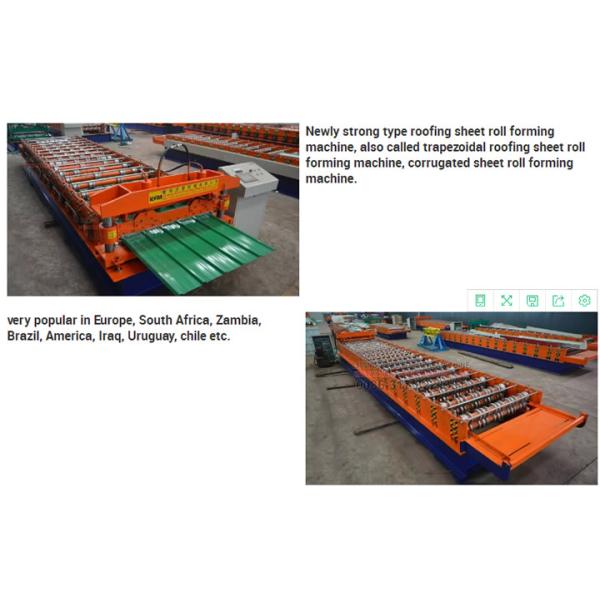

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
