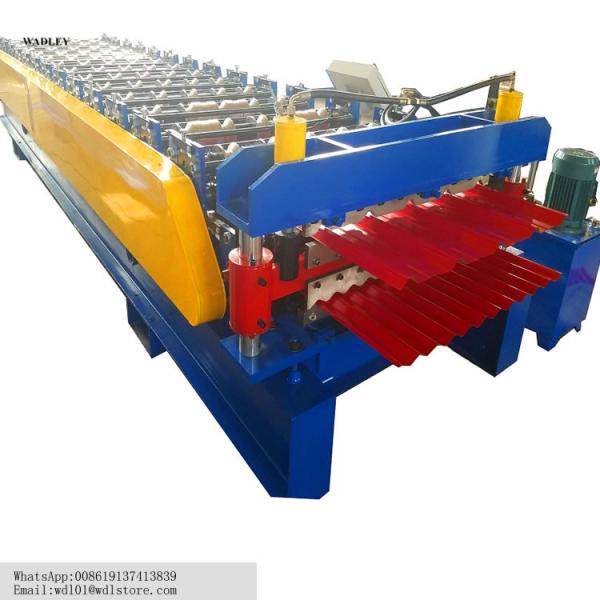

Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw
Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw
Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw
Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw
Specifications
Brand Name :
wadley
Model Number :
Tile Forming Machine
Certification :
ISO 9001
Place of Origin :
china
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50 sets / month
Delivery Time :
15 working days
Packaging Details :
wooden case
Name :
Tile Forming Machine
Production Capacity :
20-25m/min
Power(W) :
7.5 Kw
Tile Type :
Colored Glaze Steel
Use :
Roof Profile
thickness :
0.3-0.7mm
Description

Double layers steel sheet roll forming machine process galvanized steel and color steel sheet

Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw

- Double layers color steel sheet roll forming machine can produce two designs,this machine process galvanized steel and color steel sheet,thickness is 0.3-0.7mm.
- This machine the best advantage is save space.But three layers can not working in the same time.PLC can choose working by up layer,or down layer.
- We can make Double Layers Color Steel Sheet Roll Forming Machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.
- We are professional in roll forming machines,we have more than 20 years in this area.

Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw

Double Layers Steel Sheet Roll Forming Machine Tile Forming Machine 7.5 Kw

Raw material

Material

Colored steel sheet, galvanized steel sheet, aluminum sheet

Thickness of coil sheet

0.2-0.8 mm

Material expand width

1000mm

Efficiency width

840mm

Roller material

High grade NO. 45 forged steel with 0.05mm hard chrome plating

Shaft material

High grade NO. 45 carbon wrought steel

Cutting blade

Cr12 mould steel with quenched treatment

Diameter of shaft

70mm

Main frame

300 H steel

Side plate thickness

16 mm

Chain size

1 inch

Forming steps

11 stations

Productivity

20-25m/min

Hydraulic station power

4 KW

Hydraulic pressure

10-12MPa

Appearance size

5200mm*1500mm*1500mm

Hydraulic oil

40# hydraulic oil

Electric tension

380V 50 Hz 3 Phase or as your requirement

Cut Mode

Hydraulic Guide Column

Cutter materia

Cr12 Heat Treatment

Electronic control system

PLC (Delta) Touch Screen

Color

Blue and orange

Rolling material

45# steel,roller surfaces polishing, hard plating
