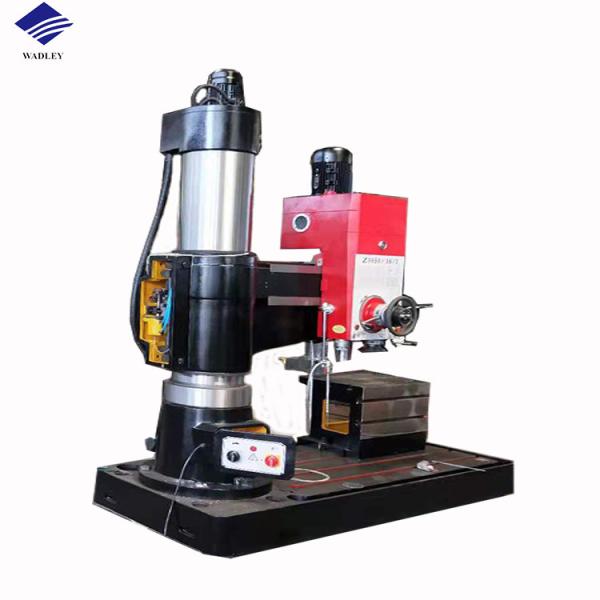

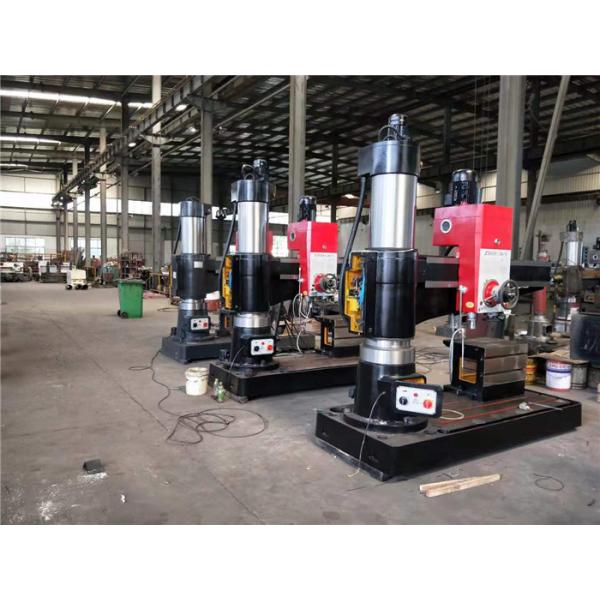

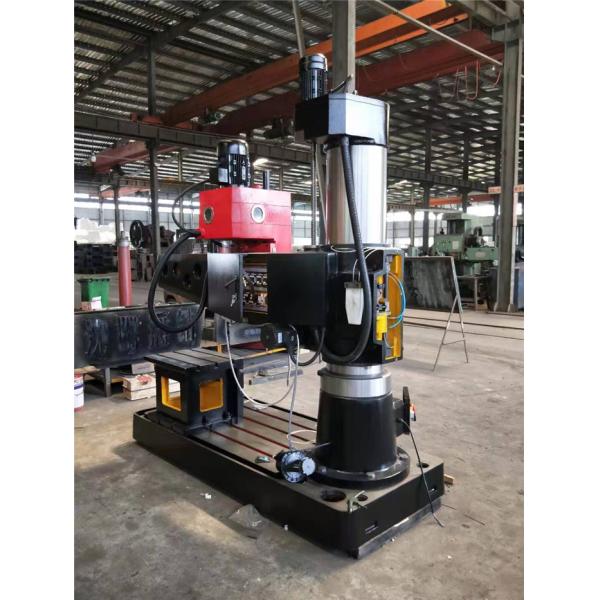

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine
Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine
Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine
Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine
Specifications
Brand Name :
WadJay
Model Number :
WJ-32,WJ-40
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
15 working days
Packaging Details :
wooden case
Condition :
New
CNC or Not :
Normal
Range of Spindle Speed :
10 - 4000 r.p.m
Key Selling Points :
High Precision
Power(W) :
1.5/2.2KW, 5.5
Spindle travel :
130mm
Description

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine

Product Description:

Radial Drilling Machines are widely used in single and small batch production to process the holes of larger and heavier workpieces. Radial Drilling Machines are available in a wide range of screw holes, threaded bottom holes and oil holes for drilling large workpieces. The radial drilling machine is used for processing small and medium-sized holes on bulky workpieces or porous workpieces. It is mainly composed of base, column, rocker arm, headstock, spindle workpiece table, etc.

We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us the max drilling diameter? The length of arms for your side needed? so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine


Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine

Specifications Units Z3032×10
Max. drilling diameter mm

Steel Φ32 Iron Φ32
Tensile strength Mpa 500-600
Column diameter mm 200
Distance from spindle center line to column bus bar mm 200-910
Horizontal moving distance of spindle box mm 710
Distance from spindle nose to base mm 330-1060
Rocker arm lift distance mm 730
Spindle travel mm 120
Spindle taper MT4
Spindle speeds range r/min 108 162 262 398 665 1000(6 step)
Spindle feeding range mm/r 0.10 0.16 0.25(3 step)
Max. spindle allows feed resistance N 5300
Rocker arm lifting speeds m/min 1.21
Rocker rotary angle ° + 180
Main motor power kw 1.5/2.2
Lifting motor power kw 0.55
Cooling pump motor power kw 0.04
Net weight kg 1080
Overall dimensions(L×W×H) mm 1400×660×2060

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine

Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine


Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine

Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.


Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.


Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.


Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.


Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
