Electric tapping machine drilling machine for metal wood plastic tapping
Electric tapping machine drilling machine for metal wood plastic tapping
Electric tapping machine drilling machine for metal wood plastic tapping
Electric tapping machine drilling machine for metal wood plastic tapping
Electric tapping machine drilling machine for metal wood plastic tapping
Electric tapping machine drilling machine for metal wood plastic tapping
Specifications
Brand Name :
WADJAY
Model Number :
M3-M16 Automatic Tapping Machine
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100/month
Delivery Time :
7-10
Packaging Details :
export wooden case
Max. Drilling Dia. (mm): :
12.5
Range of Spindle Speed(r.p.m): :
0 - 316
Dimension(L*W*H): :
66.5*61*20cm
Voltage: :
AC220V
Cnc or not :
CNC
Weight (KG): :
30
Description

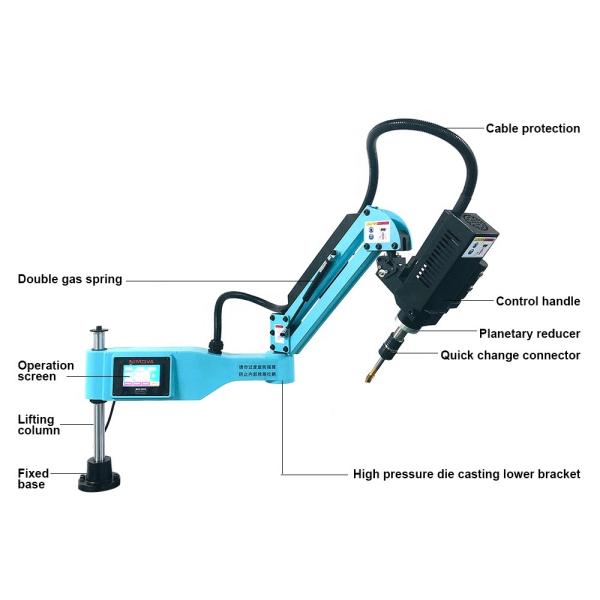

M3-M16 Automatic Tapping Machine Electric Tapping Machine with CE Certificate

1. Shipping list

Fixed chassis 1PCS
Rocker bracket and motor system 1PCS
Torque protection chuck 1PCS
power cable 1PCS
Manual / Warranty Card 1PCS

2. Specifications& Feature

product name Electric wire tapping machine
model SG-DDSGJ-001-220V
Voltage 220V
power 950W
Tapping range M3-M16 (Inch: 1/8-3/4)
Rotating speed 316r/min
Working radius 1100mm
working direction universal
Package dimensions 66.5*61*20cm
Package weight 30KG

3. Advantage

1. Power system using servo motor
2. Power 950W
3. Universal operating head
4. High positioning accuracy
5. Small computer, touch screen control
6. Graphite copper sleeve bearing
7. Three tapping modes
8. Cantilever with dual gas spring
9. Available for M3-M16 threads

4. Benefits for you

(1) Machine power 950W, suitable for M3-M16 wire tapping

(2) High quality servo motor, strong power and long service life

(3) Universal wire tapping head can be tapped in any direction and positioned accurately.

(4) The taper sleeve has an overload protection device to ensure that it does not damage the tap, the load balance in the tapping process, the high precision of the screw processing, and the protection of the torsion force.

(5)manual, automatic and gap three modes of work are your choice.

(6) Small touch screen computer control, which can adjust parameters such as tapping speed and depth.

(7) High work efficiency, simple and convenient to apply.

6. Application area

Used in factory workshops, woodworking, DIY work, mold manufacturing, etc., for steel tapping, aluminum tapping, copper tapping, iron tapping, wood tapping, plastic tapping, etc.

7. Technical Support

1.The size of the ISO tapping collets (If you need JIS standard tapping collets, pls let let's know):

M3:3.15 X 2.5

M4:4 X 3.15

M5:5.1 X 4.0

M6/M8:6.3 X 5.0

M10:8 X 6.3

M12:9 X 7.1

M14:11.2*9.0

M16:12.5*10.0

2. When the machine is working, please donot touch the screen with your hand.

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

6. Picture show
