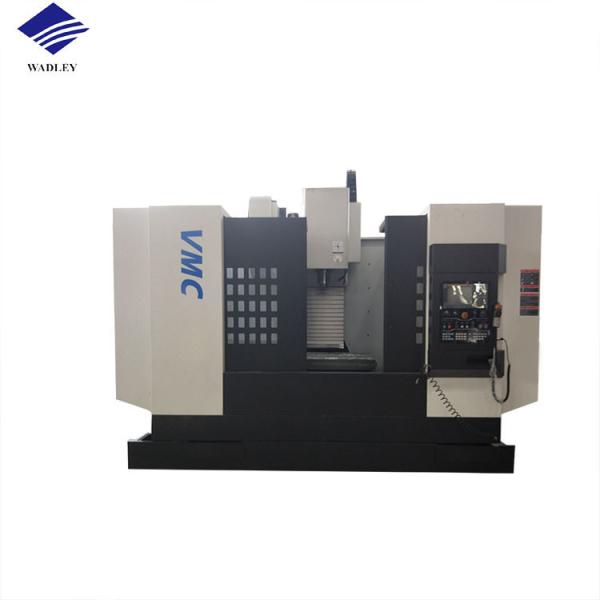

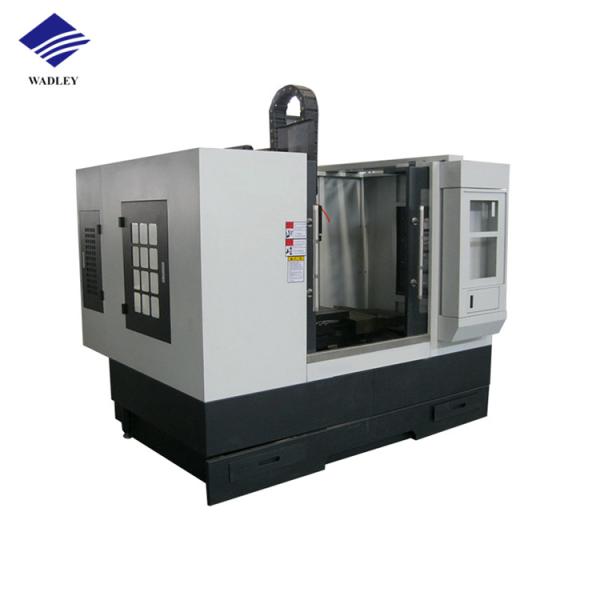

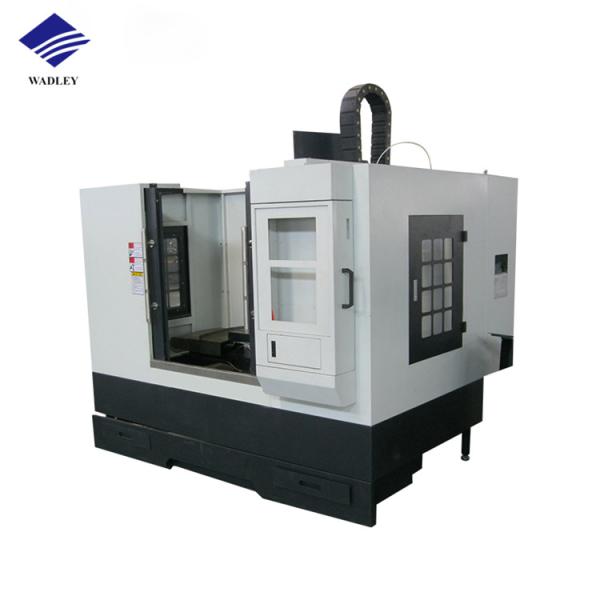

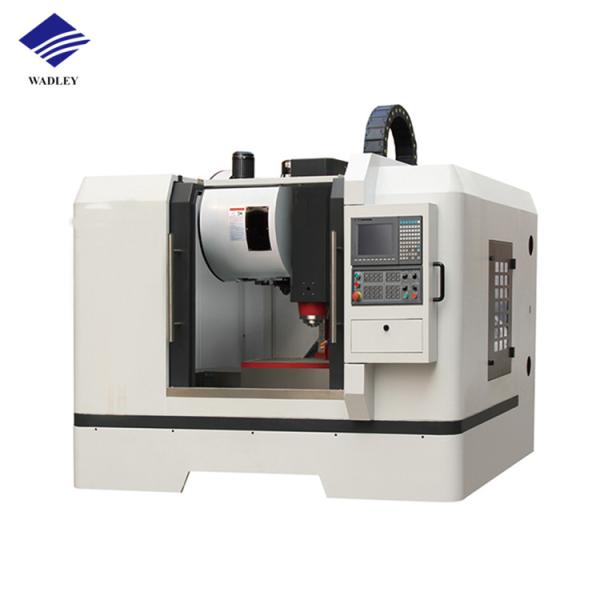

5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
Specifications
Model Number :
VMC650
Place of Origin :
China
MOQ :
1 pieve
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10 pcs/month
Delivery Time :
25-40 days
Packaging Details :
Standard export packaging
Name :
machine center
X axis travel :
650mm
Y axis travel :
420mm
Z axis travel :
480mm
Table size :
800*420mm
Max. loading capacity :
600kg
X.Y.Z axis feed speeds :
8000mm/min
Spindle taper :
BT40
Spindle motor :
5.5kw
Weight :
4500kg
Description

5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40

5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
1. The main performance features:
1). High quality resin sand
2). Taiwan spindle
3). Taiwan ball screw and locking nut
4). Taiwan pressure cylinder
5). Japanese NSK bearing germany R+W coupling
6). Automatic lubrication system
7). Chip conveyor at optional
2. Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
Machine Type
Unit
MVL 650
VMC 850
VMC 855
worktable(length×width )
mm
800×420
1050×500
1050×520
Maximum load of table
kg
500
650
700
T-slot(number of slot×slot×pitch)
mm
3-18×110
3-18×80
3-18×80
Travel forX/Y/Z axes
mm
600/420/500
800/500/600
850/550/600
Distance from spindle nose to table surface
mm
80-580
150-750
150-750
Distance from spindle center to column guide surface
mm
550
620
620
CNC system
FANUC-Oi MD
FANUC-Oi MD
FANUC-Oi MD
Rapid shift of axes of X/Y/Z
30/30/20
30/30/20
30/30/20
Maximum cutting feed speed
12
12
12
Standard tool quantity
Disc type 24
Disc type 24
Disc type 24
The larges diamter cutter knife/length
mm
Φ80 fulltool/300
Φ80 fulltool/300
Φ80 fulltool/300
Toolexchaing manner
pneumatic
pneumatic
pneumatic
Average tool exchanging time
Disc type2.5s
Disc type2.5s
Disc type2.5s
Positioning accuracy
mm
0.008
0.008
0.008
Accuracy of repeated positioning
mm
0.005
0.005
0.005
Spindle speed
r.p.m
8000
8000
8000
Spindle specifications (mode /installation /diamter)
BT40/120
BT40/150
BT40/150
(Drive manner of spindle)
Belt drive
Belt drive
Belt drive
Motor power of spindle
kW
11/15
11/15
11/15
Requirement for air compressing
kg/cm2
≥6
≥6
≥6
Air pressure flux
≥0.3
≥0.3
≥0.3
Integrated weight(kg)
kg
4000
5000
5200
Overall dimension (length×width×height)
mm
2330×2200×2490
2700×2300×2600
2700×2300×2600

5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT405.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT405.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
5.5kw Metal Machine Center 800*420mm Table Size 4500kg Weight BT40
Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
