Flat Bed Siemens CNC Lathe Machine Lathe Machine High Precision 3200kg Weight
Metal lathe machine is widely used in electrical equipment, Instrument apparatus industry, Cars, Motorcycle parts, Fastener bearing, Photographic equipment, movie mechanical, hardware various clocks and watches,The glasses, Stationery, electric machinery, Valves, Gas pipe fittings and other high precision machining and manufacturing of complex parts, Is a hardware machinery processing industry the most ideal efficient equipment. Is a hardware machinery processing industry the most ideal efficient equipment.
Specifications | Unit | CK6136 | CK6140 | CK6150 |
Max.swing over bed | mm | 360 | 400 | 500 |
Max.swing over cross slide | mm | 150 | 180 | 280 |
Distance between centers | mm | 1000/1500 | 1000/1500 | 1000/1500 |
X/Z axis travel | mm | X:220 Z:1050/1600 | X:220 Z:1050/1600 | X:220 Z:1050/1600 |
Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | Mechanical 2 gear transmission ,in gear variable speed | Mechanical 2 gear transmission ,in gear variable speed | |
Spindle speed steep | variable | variable | variable | |
Spindle speed | rpm | L:70~560,H:200~1600 | L:70~560,H:200~1600 | L:70~560,H:200~1600 |
Spindle nose | C6 | C6 | C6 | |
Thru-hole dia.of spindle | mm | 52 | 52 | 52 |
Spindle taper | MT6 | MT6 | MT6 | |
Spindle motor | KW | 5.5 | 5.5 | 7.5 |
Chuck size | mm | 200 | 200 | 250 |
Ball screw dia.and pitch | mm | 25X6/40X8 | 25X6/40X8 | 25X6/40X8 |
X/Z axis feed motor torque | N.m | X:6 Z:10 | X:6 Z:10 | X:6 Z:10 |
X/Z axis feed motor power | KW | X:1.5 Z:2.5 | X:1.5 Z:2.5 | X:1.5 Z:2.5 |
X/Z axis fast moving speed | mm/min | X:6000 Z:8000 | X:6000 Z:8000 | X:6000 Z:8000 |
X/Z axis Position accuracy | mm | 0.02/0.025 | 0.02/0.025 | 0.02/0.025 |
X/Z axis repeatability | mm | 0.01/0.015 | 0.01/0.015 | 0.01/0.015 |
Processing accuracy | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Workpiece surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
Tailstock sleeve dia. | mm | 65 | 65 | 75 |
Tailstock sleeve travel | mm | 140 | 140 | 140 |
Tailstock sleeve taper | # | MT4 | MT4 | MT5 |
Guide form | Spindle mountain+flat rail | Spindle mountain+flat rail | Spindle mountain+flat rail | |
Total power capacity | KVA | 10 | 10 | 10 |
Machine dimension(L×W×H) | mm | 2500/3000X1500X1650 | 2500/3000X1500X1650 | 2500/3000X1500X1650 |
N.W. | kg | 1500/2000 | 1800/2300 | 2000/2500 |
1. Wide machining range. It can machine straight cylinder, Oblique cylinder,arc and various threads.
2. Various compensation functions, such as linear interpolation,arc interpolation etc.
3. Frequency conversion stepless speed regulation
4. Higher working efficiency, automatic machine with high precision and efficiency

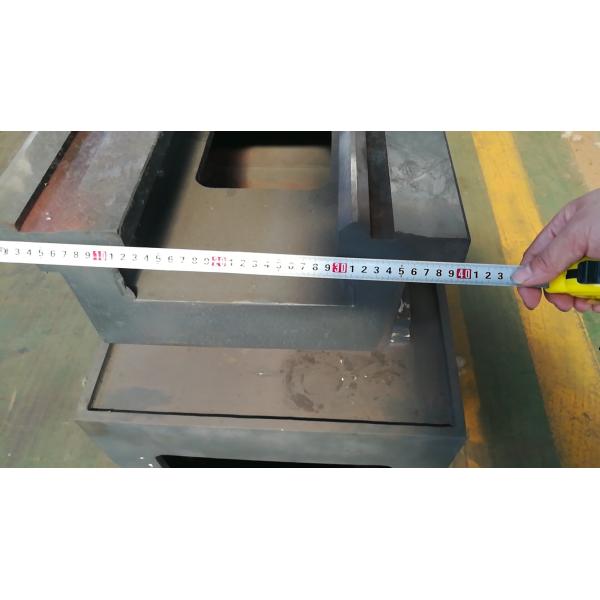

5. Higher rigidity cast iron bed, Harden and ground bed surface
6. Fully enclosed-safety
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
