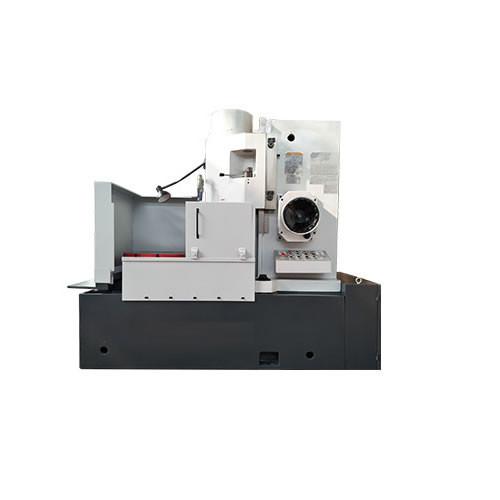

M7475B precision Grinding Machine distance from wheel to table 500 table size400*800
M7475B precision Grinding Machine distance from wheel to table 500 table size400*800
M7475B precision Grinding Machine distance from wheel to table 500 table size400*800
M7475B precision Grinding Machine distance from wheel to table 500 table size400*800
Specifications
Model Number :
M7475B
Certification :
CE,ISO
Place of Origin :
china
MOQ :
1 pieve
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Delivery Time :
10-20 days after received payment
Packaging Details :
Standard export packaging
Name :
M7475B Precision Grinding Machine
Condition :
New
Motor Type :
AC Motor
Warranty :
1 Year
Power(W) :
29.87
Machine weight :
5500kg
Description

M7475B precision Grinding Machine distance from wheel to table 500 table size400*800

M7475B precision Grinding Machine distance from wheel to table 500 table size400*800

1. This machine is high-efficiency flat-surface grinder with round electric-magnetic worktable and vertical wheel-head, with its wheel end-face for grinding. It is mainly used for rough-grinding of stocks or for moderate-accuracy grinding.

2. Wheel and worktable are respectively driven by their individual motors. Each motion is effected by electric control. The nominal diameter of worktable is 750mm.

3. M7475B is based on M7475A, reserving the original advantages of M7475A, and has been improved for its structure and performance, for the convenience of repair.

M7475B precision Grinding Machine distance from wheel to table 500 table size400*800

M7475B precision Grinding Machine distance from wheel to table 500 table size400*800

ITEM UNIT M7475B
Electric-magnetic worktable diameter mm 750
Max. height to be ground mm 300
Max. workpiece weight kg 600
Slide longitudinal travel speed m/min About 4
Slide longitudinal stroke mm 450
Electric-magnetic worktable rotating speed r/min About 13;20 (two steps)
Max. wheelhead vertical stroke mm 380
Wheelhead vertical rapid travel speed mm/min 0.22
Wheelhead spindle speed r/min 1000
Max. auto. feed mm 2.2
Wheelhead travel per revolution of handwheel mm 0.5
Wheelhead travel per scale division of dial mm 0.01
Cylindrical wheel size mm Φ450*φ380*150
Segmental wheel size mm 125*85*125 (R=225, r=190, 8 pcs per 1)
Total motor power kW 29.87
Wheelhead motor power kW 25
Coolant pump power kW 0.25
Overall dimensions (L*W*H) mm 2715*1180*2230
Machine weight (Net weight) kg 5500
Thickness uniformity mm 0.01
