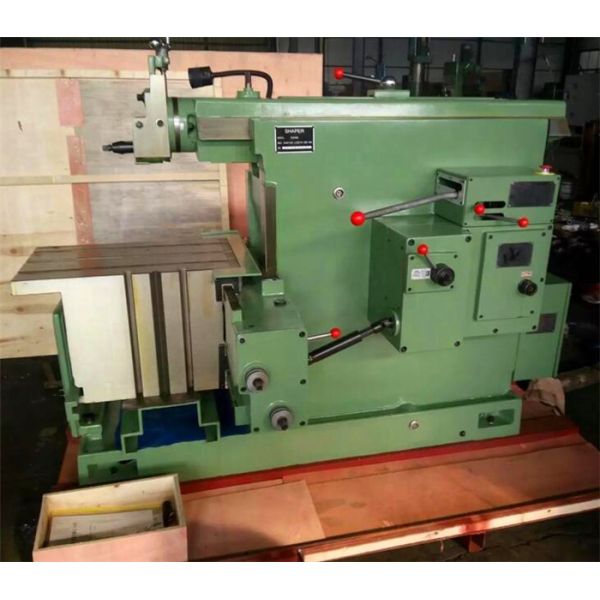

BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194
Specifications
Model Number :
BC6050
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
25-30 days
Packaging Details :
Plywood Case
Supply Ability :
50 sets/month
Maximum cutting length(mm) :
500
Max.range of the horizontal movement of the table :
500
Max.distance between the ram bottom and table :
370
Max.length of the vertical movement of table :
270
Dimensions of table top(L×W) :
440×360
Max.stroke length of the toolhead :
120
Max.swivel angle of the toolhead :
±60°
Max.section of tool(W×T)(mm) :
20×30
Width of the T-slot for center positioning(mm) :
18
Power of the main motor :
3
N.W/G.W(kg) :
1650/1760
Overall dimensions(L×W×H)(mm) :
2160×1070×1194
Description

BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194


BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194

1. The worktable can about rotate angles, meanwhile, it is equipped with horizontal and lifting mechanism for planing inclined plane which enlarge its using scope.
2. It is convenient to adjust feedings and change tool path by adopting cam mechanism as feeding system.
3. The shaper has installed protections against overloading inside the tool path system, due to careless operation or external influences and overload cutting, the blade will slide automatically, non-destructive parts will work to ensure the normal operation of the machine.
4. The RAM, rail bed, speeding gear and major sliding guide are all lubricated by the oil pump.
5. The shaper has parking brake mechanism, therefore, it is unnecessary to cut off electric power when changing speed, starting and stopping the machine

BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194

Model BC 6050 BC 6063 BC 6066 BC6085 BC60100
Maximum cutting length(mm) 500 630 660 850 1000
Max.range of the horizontal movement of the table 500 630 630 400 800
Max.distance between the ram bottom and table 370 385 385 710 400
Max.length of the vertical movement of table 270 360 360 360 380
Dimensions of table top(L×W) 440×360 630X400 660X400 800X450 1000×500
Max.stroke length of the toolhead 120 120 120 160 160
Max.swivel angle of the toolhead ±60° ±60° ±60° ±60° ±60°
Max.section of tool(W×T)(mm) 20×30 20×30 20×30 30*45 30×45
Number of ram reciprocation per minute 14-80 14-80 14-80 14-80 14-80
Range of table feed: horizontal 0.2-0.25 0.4-5.0 0.4-5.0 0.25~3 0.3~3
Vertical 0.08-1.00 0.08-1.00 0.08-1.00 0.12~1.5 0.15~0.5
Width of the T-slot for center positioning(mm) 18 18 18 22 22
Power of the main motor 3 3 3 5.5 7.5
N.W/G.W(kg) 1650/1760 1750/1870 1800/1920 2940/3090 4600/4800
Overall dimensions(L×W×H)(mm) 2160×1070×1194 2342×1225×1480 2357×1225×1480 2950x1325x1693 3640×1575×1780

BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194

BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194

BC6050 BC6063 Metal Shaper Machine , Horizontal Shaper Machine 2160×1070×1194

Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
