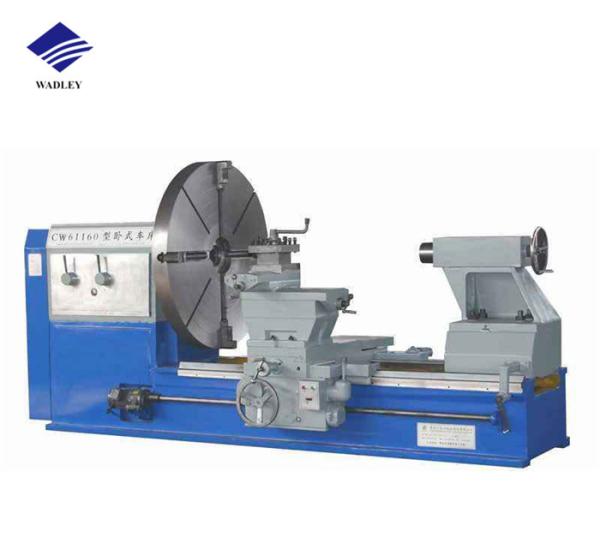

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm
Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm
Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm
Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm
Specifications
Brand Name :
wadley
Model Number :
CW61125
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets/monthe
Delivery Time :
20-25 days after received payment
Packaging Details :
polywood case
Name :
CW seriers Lathe
Max. swing over bed :
1250mm
Max. swig over cross slide :
865mm
Max. length of work piece :
1500/3000/4000/5000/6000mm/8000/10000/12000
Width of bed :
550mm
Spindle motor :
15kw
Spindle bore :
130mm
After-sales Service Provided :
Overseas service center available
Description

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

These lathe can perform to turn end faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides can be operated individually by power for cutting short taper surface, also, can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover, the machines may be used for drilling, boring and trepanning.

They have characteristics of high power, high spindle speed, high rigidity. The various ferrous and non-ferrous metals parts maybe turned through the heavy outing by carton alloy tools.

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

• High spindle torque.

• Swing over bed from 1600mm

• Head stock with hydraulic cluth.

• Hardened and ground guideway.

• Main motor power:22kw.

• Spindle box and feeding box adopt oil pump shower type lubrication.

• Lathe noise step is less than 85A.

• Lathe tailstock sleeve adopts metric 80.

• Safety, stable, hardness, high speed, rigidity and long life service.

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

MODEL CWA61100 CWA61125 CWA61140 CWA61160
Max.weight of workpiece 8T
Max.swing over bed 1000mm 1250mm 1400mm 1600mm
Max.swing over cross slide 620mm 870mm 1000mm 1200mm
Center distance 1.5m 2m 3m 4m 5m 6m 8m 10m 12m
Width of bed 780mm
HEAD STOCK
Spindle hole 130mm
Spindle taper metric 140#
Spindle speeds 3.15-315r/min or 2.5-250r/mm.types of rev:forward 21,backward 12
GEAR BOX-THREADS&FEEDS
Metric threads range(kinds) 44 types 1-120mm
Inch threads range(kinds) 31types 1/4-24 tooth/hour
Moudle threads range(kinds) 45types 0.5-60mm
Diametral threads range(kinds) 38types 1/2-56DP
Longitudinal feeds range(kinds) 56types0.1-12mm
Cross feed range(kinds) 56types 0.05-6mm
Rapid feed:Long/Cross 3400mm/min,1700mm/min
TOOL-POST
Distance between Center & Tool 48mm
Tool section 45*45mm
CARRIAGE
Cross slide travel 650mm
Compound rest travel 280mm
TAILSTOCK
Sleeve diameter 160mm
Sleeve taper metrics 80#orM6#
Sleeve travel 300mm
MOTOR
Main motor 22kw
Coolant motor 0.15kw
Rapid feed motor 1.5kw

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

Q1. What machines can be available in your factory?
A. We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. For example:
CW61160,CW61200,CW6163,CW6263,CW6180Q,CW6280Q,CAK50 SERIE ,CAK80 SERIES,and so on.

Q2. What is your minimum order quantity and warranty?
A. MOQ is one set, and warranty is one year.

Q3. How' s your after-sale service?
A. Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

Q4. What is the package? Is it suitable for shipment?
A. Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.

Q5. Are you manufacturer?
A. Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
