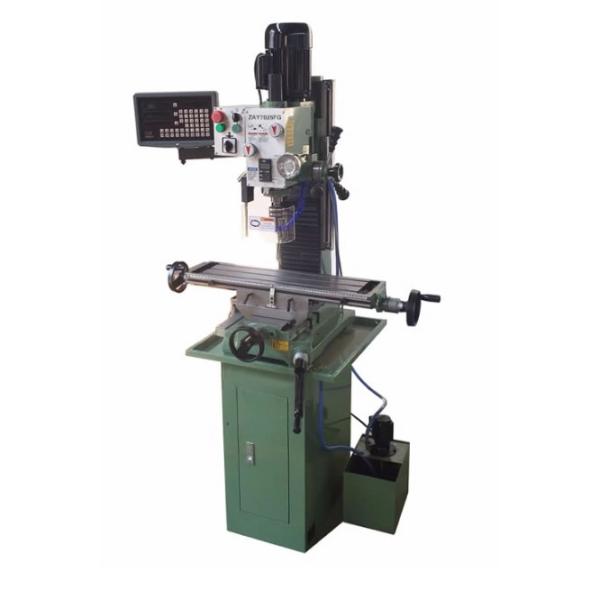

ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench
ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench
ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench
ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench
Specifications
Model Number :
ZAY7025FG
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 pieve
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability :
200 pcs/month
Delivery Time :
10-20 days after received payment
Packaging Details :
Standard export packaging
Name :
ZAY7025FG Drilling And Milling Machine
Condition :
New
Power(W) :
370
Voltage :
Customed
Warranty :
1 Year
Dimension(L*W*H) :
630*720*995mm
Description

ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench



ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench

ZAY7025FG Drilling Vertical Mini Milling Machine
1. Gear-driven and round column
2. Milling,drilling,tapping,boring and reaming
3. Headstock swivels ±360° Vertically
4. Mirco feed precision
5. Adjusable gibs on table precision
6 .Strong rigidity ,powerful cutting and precisely positioning
ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench
ZAY7025FG Milling And Drilling Machine Machining Parts Gear Head Manual Bench

ITEM
ZAY7025FG
ZAY7032FG
ZAY7040FG
ZAY7045FG
Max Face mill capacity
25mm
32mm
40mm
45mm
Max End mill capacity
63mm
63mm
80mm
80mm
End milling capacity
20mm
20mm
32mm
32mm
Max.distance from spindle nose to table
445mm
450mm
450mm
450mm
Min.distance from spindle axis to column
203mm
260mm
260mm
260mm
Spindle travel
85mm
130mm
130mm
130mm
Spindle taper
M.T.3 or R8
M.T.3 or R8
M.T.4 or R8
M.T.4 or R8
Step of spindle speed
6
6
6
6
Range of spindle speed 50Hz
95-1420 r.p.m
80-1250 r.p.m
80-1250 r.p.m
80-1250 r.p.m
60Hz
115-1700 r.p.m
95-1500 r.p.m
95-1500 r.p.m
95-1500 r.p.m
Swivel angle of headstock(perpendicularly)
90°
90°
90°
90°
Table size
520×160mm
800×240mm
800×240mm
800×240mm
Forward and backward travel of table
140mm
175mm
175mm
175mm
Left and right travel of table
290mm
500mm
500mm
500mm
Motor Power
0.37KW
0.75KW(1HP)
1.1KW(1.5HP)
1.5KW(2HP)
Net weight/gross weight
180kg/240kg
320kg/370kg
323kg/373kg
325kg/375kg
Packing size
680×750×1000mm
770×880×1160mm
770×880×1160mm
770×880×1160mm
