X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification
X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification
X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification
X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification
Specifications
Model Number :
X6432
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 pieve
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability :
300 pcs/month
Delivery Time :
15-20 days after received payment
Packaging Details :
Standard export packaging
Name :
Milling machine X6432
Condition :
New
Type :
Vertical
Voltage :
Customer Requirement
Warranty :
1 Year
Weight :
2900 KG
Description

X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification



X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification

The X6432 milling machine base castings are rigid and accurate. The spindle drive and feed drive are both 18-speed gear shifting. They have a wide range of shifting and can be used to machine housings and molds.
1. The work surface and the guide rail are quenched by super audio;
2. It can realize two processing functions of vertical and horizontal milling;
3. Two-section rotary milling head and spindle can be rotated and adjusted at any angle;
4. Workbench X and Y are gear feed automatic feed, Z direction is electric lift.


X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification


X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification

Specification Unit X6432 X6432B
Table size mm 320×1325 320×1600
Max Longitudinal travel(manual/auto) mm 700/680 900/880
Max transverse travel(manual/auto) mm 255/240
Max transverse vertical travel(manual/auto) mm 320/300
Max rotary angle ±45°
T-Slots(N/W/D) 3/18/70
Spindle hole taper mm 7:24 ISO50
Distance from Horizontal spindle axis to table surface mm 30-350
Distance from vertical spindle nose to table surface mm 190-510
Distance from vertical column to table center mm 470-215
Distance from spindle center line to arm surface mm 155
Speed steps (V):12 (H):18
Spindle speed range r.p.m (V)60-1750 (H)30-1500
Table feed steps 18
Table feed range-Longitudinal mm/min 23.5-1180
Table feed range-Cross mm/min 23.5-1180
Table feed range-Vertical mm/min 8-394
Table rapid moving speed-Longitudinal/Cross mm/min 2300
Table rapid moving speed-Vertical mm/min 770
Main motor power kw (V)4 (H)7.5
Main motor speed r.p.m 1440
Feed motor power Kw 1.5
Feed motor speed r.p.m 1440
Net Weight Kg 2900 3000
Overall sizes mm 2294×1770×1780

2294×2050×1780

X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification

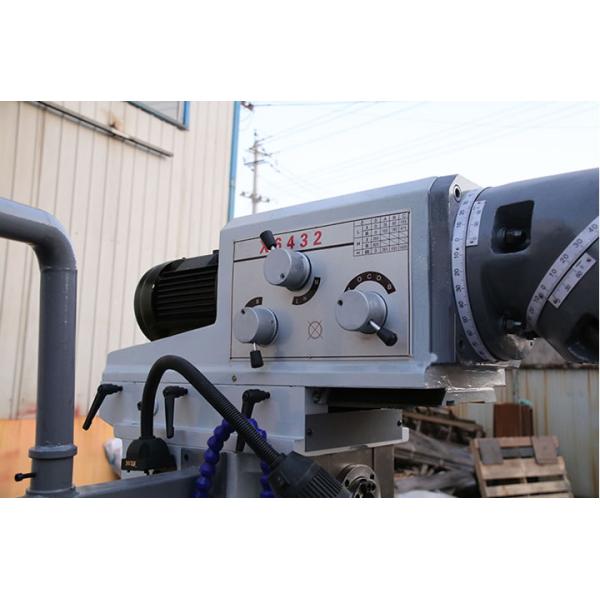

Swivel Head Milling Machine X6432
1. vertical and horizontal multifunctional milling
2. This milling machine with universal milling head which can swivel 360 degress,can be add slotting head.
3. Table swivel 45°, Multi-angle processing.
4. Gear drive , Auto feed on two axis,motorized lift on Z axis
5. Hardened on x, y, z axis,Rectangular guideway, stable, good rigidity.
6. Ball screws can be ordered instead of standard leads screws at special request.

X6432 Ram Heavy Duty Swivel Head Milling Machine CE Certification
