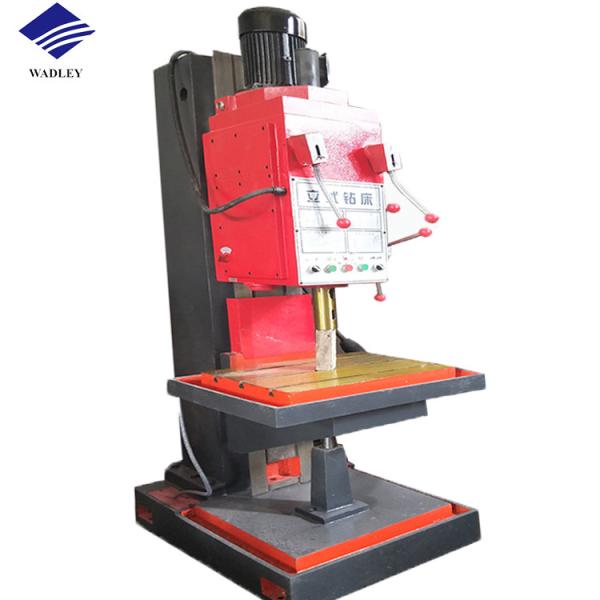

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed
Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed
Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed
Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed
Specifications
Model Number :
Z5125
Certification :
ce,Iso
Place of Origin :
china
MOQ :
1 pieve
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 pcs/month
Delivery Time :
10-15 days after received payment
Packaging Details :
Standard export packaging
Name :
Z5125 drilling machine
Condition :
New
Voltage :
110V/220V/380V
Power(W) :
3KW
Spindle speed :
50~2000r/min(9)
Working table stroke :
310mm
Weight :
1300KG
Warranty :
1 Year
Description

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed

1. This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..

2. This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed

specifications Z5125
Max drilling diameter 25mm
Max feed resistance 9000N
Max. spindle allowable torque 160N.m
Spindle taper Morse No. 3
Distance from spindle axis to column guideway 280mm
Spindle travel 200mm
Spindle box travel 200mm
Spindle speed 50~2000r/min(9)
the amount of feed(mm/rev) 0.056-1.80 mm/r(9)
Working table stroke 310mm
Working table surface size 400×550mm
Distance from spindle nose to table surface 710mm
Main motor power 2.2kw
Cooling pump flow 25L/min
Overall dimension 962×847×2300mm
N/W 1300kg

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed

Z5125 Milling And Drilling Machine Drill Hole Diameter 25mm Automatic Feed
