Specifications
MOQ :
1 pieve
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Delivery Time :
10-15 days after received payment
Packaging Details :
Standard export packaging
Model Number :
Z5032
Supply Ability :
500 pcs/month
Certification :
CE,ISO
Place of Origin :
china
Name :
Z5032 bench drilling machine
Condition :
New

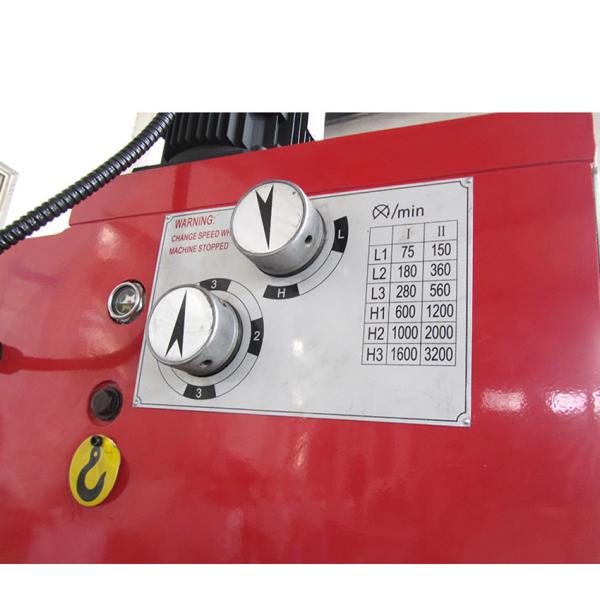

Drilling Speed :
75-3200
Warranty :
1 Year
Voltage :
customer requested
Spindle taper :
M.T.3 or R8
Description

Manual hand drilling machine Round column drill Z5032 bench drilling machine

Manual hand drilling machine Round column drill Z5032 bench drilling machine

The machine tool has the functions of drilling, reaming, reaming, tapping, boring and other processing functions, and has the advantages of large drilling capacity and large size range of the parts to be processed. Therefore, it is not only suitable for the parts processing workshop, but also for the use of machine repair workshops.

Manual hand drilling machine Round column drill Z5032 bench drilling machine

Manual hand drilling machine Round column drill Z5032 bench drilling machine

Specifications Z5032 Z5040 Z5045
Max.drilling dia. 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 M.T.4
Spindle travel 130mm 130mm 130mm
spindle speed steps 6 6 6
spindle speed range 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m

Min.distance from spindle axis to

column

 283mm 283mm 283mm

Max.distance from spindle nose to

worktable

 725mm 725mm 725mm

Max.distance from spindle nose to

stand table

 1125mm 1125mm 1125mm
Max.travel of headstock 250mm 250mm 250mm
Swivel angle of headstock
(horizontal/perpendicular)		 360°/±90° 360°/±90° 360°/±90°
Max.travel of worktable bracket 600mm 600mm 600mm
Worktable size of avaliablity 380×300mm 380×300mm 380×300mm
Swivel angle of table horizontally 360° 360° 360°
Table leaned ±45° ±45° ±45°
Size of stand worktable of avaliability 417×416mm 417×416mm 417×416mm
Motor Power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
speed of motor 1400 r.p.m 1400 r.p.m 1400 r.p.m
Net weight/Gross weight 430kg/480kg 432kg/482kg 435kg/485kg
Packing size (mm) 1850×750×1000 1850×750×1000

1850×750×1000

Manual hand drilling machine Round column drill Z5032 bench drilling machine

The headstock and table bracket of the machine tool can be lifted up and down along the column, and can be rotated by ±1800 around the column. The table can also be rotated by ±1800 in the bracket. The headstock and table can also be rotated by ±450 in the transverse plane. Therefore, the operation of this machine is light, flexible and reliable.

1. Heavy,solid cast iron construction.
2. High true running accuracy due tohardened and ground work spindle.
3. Smooth running and stability due to a largely dimensioned,thick walled casting column.

Manual hand drilling machine Round column drill Z5032 bench drilling machine

Manual hand drilling machine Round column drill Z5032 bench drilling machine

Manual hand drilling machine Round column drill Z5032 bench drilling machine

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
