Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting
Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting
Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting
Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting
Specifications
Model Number :
Tile Forming Machine
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets / month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Brand Name :
WADJAY
Condition: :
New
Power: :
7.5 Kw
Voltage: :
380V Or As Customize
Dimension(L*W*H): :
7500*1700*1600Mm
Weight: :
6.5T
thickness: :
0.3-0.7mm
Description

Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting

Product Description

name:strut galvanized u beam steel c channel purlin roll forming machine
Tile Type:Steel
Use:ROOF
feeding width:as customers requirement
color:Customized
operate style:automatic
profiles:as customers requirement
cutting blade material:cr12 with quenched treatment
Warranty:1 Year
Production Capacity:8-15M/Min

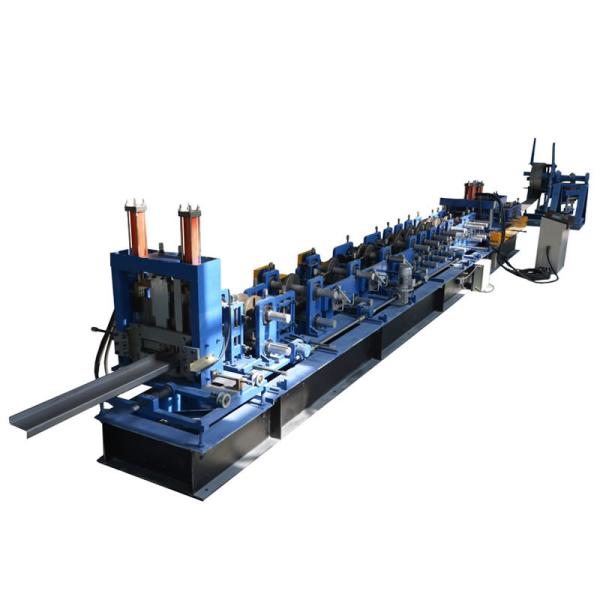

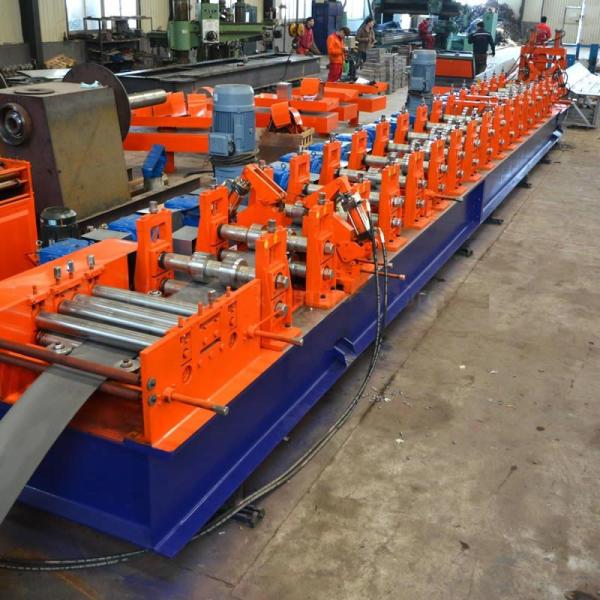

Here is the new CZ purlin roll forming machine for foreign customer as below, this machine total has 25 rows roller, because it is about 15 meters long, so in order to load to container more easier, the machine need to assembled by two parts, the material thickness for the CZ purlin is 1.5-4.2mm.

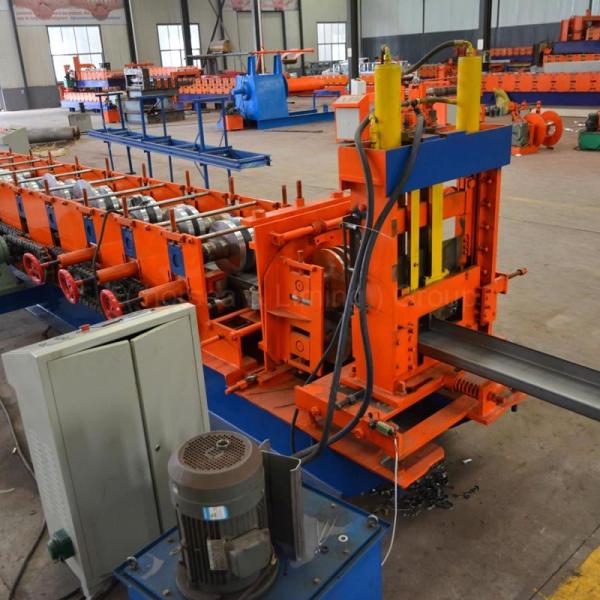

Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting

Feeding table has 3 set roller to make the strip flattening, and the punch machine can punch any size hole at bottom or side of the product as customer’s request.

Main Features

1)Adjustability. We can adjust the size of web, flange and lip arbitrarily according to your need.

2) No limited cutter. We don’t need to change cutting blade when we change models. No burr and low noise.

3) Quick change model automatically, break the traditional method of loosing bolts and changing moulds.

4)The coaxial design. This design reduces the problems caused by off-axis on both sides of unequal height.

5)All the datas is adjustable and set up in PLC computer program (Delta or Mitsubishi)

Strut Galvanized U Beam Steel C Z Channel Purlin Roll Forming Machine Hydraulic Profile Cutting

Technical Parameters:
No. Item Specification
1 Can Formed Material GI.
2 Equipment operation Automatic
3 Voltage 380V 50Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.8mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 4500mmx800mmx1200mm
8 Speed 25m/min
9 Diameter of shaft 40mm
10 Weight of the Machine 2500-3500KGS
11 Material of rollers Cr12
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw
