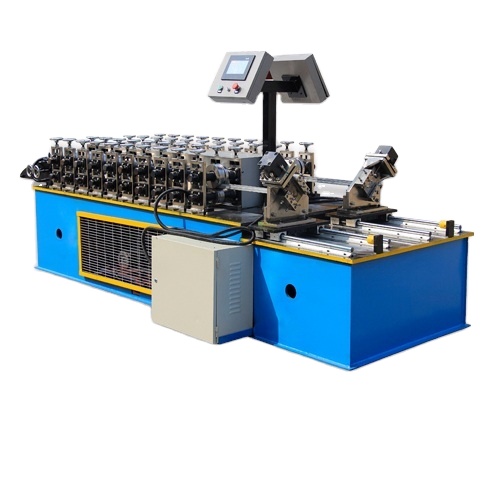

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
Specifications
Model Number :
Tile Forming Machine
Certification :
ISO
Place of Origin :
China
MOQ :
10 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets / month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Brand Name :
WADJAY
Condition: :
New
Production Capacity: :
5-20m/min
Dimension(L*W*H): :
5.5*1.4*1.5m
Rolling thinckness: :
0.3-0.8mm
Feeding width: :
105mm
Weight: :
3.2tons
use: :
roof and wall
cutting: :
hydraulic cutting
Description

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

Product Description

C and U shape Roll Making Line Light Steel Stud Frame Form Machine

Voltage:as the clients requirement
Certification:CE ISO BV
Warranty:3 years
Core Components:Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, PLC
color:Any color
control system:PLC

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand

2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
3.Technical parameters
1)Profile
thickness:0.3--0.8mm or 1--2mm
2)inner tight decoiler
A.coil inner diameter:350mm--450mm
B.max width of coiling:400mm
C.max weight of loading:5000kg

3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:25m/min
D.Voltage:380v,50hz
E.Roller station:15

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

4)cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no

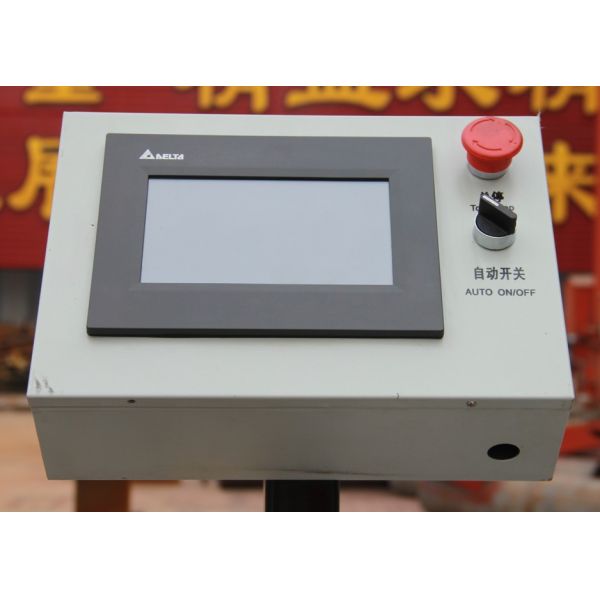

5)control system

A.PLC: taida form Taiwan

B.Coder:from south korea

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

6)hydraulic system

A.advanced hydraulic system
B.Power:3kw

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles
