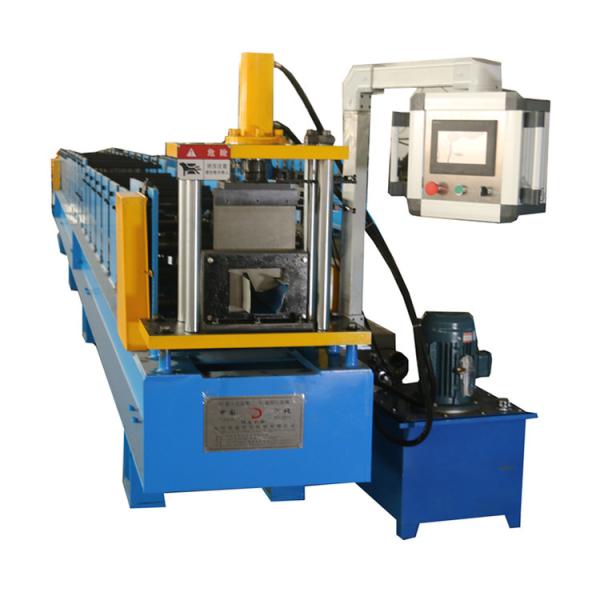

PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine
PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine
PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine
PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine
Specifications
Model Number :
Tile Forming Machine
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Brand Name :
WADJAY
Condition: :
New
Production Capacity: :
8-15M/Min
Voltage: :
380V 50Hz 3phases
Dimension(L*W*H): :
7500*1700*1600Mm
Thickness: :
0.3-0.8mm
Shaft material: :
High Grade No.45 Forged
Description
Product Description

PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine

1. Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine
2.Panel drawing for your reference.
For quotation with detail specification,please send us drawing of gutter.We can make machine according to your profile.

PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine

Product Description

3.Technique parameters for the water gutter machine

steel roofing metal water gutter roll forming making machine
Suitable raw material PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet 0.3-0.8mm
Feeding Coil width as drawing
Effective width as drawing
Under frame 300H-beam
Diameter of Soild shaft 70mm, high grade 45# steel,with keyway
Roller 45# steel hard chrome coated 0.05-0.07mm
Thickness of middle plate 18mm
Forming stations 16
Drive type By chain(1.0 inch) link bearing model 6210
Power of main motor 4kw,Lichao, Shanghai
Power of pump station 4kw, Lichao, Shanghai
Forming speed About 10-15m/min
Hydraulic cutting Controlled by PLC
PLC DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade Cr12Mov, quenching 58-62℃

The equipment includes:
Roll forming machine,
1 set
Hydraulic cutter
1 set
Electrical control system
1 set
Hydraulic system
1 set
Hydraulic system
2 PC 1m*1m
Manual decoiler
1 set Max loading 5Ton

PLC-controlled roll forming machine Galvanized Ridge Roofing Sheet Gutter Roll Forming Machine
