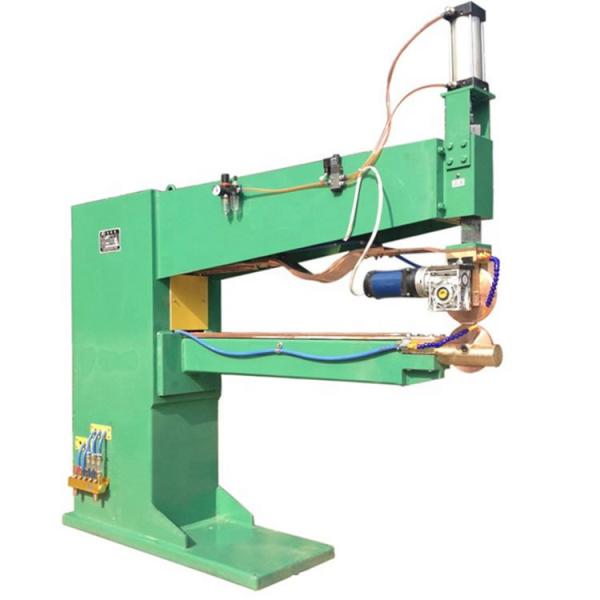

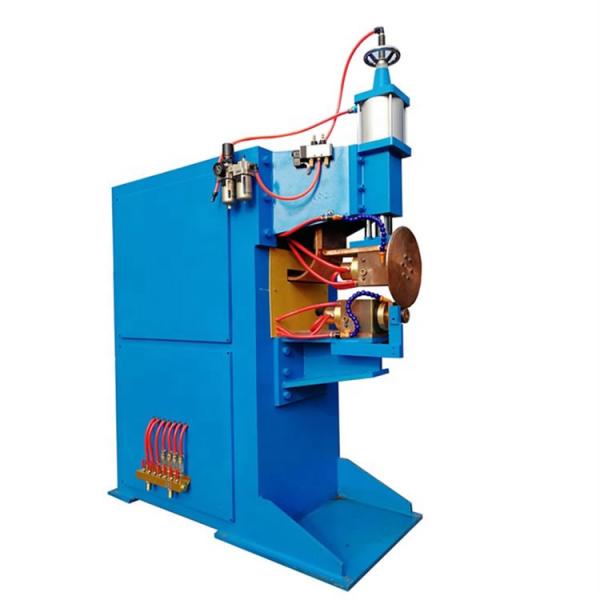

FN-35 Transverse Seam Welder For Horizontal Workpieces And Circumferential Ring Welds
FN-35 Transverse Seam Welder For Horizontal Workpieces And Circumferential Ring Welds
FN-35 Transverse Seam Welder For Horizontal Workpieces And Circumferential Ring Welds
FN-35 Transverse Seam Welder For Horizontal Workpieces And Circumferential Ring Welds
Specifications
Model Number :
FN-35
Certification :
CE,ISO
Place of Origin :
china
MOQ :
1 pieve
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
90 sets / month
Delivery Time :
15-20 days after received payment
Packaging Details :
Standard export packaging
Name :
Seam Welding Machine FN-35
Warranty :
1 Year
Condition :
New
Welding Thickness :
0.4-1.0mm
Welding Diameter :
50-800mm
Arm length :
600mm
Description

FN-35 transverse seam welder for horizontal workpieces and circumferential ring welds

FN-35 Transverse Seam Welder For Horizontal Workpieces And Circumferential Ring Welds

Cross sea longitudinal seam and horizontal and vertical seam.Economical seam welder FN-35, seam welder for duct, seam welding machines.
The speed of welding is quick and the efficiency of welding is high.
According to the clients' demand, set the function of continuous weld and pulse weld.


FN-35 Transverse Seam Welder For Horizontal Workpieces And Circumferential Ring Welds

Item type
FN-35
FN-55
FN-75
FN-100
Thickness
0.4-1.0mm
0.4-1.2mm
0.4-1.5mm
0.4-2.0mm
Max. input capacity
45KVA
55KVA
75KVA
110KVA
Max. short curcuit current
6200A
11000A
16000A
26000A
Max. pressure of electrode
400KGF
600KGF
1000KGF
1000KGF
The flow of cooling water
6L/min
6L/min
8L/min
8L/min
Arm length
600mm
600mm
600mm
600mm
Electrode journey
80mm
80mm
80mm
80mm
Speed of welding
0.5-3m/min
0.5-3m/min
0.5-3m/min
0.5-3m/min
Weight
328kg
378kg
428kg
478kg
Dimension
1800X610X1930mm
1800X610X1930mm
1800X610X1930
mm
1800X610X1930mm
