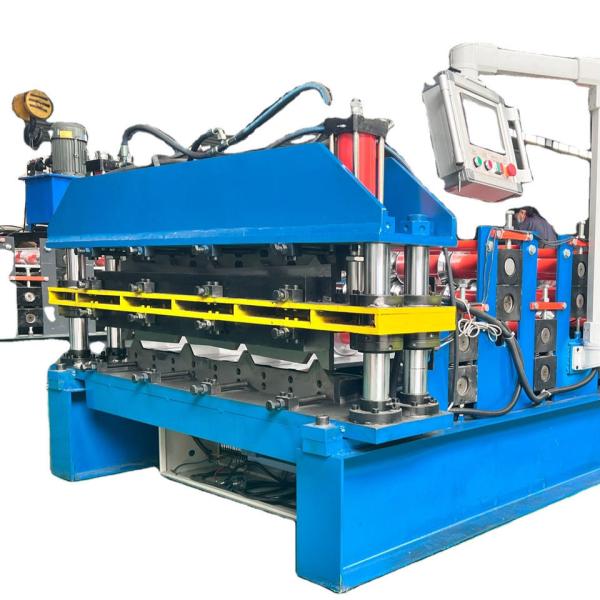

Automatic Corrugation Roofing Sheet Making Machine 0.3-0.8mm Glazed Color steel roof tile making machine
Automatic Corrugation Roofing Sheet Making Machine 0.3-0.8mm Glazed Color steel roof tile making machine
Automatic Corrugation Roofing Sheet Making Machine 0.3-0.8mm Glazed Color steel roof tile making machine
Automatic Corrugation Roofing Sheet Making Machine 0.3-0.8mm Glazed Color steel roof tile making machine
Specifications
Brand Name :
WADJAY
Model Number :
galvanized sheet making machine
Certification :
ce
Place of Origin :
china
MOQ :
1 set
Price :
$5950
Payment Terms :
T/T
Delivery Time :
5-8 working days
Packaging Details :
wooden case
name :
galvanized sheet making machine
Production Capacity: :
0-15m/min
Voltage: :
415v/50hz, three phraze
Dimension(L*W*H): :
6.5m *1.5m *1.6m
Weight: :
3000kg
Rolling thinckness: :
0.3-0.8mm
Feeding width: :
914mm
Driving Mode: :
single chain 1 inch
Material of Cutter: :
Cr12
Heat treatment: :
HRC58-60℃
Description
Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.

This Automatic PPGI GI PPGL GL Corrugated Iron Sheet Trapezoidal IBR Profile Roofing Roll Forming Machine Mainly using for PPGI GI PPGL GL Materials in the building materials, which can brings you more profits in future. Cause its special outlook, which is popularity in many fields.

Below one is the most popularity one roll forming machine, which feed in is for 1200mm, which can satisfied large width demands, and more effect area. And its design is mainly for Corrugated and Trapezoidal, which is more attracts more person interested.

If you prefer customized the special design for the roll forming machine, you can also share with us, which may try our best to satisfied.

Model Dimension Power&Volts Layer Machine design voltage
YT-C2 6000*1400*1300 7.5KW 1 As customized 380v/220v/110v

Automatic Color Steel IBR Profile Roof Sheet Tile Making Roll Forming Machine Producing process:

Material supporting frame→Molding core→Hydraulic system→Automatic control system→Automatic shearing mechanism→Roll forming receiving tables

Features of Automatic Color Steel IBR Profile Roof Sheet Tile Making Roll Forming Machinery Price:

1. More stable frame for the machine, which we can customized as your prefer one or our standrad one all is ok.

2. Blade customized, if you have any more questions about the blade, or which type you prefer, you can also share with us, always welcomes for customized.

3. Plc customized. Which we also could be customized for you , such as english, spanish, or the Poland, all is ok.

4. The ran out table place, which we can all customized for you. just share with you prefer one is ok.

Packing List of Automatic Color Steel IBR Profile Roof Sheet Tile Making Roll Forming Machinery Price:

(1) Main Machine,

(2) Hydraulic System,

(3) Forming Cutter

(4) PLC Computer Controlling System,

(5) Run Out Table

(6)Manual in English

Detailed Images

Tile making roll forming machine details pic:

More Details Pic of Tile Making Roll Forming Machine:

Blade of tile making roll forming machine

Cutting Way:Hydraulic shear

Material of blade:Cr12

PCL control of tile making roll forming machine

PLC have different processing can be customized, like Simens, Schneider, Omron etc.

counter of tile making roll forming machine

Mainly to counting piece of tiles. If customer want produce 1 shape tile 5 pieces, counter will have memory to give signal to PLC, after 5 pieces reached, stop automatically, very automated.
Motor of tile making roll forming machine

Robber roller of tile making roll forming machine

Drive mode: 1inch chain

Sidewall:14mm 45# steel plate

Material of rollers: 45# forging steel

Material of shafts: 45# steel with finish turning

Diameter of shafts: φ60mm

Number of rollers : 11rollers

Hydraulic Station of tile making roll forming machine

After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Power:3kw

Customized Double Layer Color Steel Pressure Tile Making Machine Design:

Tile making machine finished panel:

When you make order, we will as the design for we confirmed before, measure all for you, once the machine finished.

Other design of tile making roll forming machine, we also could customized to you, just share us your details about:

1)Your details design of tile making roll forming machine.

2)Raw materials of tile making roll forming machine

3)Thickness of tile making roll forming machine

Tile making machine making possess:

Related Products

Most common seen is C Purlin roll forming machine:

Omega Profile making machine:

Hydraulic Decoiler machine

Buyer Feedback

Feedback pic of tile making machine from Malaysia customer:

Feedback pic of roof roll forming machine from Thailand customer:

Feedback pic of roof roll forming machine from Colombia customer:

Packaging & Shipping

Packing of Roof Roll Forming Machines: Usually because it is very large, shipping by containers, which will be more convenient and safty.

Shipping of Roof Roll Forming Machines: You can choice use our agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
