High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler
Specifications
Brand Name :
wadley
Model Number :
HG 505
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets / month
Delivery Time :
15 working days
Packaging Details :
wooden case
Hydraulic Power :
Full Automatic
Raw Material :
Steel Sheet
Function :
Feed Metal Sheet Strip Forth
Extra Services :
Cut to Length
Application :
Steel
Color :
Blue
Description


High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler


High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler

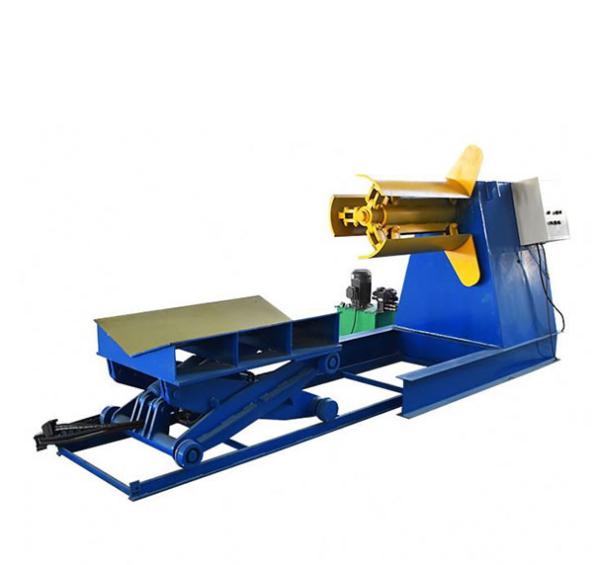

Decoiler With Coil Loading Car:


Decoilers with coil car have capacity ranging from 3 tons to 20 tons and width ranging from 200 mm to 1600 mm.The design of our reels

incorporates a unique "bearing tube" with dual cup and cone Timken bearings to the mandrel and a heavy duty cabinet base. Both motorized and

pull-off type reels are available, depending on the application.Single-end configurations are provided as standard, and Double-ended

configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling

Reels that can be combined with automatic centering functions. Coil handling accessory options include Traveling Coil Cars, Coil Lift Stations,

Traveling Up enders, Coil Storage Racks and Turnstiles.Productivity options include Coil Hold Downs, Hold Downs With Motorized End wheels,

Coil Keepers, Power Coil Guides, and Automatic Back tension Systems.Custom engineering can be provided to meet any application demands.

1.Technical parameters :

Coil inner diameter: 450mm-650mm

Maximum width of coiling: 1250mm

Maximum weight of loading: 5 ton / 10 ton / 15 ton

Hydraulic power: 3kw

Motor power: 3kw

Working speed: 0-15m/min

Oil pump inner diameter: 120mm

Working press: 10Mpa

Voltage: 380V-50HZ-3Phase

Dimension: 3110x1650x1780mm

2.Features :

1. Types available: hydraulic decoiler,mandrel decoiler

2. Adopts hydraulic expand/loosen and hydraulic driving system

3. Easy to operate

4. Suitable for pre-painted coil,cold rolled coil, and galvanized coil


High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler


High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler

Description Specification
hydraulic Pump Station : 3KW
feeding roller's width: 1350mm
Out line dimension of machine: 1.0*0.8*1.1
Total weight: 10t, 5t


High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler

High Quality Steel Coil Decoiling Machine Color Customized Hydraulic DecoilerHigh Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler

High Quality Steel Coil Decoiling Machine Color Customized Hydraulic Decoiler

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
