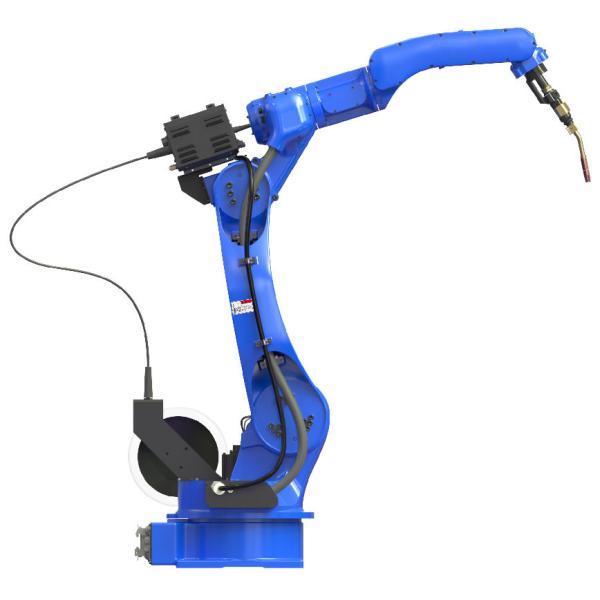

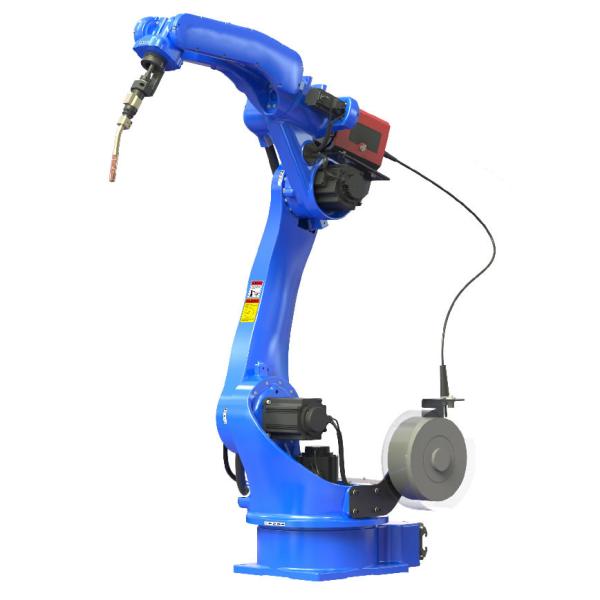

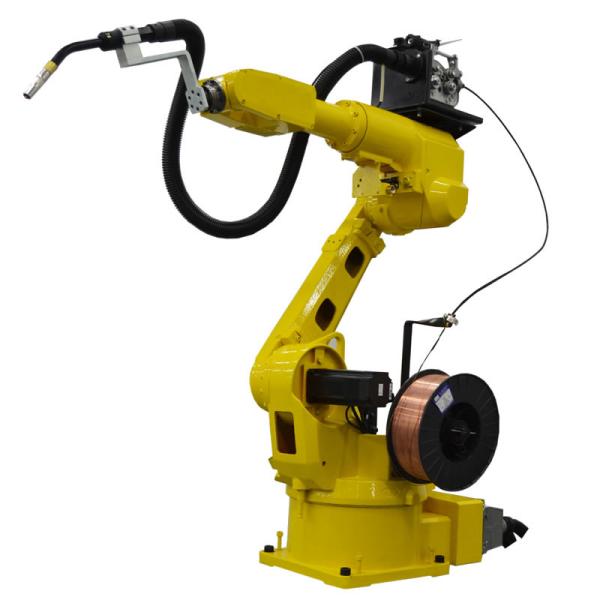

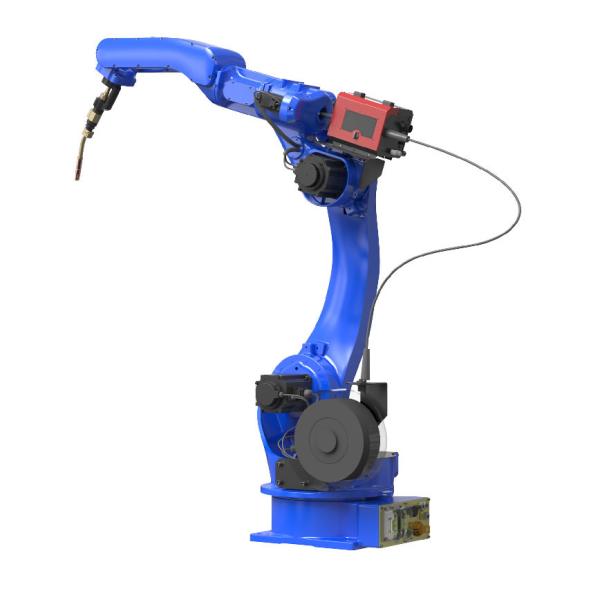

industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
industrial robot arm Factory 6 axis industrial automatic good quality welding robot arm
Specifications
Brand Name :
WADJAY
Model Number :
6 Axis robotic arm
Certification :
CE,ISO 9001
Place of Origin :
china
MOQ :
1 set
Price :
$8000
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Vertical Travel: :
650mm
Horizonal Travel: :
1500mm
Weight: :
157kg
Power: :
AC220V 10V50/60HZ
Warranty: :
1 Year
After-sales Service Provided: :
Online support
Description
Product Overview

Automatic Robot Arm
Besco supply a wide product range including industrial robots ranging from 3kg to 800kg payload (6-axis robot, 4-axis robot,delta robot, Scara Robot,Explosion-Proof robot and other special application robots), welding Positioners, robot walking rail,vision system, etc.
Our Robots Are Widely Applied in welding, Handling, Palletizing, Polishing, Painting, Cutting, Etc.
The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, High Precision, High Expansibility, Easy Operation, Easy Maintenance.
PRODUCT SPECIFICATIONS
Model
HY1006A-145
HY1006A-200
HY1005A-085
HY1020A-168
HY1020B-180
HY1165B-315
Number of Axis
6
6
6
6
4
4
Max.load
6KG
6KG
5KG
20KG
20KG
165KG
Precision
+-0.08mm
+-0.08mm
+-0.03mm
+-0.08mm
+-0.08mm
+-2mm
Battery capacity
3.7KVA
6.5KVA
1.6KVA
8.0KVA
6.0KVA
10.0KVA
Use environment
0-45°
0-45°
0-45°
0-45°
0-45°
0-45°
Machine Weight
170KG
300KG
60KG
330KG
280KG
1500KG
Range of motion
J1
+-165°
+-170°
+-170°
+-170°
+-170°
+-180°
J2
+80°-150°
+80°-150°
+60°-150°
+80°-150°
+125°-+10°
+5°-+130°
J3
+125°-75°
+95°-72°
+205°-50°
+95°-72°
+10°-92°
+15°-60°
J4
+-170°
+-170°
+-130°
+-170°
+-360°
+-360°
J5
+115°-140°
+115°-140°
+-125°
+-120°
/
/
J6
+-220°
+-220°
+-360°
+-360°
/
/
Maximum Speed
J1
145°/S
158°/S
145°/S
140°/S
150°/S
70°/S
J2
133°/S
145°/S
133°/S
140°/S
142°/S
82°/S
J3
145°/S
140°/S
140°/S
173°/S
145°/S
82°/S
J4
217°/S
217°/S
172°/S
172°/S
200°/S
200°/S
J5
172°/S
172°/S
172°/S
172°/S
/
/
J6
500°/S
500°/S
210°/S
332°/S
/
/
Machine Detalies
Our Service
Product tags

robot arm welding machine

,

robotic arm welding machine

,

robotic welding machine specification
