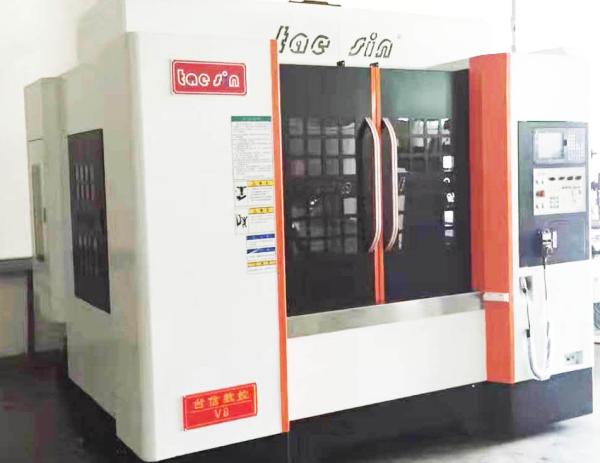

Spindle Speed CNC Horizontal Machining Center Japan Mitsubishi CNC Machines
Spindle Speed CNC Horizontal Machining Center Japan Mitsubishi CNC Machines
Specifications
Brand Name :
Taesin
Model Number :
TXM-500
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000SET
Delivery Time :
15 Day
Packaging Details :
Plywood Box or Nude with Plastic Film
Position Accuracy :
0.01mm
Max Load :
600KG
XYZ Travel :
900/800/800mm
Spindle Speed :
6000RPM
Tool Magazine :
24T
XYZ Rapid Traverse Speed :
24m/min
Weight :
8000KG
Description

Spindle Speed CNC Horizontal Machining Center Japan Mitsubishi CNC Machines

CNC Horizontal Machining Center Features:

Taesin CNC Horizontal Machining Center has Powerful Cutting Capability with Excellent Precision and Performance Makes Drilling and Milling Easy

High Speed, Super Precision and More Reliable Structure; High rigidity, Super Efficient, High Torque and Heavy Cut Features; Make Full Use of Higher Productivity and Precision Processing;

Taesin CNC Horizontal Machining Center use the core components from Germany, Japan, or Taiwan to ensure the long-term stability and durability.T-type Base Structure, High-rigidity and Slide Way Support, Gantry Column, High Rigidity Saddle Base, Strong Spindle Support.

Newly-designed and Fully-sealed Cover: Safe and Convenient Anti-collision Design to Prevent Nut Base, Motor Base and Bearing Base from Colliding with Each Other for Protect the Machine Precision One-piece Oil-water Separation System Ensures that Polluted Lubricant and Coolant Flow Back Separately, and prevent the coolant from being polluted

CNC Horizontal Machining Center Core Components:

● Japan Mitsubishi, Fanuc or Germany Siemens CNC control system
● Japan Mitsubishi, Fanuc or Siemens spindle motor, 3 axes motor
● Taiwan Famous Brand Spindle
● Taiwan HIWIN and PMI Guideway and Ball Screw
● Taiwan Famous Brand 24T Arm Type Tool Magazine
● Japan NSK Bearings

CNC Horizontal Machining Center Technical Data:

Model

TXM-500

X/Y/Z axes Travel

900/800/800mm

Spindle Center To Work Table

0-800mm

Spindle to Work Table Center

125-925mm

3 axes Guide way

Linear way

Work Table Size

500x500mm

Max Loading

600kg

T slot

5*18*100mm

Work Table Speed

5r/min

Spindle Rotation Speed

6000rpm

Spindle Nose Taper

BT50

Tool Magazine

24

Tool Max Weight

8kg

Position Precision

±0.01mm

Repeat Position Precision

±0.006mm

Machine Weight

8000kg
