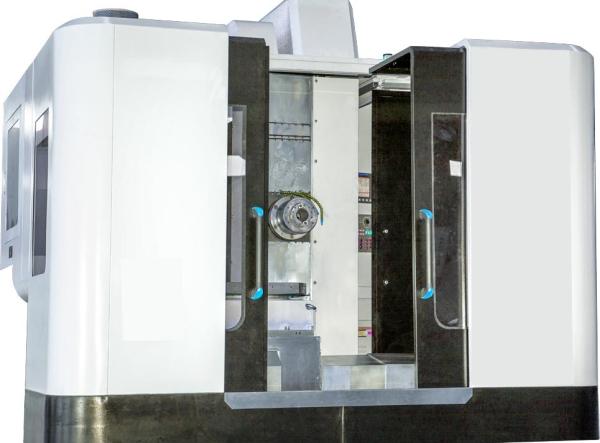

24T Magazine Horizontal Hard Ford CNC Milling Machine Japan NSK Bearings
24T Magazine Horizontal Hard Ford CNC Milling Machine Japan NSK Bearings
Specifications
Brand Name :
Taesin
Model Number :
TXM-630
Certification :
ISO CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000Set/Year
Delivery Time :
15 Days
Packaging Details :
Plywood Box
X/Y/Z Travel :
1000*850*800mm
X/Y/Z Rapid Traverse Speed :
24000mm/min
Spindle Speed :
6000RPM
T-magazine :
24T
Positioning Accuracy :
0.012mm
Repeated Positioning Accuracy :
0.008mm
Description

24T Magazine Horizontal Hard Ford CNC Milling Machine Japan NSK Bearings

TXM-800 Horizontal CNC Machine has the following features: high rigidity, stable performance and high performance-cost ratio.

.

Base with T-type Structure has the advantages of high-rigidity and stability;

Horizontal CNC Machine X/Y/Z Feeding Drive System: High-torque Servo Motor Directly Connected with Φ50 Ball Screw by Coupling; High-Rigidity Transmission Structure.

Spindle Transmission System: Servo Motor Direct Transmission with High-precision Spindle; Lower Noise and Vibration; Continuous Output Power for Higher Processing Efficiency; Specially-designed Taiwan Spindle.

One-piece Oil-water Separation System Ensures that Polluted Lubricant and Coolant Flow Back Separately, and prevent the coolant from being polluted

Horizontal CNC Machine Newly-designed and Completely-sealed Cover: Safe and Convenient

TXM-800 Horizontal CNC Machine Technical Characteristics:

1) Powerful Cutting Capability with Excellent Precision and Performance ensures efficient machining and processing;

2) High Speed, Super Precision and More Reliable Structure;

3)High rigidity, Super Efficient, High Torque and Heavy Cut Features;

4) Super-high Processing Efficiency

TXM-800 Horizontal CNC Machine Technical Data:

Model

TXM-800

3 Axis travel

1000/850/800mm

Spindle nose to table

120-970mm

3 Axis guideway type

linear way

Work table size

630*630mm

Max Loading

800kg

3 axis fast move speed

24m/min

Cutting speed

10-15000mm/min

Spindle rotation speed

6000rpm

Spindle taper

BT50

Position precision

±0.012mm

Repeat position precision

±0.008mm

24T Magazine Horizontal Hard Ford CNC Milling Machine Japan NSK Bearings
