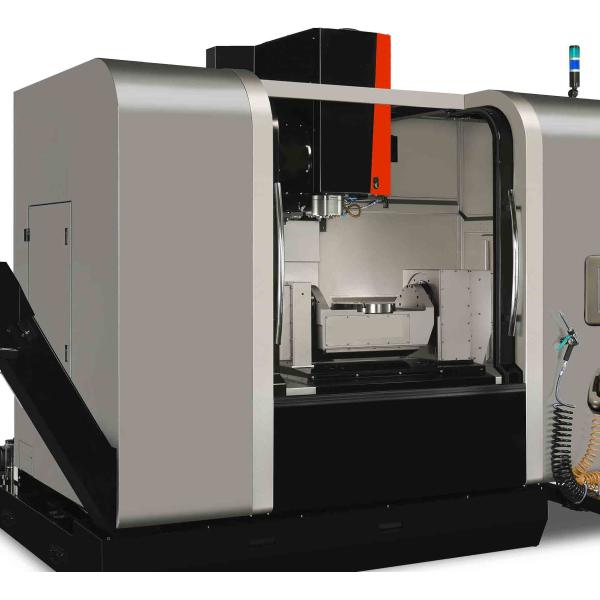

High Precision 5 Axis CNC Machining Center , Five Axis Milling Machine

5 Axis CNC Machining Center Features:

Taesin 5 Axis CNC Machining Center has been through complete FEM analysis, which ensures high rigidity and precision. The symmetric cast iron frame has good effect on minimizing thermal deformation. Stable precision machining and accurate positioning machining can be easy achieved.

Taesin 5 Axis CNC Machining Center has the large machine bed casting, which is good for high cutting performance, long-term accuracy and damping against vibration. The large-size and symmetrically designed bed structure can keep the machine in good geometries and uniform thermal characteristics.

The optimal leveling system gives the pinpoint support for the workload and cutting capability. The design insures facilitates optimized leveling, uniform loading on the leveling pads, less deviation in loading, better support to the structure, enhanced straightness and accuracy, more stability during motion as well as providing smooth, quick, stable axis motion.

Taesin 5 Axis CNC Machining Center tilting rotary table has been newly developed to increase reliability and eliminate redundancy. It is driven by direct drive motors to achieve rapid and accurate positioning as well as smooth interpolation motion. The cradle where the pallet is mounted is supported by the large diameter rotor bearing on the motor side and by a high rigid bearing on the other side.

Coolant is circulated in the B/C-axis motors and bearings to minimize the impact of thermal displacement. The pallet clamp system employs a highly reliable air release method. Strong clamping force further increases cutting capacity.

5 Axis CNC Machining Center Technical Data:
