High Precision 3 Axis CNC Vertical Machining Center , High Speed VMC Machine
High Precision 3 Axis CNC Vertical Machining Center , High Speed VMC Machine
Specifications
Brand Name :
Taesin
Model Number :
T6
Certification :
ISO CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000SET/YEAR
Delivery Time :
15 Days
Packaging Details :
Plywood
X/Y/Z Rapid Traverse Spedd :
60/60/60m/min
X/Y/Z Travel :
500/400/300
Spindle Speed :
20000 (12000 or 15000)
Positioning Accuracy :
±0.003/300 mm
Weight :
3T
Size :
1900mm*2700mm*2400mm
Description

High Precision 3 Axis CNC Vertical Machining Center , High Speed VMC Machine

3 Axis CNC Vertical Machining Center Features:

  1. The machine is made of meehanite casting and the internal rib structure make it much stronger and stiffer(30% higher);

  2. The whole casting CNC Vertical Machining Center is much stable and vibration-resistant.

  3. The surfaces are hand-scraped precisely to improve the flatness and geometric accuracy.

  4. The spindle is from Taiwan directly with highest quality

  5. Machine base is integrated casting structure, which make no oil leakage;

  6. Compact&Exquisite Design for the CNC Vertical Machining Center;

  7. X/Y/Z Axis: Taiwan Class P linear guide way; X/Y Axis: ball linear guide way; Z Axis: roller linear guide way;

  8. Spindle High Speed: 12000rpm;

  9. Tool Storage: BT40/24

  10. Back-type chip conveying system to save space;

  11. Special machine column design to ensure the stability when doing high-speed traverse;

  12. Faster Tool Change: 2.0S (20T Magazine);

3 Axis CNC Vertical Machining Center Core Components:

All the core components are from Taiwan, Japan or Germany, which make our CNC Vertical Machining Center perform much better than others in China.

CNC Control System: Mitsubishi, Fanuc or Germany Siemens

3 Axis Motor Brand: Mitsubishi, Fanuc or Siemens

Spindle Brand: Taiwan

Guideway Brand: Taiwan HIWIN and PMI Guideway and Ball Screw

Bearing Brand: NSK

3 Axis CNC Vertical Machining Center Technical Data:

Model

TXC-T6

X/Y/Z axes Travel

600/400/300mm

Spindle Nose To Work Table

150-450mm

Distance between center to column

400mm

3 axes Guide way

X/Y/Z: Linear way

Work Table Size

700x420mm

Max Loading

250kg

3 axes Rapid Traverse Rate

60/60/60m/min

Cutting Feed Speed

1-12000mm/min

Spindle Rotation Speed

20000/15000/12000rpm

Spindle Nose Taper

BT30

Spindle Motor

5.5kw

3 axes Motor

1.5/1.5/2.2(3)kw

Position Precision

±0.003/300mm

Repeat Position Precision

±0.0025mm

Machine Weight

3000kg

Machine Size

2300x2900x2500mm

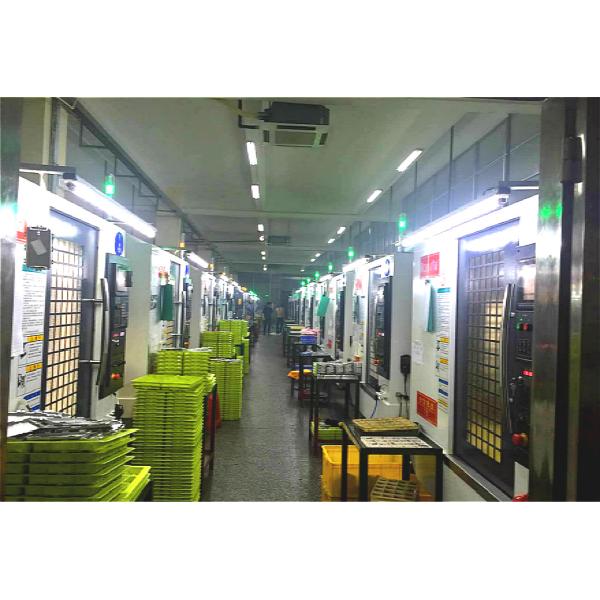

3 Axis CNC Vertical Machining Center Customer's Plant:
