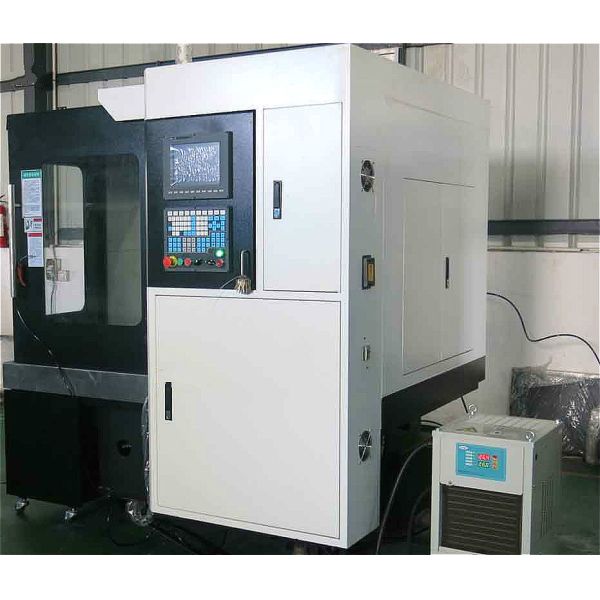

High Precision Taiwan CNC 3 Axis Engraver Machine Long Term Worklife Span
High Precision Taiwan CNC 3 Axis Engraver Machine Long Term Worklife Span
Specifications
Brand Name :
Taesin
Model Number :
TXC
Certification :
ISO CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
TT LC
Supply Ability :
10000 Set Per Year
Delivery Time :
15 Days
Packaging Details :
Plywood Box
Spindle Speed :
24000 RPM
Positioning Accuracy :
0.015/300 mm
XYZ Fast Traverse Rate :
10m per min
Cutting Feed Rate :
1 - 8000 mm/min
Name :
CNC Engraving Machine
Core Parts :
Work Quartz Lamp
Description

High Precision Taiwan CNC 3 Axis Engraver Machine Long Term Worklife Span

Long-term Worklife Span CNC Engraving Machine Core Parts:

1. X/Y/Z Axis: Taiwan “PMI” or “HIWIN” C3 Ball Screw

2. X/Y/Z Axis: Japan 20TAC P4 Bearing

3. X/Y/Z Axis:China JW2 Travel Limit Switch

4. X/Y/Z Axis: Taiwan “PMI” or “HIWIN” High-precision Linear Guide Way

5. Volume Oil Injector

6. Oil Pumping Motor

7. Germany R+W Coupling

8. Work Quartz Lamp

9. X/Y Shield

10. 8T Straight Line Magazine/12T Carousel Magazine

Long-term Worklife Span CNC Engraving Machine Characteristics:

Long-term Worklife Span CNC Engraving Machine has Powerful Cutting Capability with Excellent Precision and Performance Makes Engraving and Milling Easy

Long-term Worklife Span CNC Engraving Machine can provide High Speed, Super Precision and More Reliable Structure; High rigidity, Super Efficient, High Torque and Heavy Cut Features; Make Full Use of Higher Productivity and Precision Processing;

Spindle Transmission System: Servo Motor Direct Transmission to High-precision Spindle; Higher Transmission Efficiency, Lower Noise and Vibration;

Continuous Output Power for Higher Processing Efficiency; Specially-designed Spindle from Taiwan

Long-term Worklife Span CNC Engraving Machine Technical Data:

Technical Data TXC-540 TXC-650 TXC-870
X/Y/Z Axis Travel mm 500/400/180 600/500/250 780/680/330
Working Table Size mm 400*450 500*600 700*800
Max Load (KG) 150 250 300
Distance Between Column (mm) 480 750 760
Spindle Tool to Working Table mm 100-280 150-400 140-490
T-slot 5-15*90 5-18*85 5-18*85
Rapid Traverse Speed m/min 10 10 10
Cutting Feed Rate mm/minute 1-8000 1-8000 1-8000
Spindle Motor KW 3.2 5.5 7.5
Spindle Speed rpm 24000 24000 24000
Positioning Accuracy mm ±0.015/300 ±0.015/300 ±0.015/300
Repeated Positioning Accuracy ± 0.01mm ± 0.01mm ± 0.01mm
Weight kg 2000 2800 3500
Size mm 1800*1800*2350 2000*1850*2550 2600*2100*2600
