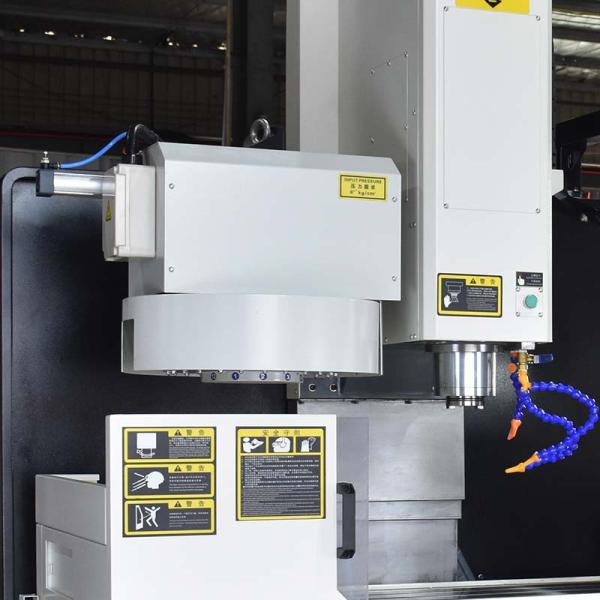

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine
BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine
BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine
BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine
Specifications
Brand Name :
Bodsee
Model Number :
CNC-950GM
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30set/month
Delivery Time :
Negotiation
Packaging Details :
Wooden Package
Distance from spindle center to column guideway :
580mm
The number of the slider in the X axis :
6 pieces
Taper of spindle hole :
BT40
The maximum load capacity :
400KG
The Spacing of grooves :
90mm
Positioning accuracy :
0.01mm
Description

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC VMC Machine

Product Description:

CNC-950GM CNC machining center's comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.

1. High efficient annealing treatments relieves internal stress to ensure the lasting best rigidity and high precision.

2. Taiwan ATC, umbrella type or disc type are available;

3. High rigidity and high stability.

4. Assembled with solid and stable large casting bed base can guarantee the workpiece’s accuracy.

Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine

Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine

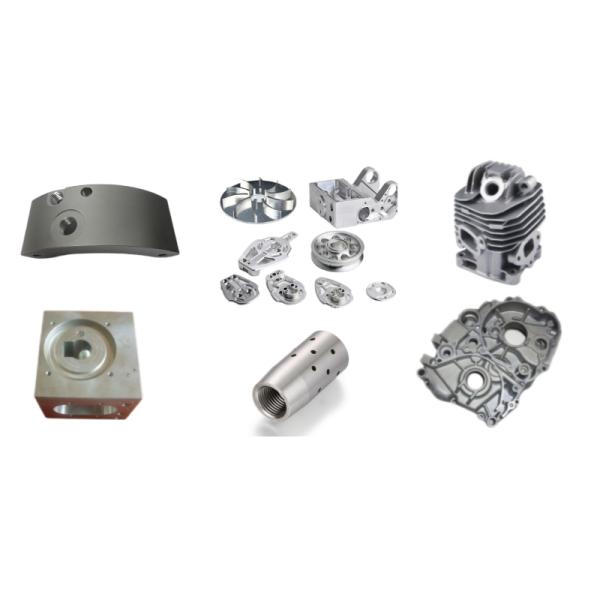

Workpiece Samples:

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine

Our Exhibition:

BT40 Spindle 3 Axis CNC Milling Machine 500mm Z Axis Travel CNC And VMC Machine

FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What is your lead time?

It depends on customers’ requirement and quantity.

5. What is the MOQ?

MOQ is 1 set.
