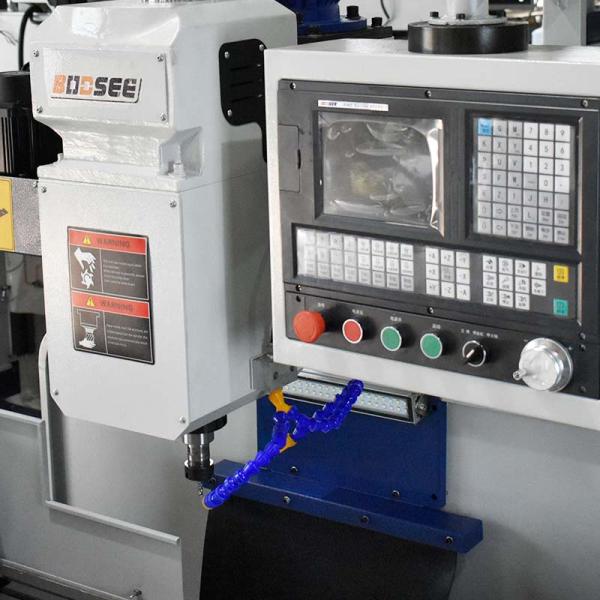

3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity
3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity
3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity
3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity
Specifications
Brand Name :
Bodsee
Model Number :
CNC-M4S
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30set/month
Delivery Time :
Negotiation
Packaging Details :
Wooden Package
Item :
CNC-M4S 3 Axis Milling Machine
Cooling Motor :
0.15kw
Electric Capacity :
7KVA
The maximum load capacity :
350KG
Y axis travel :
340(360)mm
Description

Heavy Cutting Has Strong Rigidity 3 Axis CNC Milling Machine VMC Machine Center

Product Features:

1. High strength resin sand casting

2. It can install 4th axis and install 5th axis

3. Precision casting, precision machining, precision assembly

4. High speed, high precision, good surface finishing

Product Specification:

Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg

3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity

Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity

3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity

Product Description:

CNC VMC is composed of mechanical equipment and numerical control system., it is an automated machine that is suitable for efficient machining of complex parts.

Workpiece Samples:

3 Axis CNC VMC Machine Center Heavy Cutting Has Strong Rigidity

FAQ:

How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.

What's your main products of your company?

A: We specialized in CNC Milling Machine, VMC Machine.

Where is our factory located? How can I visit there?

A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.

What is your delivery time ?

A: The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.

What's the MOQ?

A: 1 set.
