High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal
High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal
High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal
High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal
Specifications
Brand Name :
Bodsee
Model Number :
CNC-950GM
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30set/month
Delivery Time :
Negotiation
Packaging Details :
Wooden Package
Distance from spindle center to column guideway :
580mm
The number of the slider in the X axis :
6 pieces
Spindle speed range :
20-8000rpm/min
The spindle of output power :
5.5KW
The maximum load capacity :
400KG
Positioning accuracy :
0.01mm
Description

High Rigidity Heavy Cutting 12pieces Tool Capacity CNC VMC Machine For Metal

Product Description:

CNC-950GM CNC Vertical Machining is the world's highest yield, the most widely used one of the CNC machine tools. it can be finished in a clamping continuous milling, drilling, expansion, reaming, boring, tapping and two-dimensional three-dimensional curved surface, precise machining of the inclined plane, processing to realize programmed, shorten the production cycle, thus to make the good economic benefits.

1. Resin sand casting;

2. X, Y, Z rails adopt stainless steel telescopic cover;

3. Taiwan pneumatic cylinder;

4. Taiwan ATC, umbrella type or disc type are available;

6. Rigid tapping.

Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG

High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal

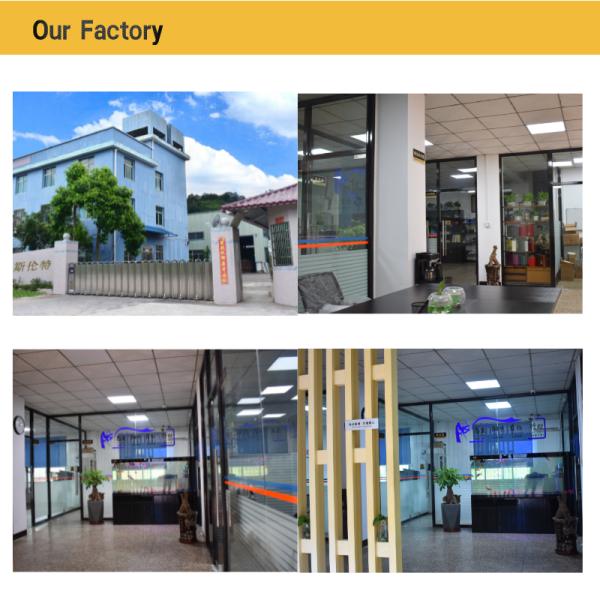

Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal

High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal

Workpiece Samples:

High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal

Our Exhibition:

High Rigidity Heavy Cutting VMC CNC Machine 12 Pieces Tool Capacity For Metal

FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What is your lead time?

It depends on customers’ requirement and quantity.

5. What is the MOQ?

MOQ is 1 set.
