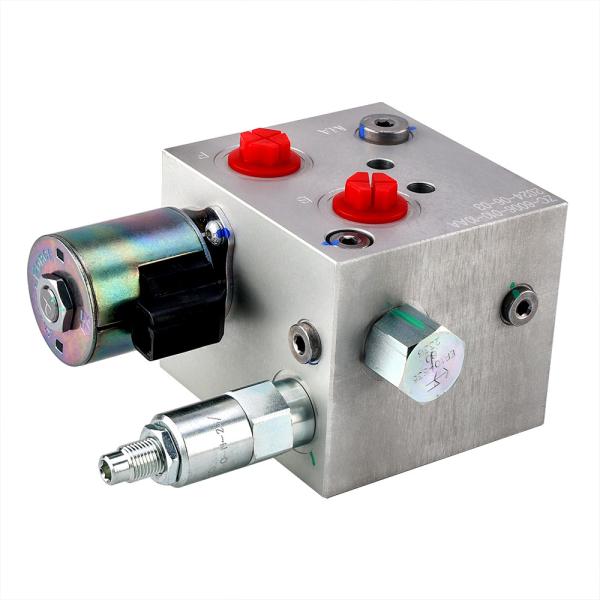

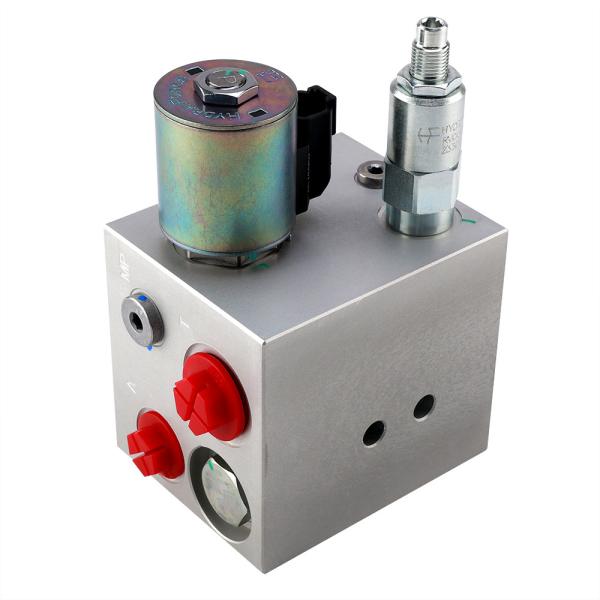

Manifold Hydraulic Valve Aluminum 7075 Hydraulic Reversing Valve Hydraulic Motor Control Valve

Hydraulic manifold blocks stand as essential components in the intricate framework of hydraulic systems, serving as the nerve center for managing the circulation of hydraulic fluids. Crafted from robust materials such as aluminum, steel, or cast iron, these blocks are designed to endure elevated

pressures and rugged environmental challenges.

Distinctive Characteristics of Hydraulic Manifold Blocks:

Hub of Operations: These blocks act as a central hub for integrating all control valves, streamlining the system’s design and minimizing the complexity of fluid channels.

Tailored Design: Hydraulic manifold blocks can be meticulously designed to cater to unique application requirements, ensuring an optimized solution that enhances overall system performance.

Space-Efficiency: By consolidating multiple valves into one unit, these blocks conserve valuable space and decrease the dependency on extensive tubing.

Minimized Leak Risks: The integration of valves within the manifold block significantly cuts down on potential leak sources, thereby boosting system integrity.

Robust Material Selection: The materials used in manifold blocks guarantee longevity and resistance to degradation, even under severe operational stresses.

Core Functions of Hydraulic Manifold Blocks:

Fluid Routing: Manifold blocks are responsible for channeling hydraulic fluid to the various system components, ensuring each receives the necessary flow.

Pressure Management: They are equipped with pressure relief valves to safeguard the system against excessive pressure, thus maintaining stable operating conditions.

Flow Direction Management: These blocks contain directional control valves that dictate the fluid’s path, manipulating the movement of actuators and other hydraulic mechanisms.

Multi-Function Valve Integration: Manifold blocks are capable of incorporating diverse valve functionalities, such as check, sequence, and bleed valves, into a compact layout.

Advanced Circuitry: They facilitate the incorporation of complex control circuits, allowing for refined system operations and nuanced control capabilities.

Varying Applications of Hydraulic Manifold Blocks:

Advanced Manufacturing: These blocks are extensively utilized in sophisticated manufacturing equipment, including robotics and automated assembly lines, for exacting control.

Heavy Machinery: In the realm of earthmoving equipment like excavators and cranes, manifold blocks are vital for the intricate hydraulic systems that drive these heavy-duty machines.

Automotive Hydraulics: Integral to vehicle hydraulic systems, manifold blocks are found in applications such as braking, clutching, and power steering.

Aerospace and Military: In both aircraft and military vehicles, these blocks are relied upon for the steadfast control of hydraulic operations.

Maritime Systems: They play a pivotal role in maritime control systems for ships and offshore platforms, ensuring smooth operations.

Energy Sector: In the oil and gas domain, manifold blocks are employed in hydraulic fracturing, drilling, and pipeline control systems, among others.

Hydraulic manifold blocks are pivotal to the functionality of hydraulic systems, offering a blend of robustness, efficiency, and adaptability that is indispensable across a broad spectrum of sectors.
