1/8-27NPTF 7/8 Taper Socket Plug Cold Forging CNC Machining
1/8-27NPTF 7/8 Taper Socket Plug Cold Forging CNC Machining
Specifications
Place of Origin :
China
MOQ :
According to the request of the guest
Price :
USD
Payment Terms :
T/T
Supply Ability :
100,000pcs per month
Delivery Time :
30-35days
Packaging Details :
carton packing
Product name :
1/8"-27NPTF 7/8 Taper Socket Plug
Material :
steel ,nylonor custom
Quality :
high quality
Certification :
ISO9001 IATF16949
Processing :
Cold forging, CNC Machining
colour :
black
Appearance :
Bright neat body, without any burrs
Finish :
Black Oxide
Description

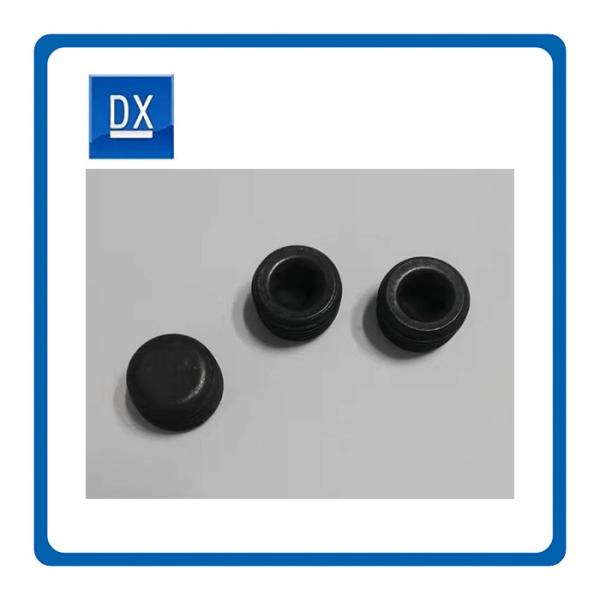

1/8"-27NPTF 7/8 Taper Socket Plug

Description

1/8"-27NPTF 7/8 Taper Socket Plug

No.DX142 inch taper plug oil plug

Accept custom sizes

1/8"-27NPTF 7/8 Taper Socket Plug

The No.DX142

Nominal size:1/8"

D:4.05mm

Material:Heat treated alloy steel

Accept custom sizes

Material Options:

alloy steel

Stainless

Brass

carbon steel

Details are as follows

Manufacturer: DEXUN
Code: DX142
Product:

Th1/8"Steel Oil Plug

No.DX142

Diameter:4.05mm
Bolt Head-/Nut Design: hexagon
Length : 3mm
Material: Heat treated alloy steel
Outer thread [mm]: 1/8"-27NPTF 7/8 Taper Socket Plug
Surface: black oxide
Weight g 2.6g

1/8

Questions:

1. Q: Are you a factory or a trading company?

A: We have our own factory and professional sales team.

2. Q: Can you provide free sample?

A: Standard existing sample for free; customized sample, we will charge sample fee and refund the sample fee once format order confirmed.

3. Q: What's your MOQ?

A: 1pc for stocked items, flexible MOQ for each customized design.

4. Q: What products do you mainly supply?

A: Standard and custom made items.

5. Q: What is your delivery time?

A: Around 3-4 days after payment for standard stock items; around 15-25 days after payment for customized order. The specific lead time depends on the products & quantity.

6. Q: What’s your delivery method?

A: Any delivery method is available and supported. We can delivery by air-express, air cargo and by sea according to the order quantity or as customer required.

7. Q: Which port will you ship the goods ?

A: Normally Ningbo or Shanghai, China port. Other ports can be available.

Specification as shown below: Below sizes threaded plug steel are available 1/8 In ; 1/4 In ; 3/8 In ; 1/2 In ; 3/4 In ; 1 In ; 1-1/4 In ; 1-1/2 In ; 2 In ; 2-1/2 In ; 3 In ; 4 In Below surface treatment of threaded plug steel is available CR3+ ZINC PLATING,... We have the best Oil Pan plugs for the right price. Wide range and large quantity in stock to ensure fast delivery. Both standard & customized type are OK. Especially,

we have over 14 years experience on manufacturing oil pan bolt. Good quality and competitive price can be ensured at the same time. Pls not hesitate to call me for detail, if any oil pan bolt is in need.

Below is brief introduction about our oil pan bolt series. For specific item details, pls contact me. Thank you!

Specification As Shown Below:

T S B L d2 t Wt.
mm inch mm mm mm mm mm g
M10*1 - R1/8" 7 8 12.5 - - 5.7
M12*1.5 - - 7 10 15 - - 9.1
- - R1/4" 9 10 15 - - 12.0
M14*1.5 - - 9 10 15 - - 13.2
M16*1.5 - - 10 10 16 - - 17.9
- - R3/8" 10 10 16 - - 19.4
M18*1.5 - - 10 10 16 - - 21.9
M20*1.5 - - 13 10 17 12 6 25
- - R1/2" 13 10 17 12 6 27.2
M22*1.5 - - 13 10 17 14 6 29.0
M24*1.5 - - 17 12 20 16 7 43.8
M26*1.5 - - 17 12 20 16 7 50.9
- M27*2 R3/4" 17 12 20 16 7 51.8
M30*1.5 M30*2 - 19 12 22 20 7 69.4
- M33*2 R1"A 19 12 22 23 7 76.2
M36*1.5 M36*2 - 24 15 27 26 10 118
M38*1.5 - - 24 15 27 28 10 125
- M39*2 - 24 15 27 28 10 130
M42*1.5 M42*2 R1 1/4" 24 18 30 32 13 151
M45*1.5 M45*2 - 24 18 30 35 13 163
M48*1.5 M48*2 R1 1/2" 30 20 35 38 15 230
M52*1.5 M52*2 - 30 20 35 42 15 249
- M56*2 - 30 22 37 46 17 275
- M60*2 - 30 22 37 50 17 296

factory:

1/8


Factory:

1/8

*Our company is a company engaged in the development, production and distribution of various types of fasteners and hydraulic accessories. *Fastener products are widely used in automobiles, motorcycles, rail passenger cars, ships, machinery and equipment, electronic appliances and other fields.

*Used in all kinds of hydraulic machinery such as oil cylinder, pump oil, hydraulic valve, hydraulic station, diesel engine, etc.

*In addition to high-quality carbon steel and alloy steel, the production materials include 304, 316, 410 and other high-quality stainless steel. Mainly produces GB, JIS, BS, DIN, ANSI, NF, JB, JQ, JQ / ZQ and other domestic and foreign standard bolts, self-tapping screws, hexagon flange drill screws, lock nuts, pins, retaining rings, keys , Hydraulic joints, various oil plugs, oil plugs and other products. Our factory has strong technical force and exquisite craftsmanship.
