Milling and engraving CNC machines allow to realize any of your ideas. All you need is to prepare a model / vector in the program and submit the job to the machine , the rest themselves .

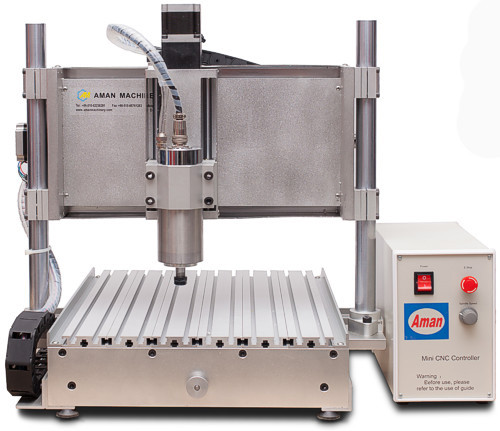

AMAN 3040 4axis 200W Z + - is a professional machine with table size 300 x 400 mm, is a modification of 3040 4axis 800W.

The main distinguishing feature of the base model 3040 4axis 800W - extended adjustment range on the axis Z. This allows full use of the rotator ( milled products of large diameter ) , as well as sharpen deep reliefs and make processing requiring margin axis Z.

As a basic model , has the most powerful ruler in the spindle and AMAN full four axes : XYZ + A- rotator . The spindle has a water cooling - it provides reliability and long service life.

The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment ( three-dimensional objects , reliefs, souvenirs, cliche ) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types of cutting (letters and labels , signs , models ) , drilling .

The main types of treatment :

etching
cutting
3d- milling
boring
milling and engraving on a rotating axis.

Allows you to handle :

tree
plastic
orsteklo
Chipboard, MDF , plywood
light metals (copper, aluminum , brass)
and the like .

Main areas of application :

advertising industry
creative workshops
jewelry / designer items
merchandise
interior and decor elements

To control the machine will need a computer with LPT-port and the operating system Windows XP.

technical characteristics
Working field size 300 x 400 x 130 mm (depth adjustable)
4 axles (XYZ + A-steering axle)
Spindle power, W / Collet 800W, water-cooled, ER11
Resolution, 0.0125 mm
Maximum speed (work / feed, mm / min) 2000/3000
Spindle speed (rev / min) to 24000
Management system Mach3 interface, Windows 2000/XP
Compatible software MACH3, ARTCAM, TYPE 3, UCANCAM, KCAM etc.
Power supply 220V ± 10% 50HZ
Dimensions (mm) / Weight (kg) 520x600x530/60
