High Configuration CNC Optical Video Measuring Machine
Accuracy :
2.5um
Velocity :
200mm/s
Function :
Measuring and detect
General use :
Electrics,plastics,mold,machinery,connectors and mobile
Color :
White
Power :
220V /50HZ
Description

Metal Workpiece 3D CNC vision inspection machine cmm machine optical vision inspection machine

Product Description

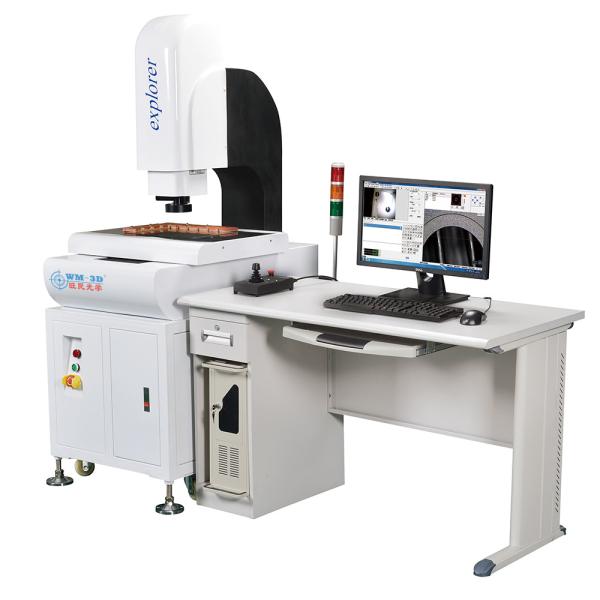

3D Optical CMM Coordinate Measuring Machine 2.5um Accuracy 200mm/S

1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
5. With marble platform, high stability.
3D Optical CMM Coordinate Measuring Machine 2.5um Accuracy 200mm/S

Model

CNC-3020H

Glass table Size

330*230

Metal table Size

350*250

Working travel X.Y

300*200

Z-axis travel lift(mm)

200 focus

X.Y.Z-axis digital display resolution

0.5um

X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)

Weight(kg)

300

Dimession

750*850*1650

Motor

Three axis velocity

300mm/s

Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera

Zoom

coaxial optical zoom lens with a zoom lens (2 select one)

Zoom magnification

0.7-4.5X

Video total magnification

30-230X

Objector field

11.1-1.7mm

Power

AC220V/AC110V

Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X

Add lens

Video magnification

Material side field(mm)

Video magnification

Material side field(mm)

0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36
Functions

3D Optical CMM Coordinate Measuring Machine 2.5um Accuracy 200mm/S
3D Optical CMM Coordinate Measuring Machine 2.5um Accuracy 200mm/SMainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.
Specifications

1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
